Configuration of GCU
3
To configure the controller, please do the instructions that follow:
To enter the configuration mode, push and hold the “STOP” key for at least 3 seconds. The
following screen will appear on the GCU:

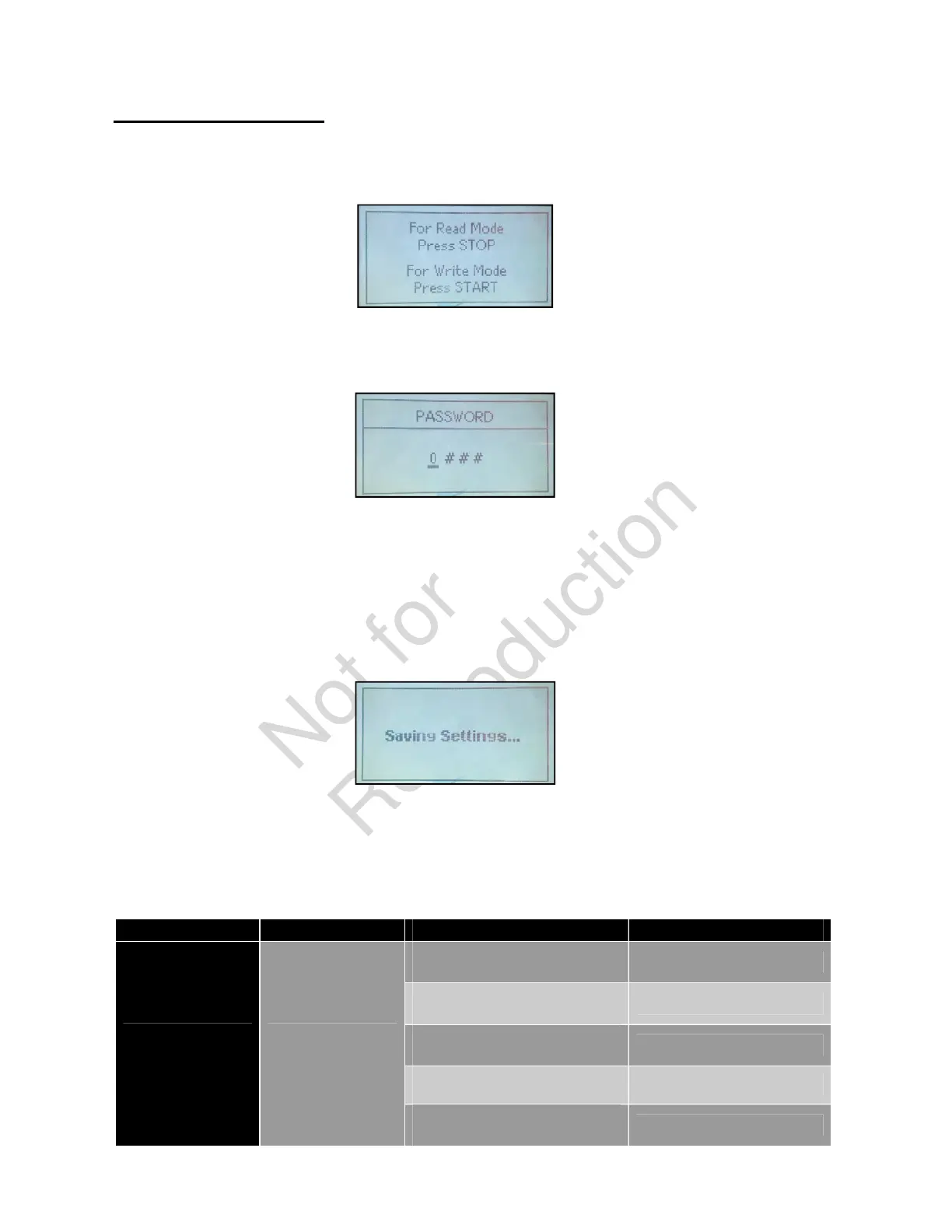

Figure 3: Configuration mode screen
If you want to only view the configuration, push the “STOP” key on the GCU. If you wish to
change the configuration, push the “START” key on the GCU.
Figure 4: Configuration mode authentication page screen
The GCU will ask for a password (0000). Enter the password by using the up & down arrow key
for changing the digit and the “START” key for selecting the digit. The 4 digits will start blinking
individually as each one is selected. Press the “START” button as mentioned earlier to enter the
correct digit.
After completion of the parameter configuration, push and hold the “STOP” key to exit from
configuration mode. Before exiting from the configuration mode the controller will show the
following screen:
Figure 5: Saving settings screen
List of Parameters
3.1
The table that follows gives a brief overview of configurable parameters in GC1031 controller.
Table 4: Parameters
Level 0 Level 1 (On screen) Level 2 (On screen) Parameters (On screen)
Module
(MODULE)
General
(GENERAL)
* Power On Mode
(POWER ON MODE)
Manual/Auto
* Power On Lamp Test
(POWER ON LAMP TEST)
Disable/Enable
Load Histogram
(LOAD HISTOGRAM)
Disable/Enable
Auto-Clear Warning Alarm
(WARNING AUTO CLEAR)
Disable/Enable
Language
(LANGUAGE)
English
To Next Page
