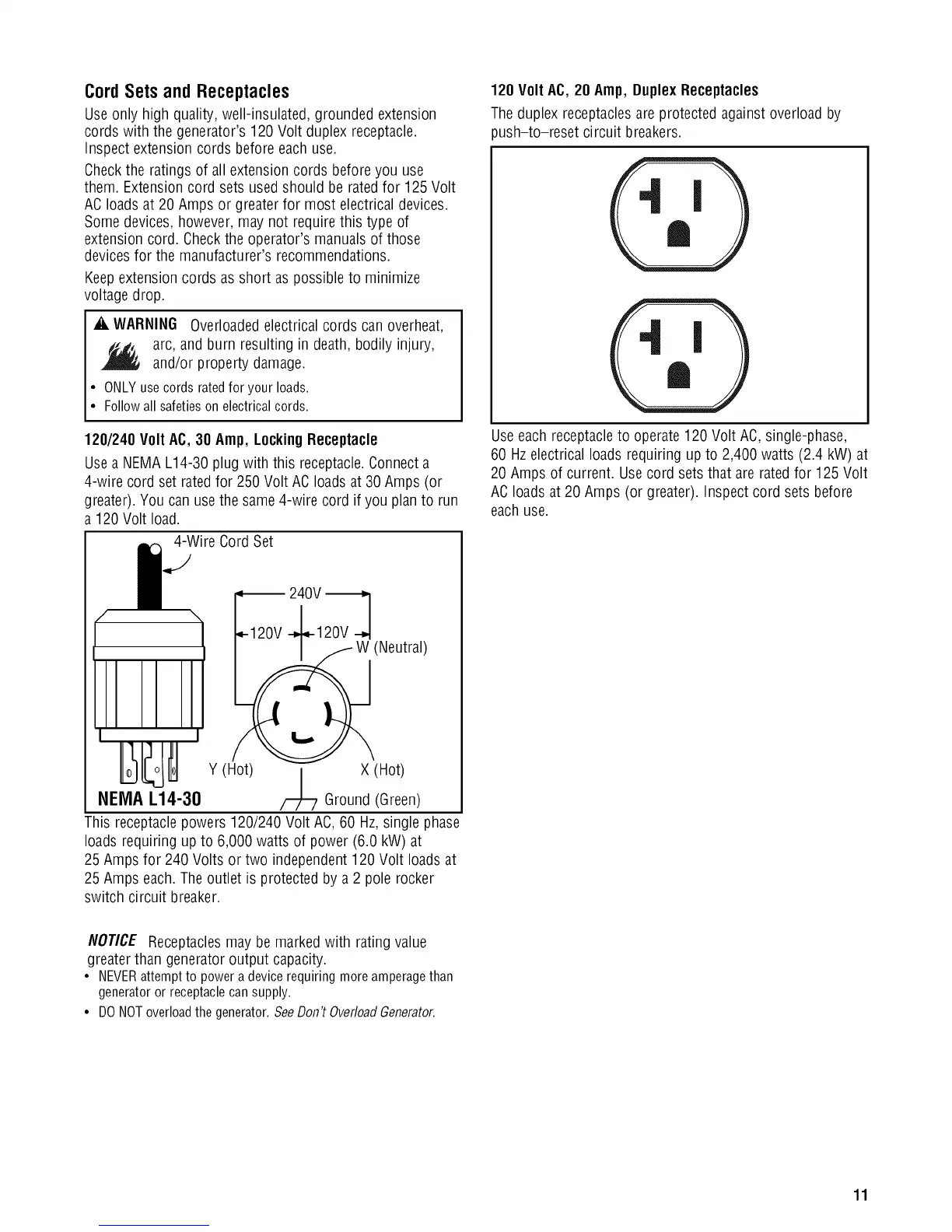

CordSetsandReceptacles
Use only high quality, well-insulated, grounded extension
cords with the generator's 120 Volt duplex receptacle.
Inspect extension cords before each use.
Checkthe ratings of all extensioncords beforeyou use
them. Extensioncord sets usedshould be ratedfor 125 Volt
ACloads at 20 Amps or greaterfor most electrical devices.
Somedevices, however, may not require this type of
extension cord. Checkthe operator's manuals of those
devicesfor the manufacturer's recommendations.
Keepextension cords as short aspossible to minimize
voltage drop.
_k WARNING Overloadedelectrical cords can overheat,
arc, and burn resulting in death, bodily injury,
and/or property damage.
• ONLYusecordsratedfor yourloads.
• Followallsafetiesonelectricalcords.
120/240 Volt AC,30 Amp, LockingReceptacle
Use a NEIVIAL14-30 plug with this receptacle.Connecta
4-wire cord set rated for 250 Volt AC loadsat 30 Amps (or
greater). You can usethe same4-wire cord if you planto run
a 120 Volt load.
4-Wire CordSet
__11
_240V-_
_-120V
W(Neutral)
120 Volt AC, 20 Amp, DuplexReceptacles
Theduplex receptaclesare protected against overload by
push-to-reset circuit breakers.
Useeachreceptacleto operate120 Volt AC, single-phase,
60 Hz electricalloads requiring up to 2,400 watts (2.4 kW) at
20 Amps of current. Usecord setsthat are ratedfor 125 Volt
ACloads at 20 Amps (or greater). Inspect cord sets before
eachuse.
Y (Hot) | X (Hot)
NEMA L14-30 /-7L7 Ground (Green)
This receptaclepowers 120/240 Volt AC, 60 Hz, single phase
loads requiring up to 6,000 watts of power (6.0 kW) at
25 Amps for 240 Volts or two independent120 Volt loads at
25 Amps each.The outlet is protected by a 2 pole rocker
switch circuit breaker.
NOTICE Receptacles may be marked with rating value
greater than generator output capacity.
• NEVERattempt to power a device requiring more amperagethan
generator or receptaclecan supply.
• DONOToverloadthe generator. SeeDon't OverloadGenerator.
11
