25

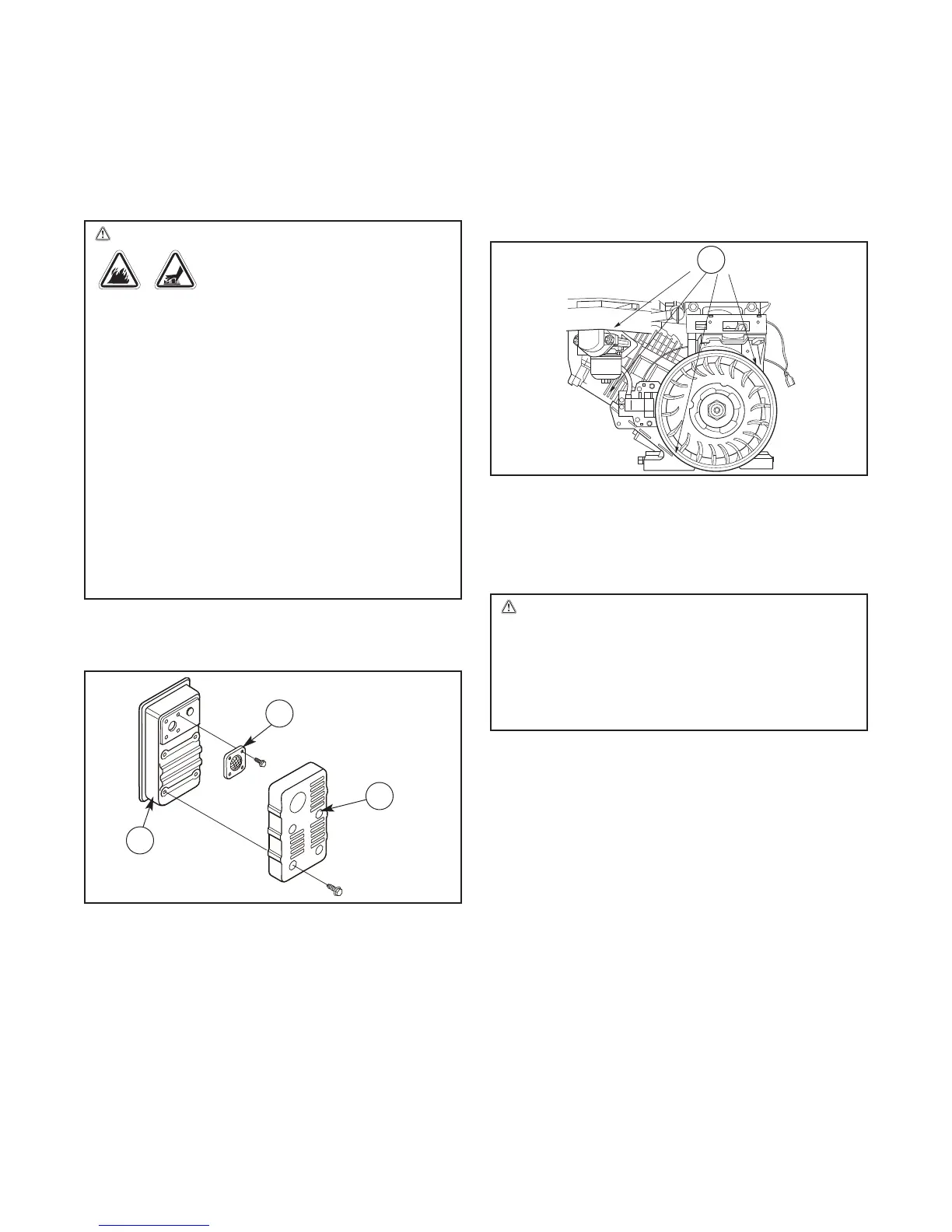

Inspect Muffler and Spark Arrester
The engine exhaust muffler has a spark arrester screen.
Inspect the muffler for cracks, corrosion, or other damage.
Inspect spark arrester screen for damage or carbon blockage.
Clean if carbon blockage is found or replace if damaged. If
replacement parts are required, make sure to use only
original equipment replacement parts.
Clean or replace spark arrester as follows:
1. Remove four screws that connect heat shield (A) to
muffler (B).
2. Remove four screws that attach spark arrester screen (C).
3. Obtain a replacement screen if torn, perforated or
otherwise damaged. DO NOT use a defective screen. If
screen is not damaged, clean it with commercial
solvent.
4. Reattach screen and muffler guard.
Clean Cooling System
Over time debris may accumulate in cylinder cooling fins and
cannot be observed without partial engine disassembly. For
this reason, we recommend you have a Briggs & Stratton
authorized dealer clean the cooling system (D) per
recommended intervals (see Maintenance Schedule in the
Maintenance section). Equally important is to keep top of
engine free from debris. Also see Cleaning.
Carburetor Adjustment
The carburetor on this engine is low emission. It is equipped
with a non-adjustable idle mixture valve. Top speed has been
set at the factory. If adjustment is required, see a Briggs &
Stratton authorized dealer.
CAUTION Excessively high operating speeds could
result in minor injury.
Excessively low operating speeds impose a heavy load.
• DO NOT tamper with governor spring, links or other parts to
increase engine speed. Generator supplies correct rated
frequency and voltage when running at governed speed.
• DO NOT modify generator in any way.
A
B
C
D
WARNING Exhaust heat/gases could ignite
combustibles, structures or damage fuel
tank causing a fire, resulting in death or
serious injury.
Contact with muffler area could cause burns resulting in
serious injury.
• DO NOT touch hot parts and AVOID hot exhaust gases.
• Allow equipment to cool before touching.
• Keep at least 5 feet (1.5 m) of clearance on all sides of
generator including overhead.
• It is a violation of California Public Resource Code, Section
4442, to use or operate the engine on any forest-covered,
brush-covered, or grass-covered land unless the exhaust
system is equipped with a spark arrester, as defined in Section
4442, maintained in effective working order. Other states or
federal jurisdictions may have similar laws.
Contact the original equipment manufacturer, retailer, or dealer
to obtain a spark arrester designed for the exhaust system
installed on this engine.
• Replacement parts must be the same and installed in the same
position as the original parts.
