Assembly
Read entire operator’s manual before you attempt
to assemble or operate your new generator.
Your generator requires some assembly and is ready for use
after it has been properly serviced with the recommended
fuel and oil level is verified.
If you have any problems with the assembly of your generator,
please call the generator helpline at (800) 743-4115. If calling
for assistance, please have the model, revision, and serial
number from the identification label available. See generator
Features and Controls for identification label location.
Unpack Generator
1. Set the carton on a rigid, flat surface.
2. Remove everything from carton except generator.
3. Open carton completely by cutting each corner from
top to bottom.
4. Leave generator on carton to install wheel kit.
The generator is supplied with:
• Operator’s manual
• 25 ft. (7.6 m) Accessory cord
• Wheel kit
Install Wheel Kit
NOTICE Wheel kit is not intended for over-the-road use.
Install the wheel kit as follows:

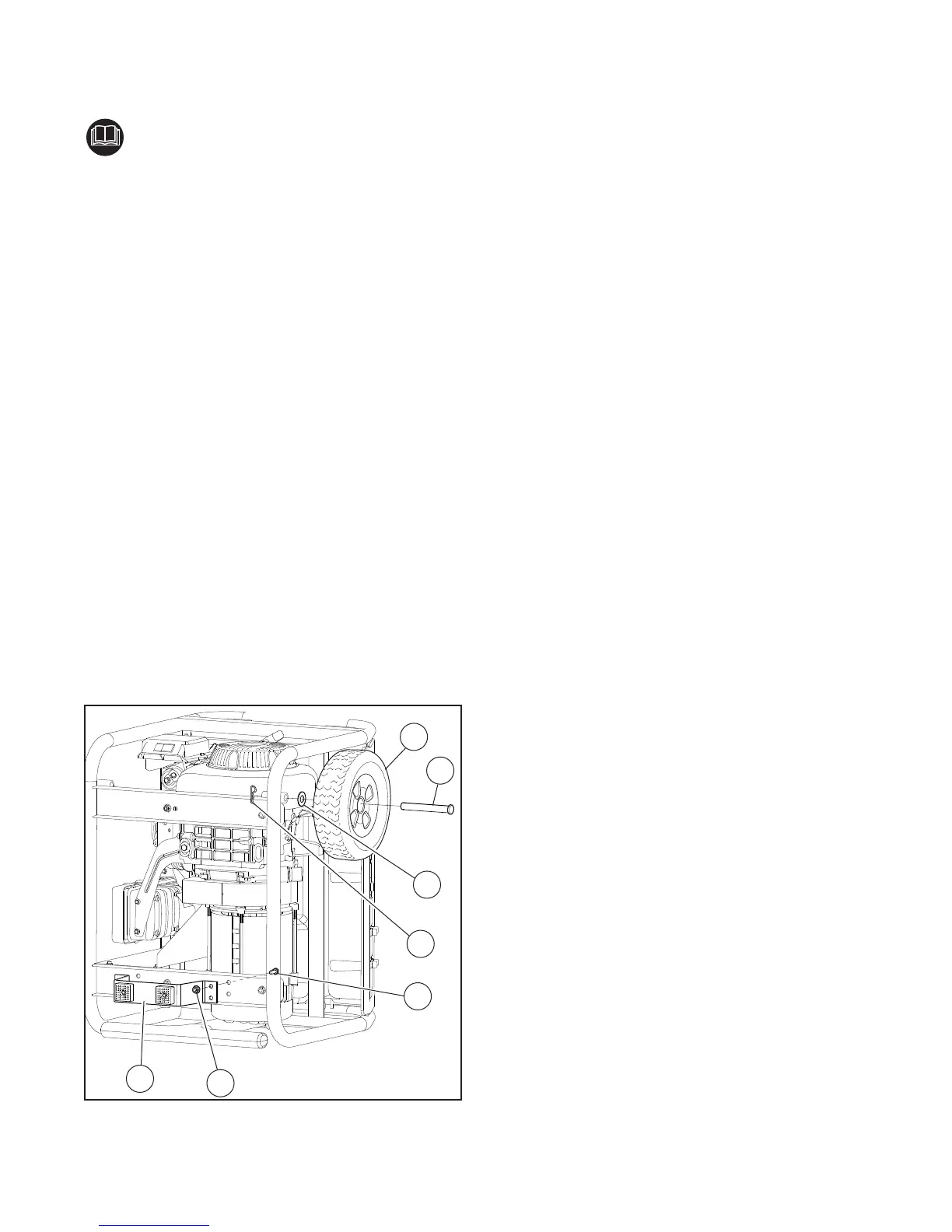

1. Tip generator so that engine end is up.
2. Slide a wheel (A) over axle stud (B).
NOTICE Be sure to install wheel with raised hub inboard.
3. Slide a washer (C) over axle stud (B).
4. Slide axle stud (B) through mounting bracket.
5. Insert retaining pin (D) through hole on axle stud.
6. Repeat steps 2 thru 5 to secure second wheel.
7. Line up holes in support leg (E) with holes in generator
frame.
8. Attach support leg using four capscrews (F) and four
flange nuts (G). Tighten with 10 and 13 mm wrenches.
9. Return generator to normal operating position (resting
on wheels and support leg).
Verify Engine Oil Level
The generator engine is shipped from the factory filled with
oil (API SJ or higher 10W-30). This allows for generator
operation in the widest range of temperature and climate
conditions. Before starting the engine, check oil level and
ensure that engine is serviced as described in Maintenance.
NOTICE Any attempt to crank or start the engine before it
has been properly filled with the recommended oil could
result in equipment failure.
• Refer to Maintenance for oil fill information.
• Damage to equipment resulting from failure to follow this
instruction will void warranty.
NOTICE See Oil in the Maintenance section to review oil
recomendations. Verify provided oil in engine is the correct
viscosity for current ambient temperature.
D
A
B
C
G
E
F
