Edit Output port tags

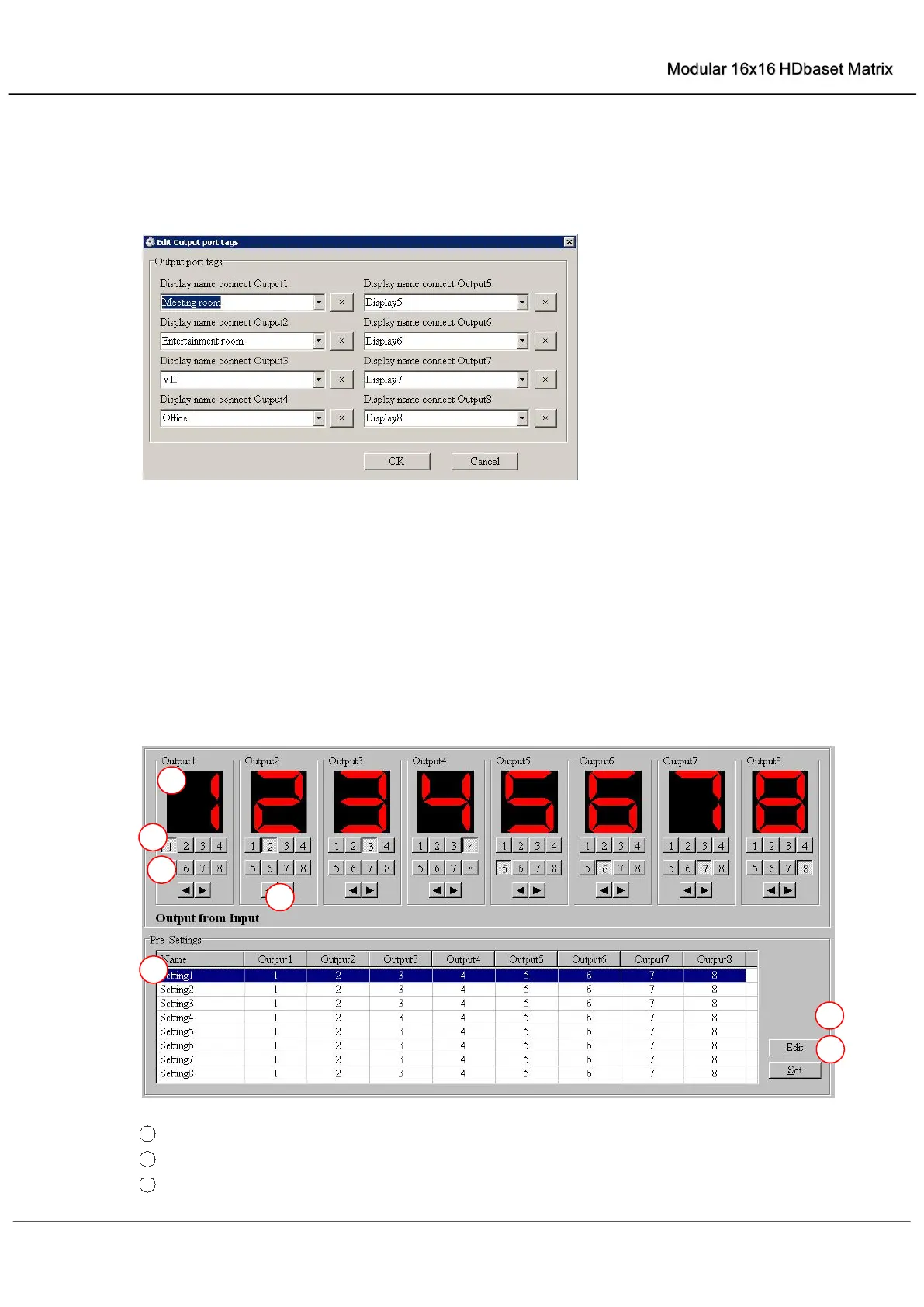

After action of ④, edit form will pop-up as below:
Define tags for respective Output port, then displays connect the Output ports can be easily
remembered.
Click buttons with “×” caption to delete tag which is no use any more, if tag is still used by any
other Output port, delete action will be discarded.
“Setting” page
1
LED which displays Input number for respective Output port
2
Click to select Input port for respective Output port
3
Click to select previous or next Input port for respective Output port
6
7
5
4
1
3
2
