Brinkmann ALL IN ONE - Assembly and Parts; Assembly Instructions; Parts List

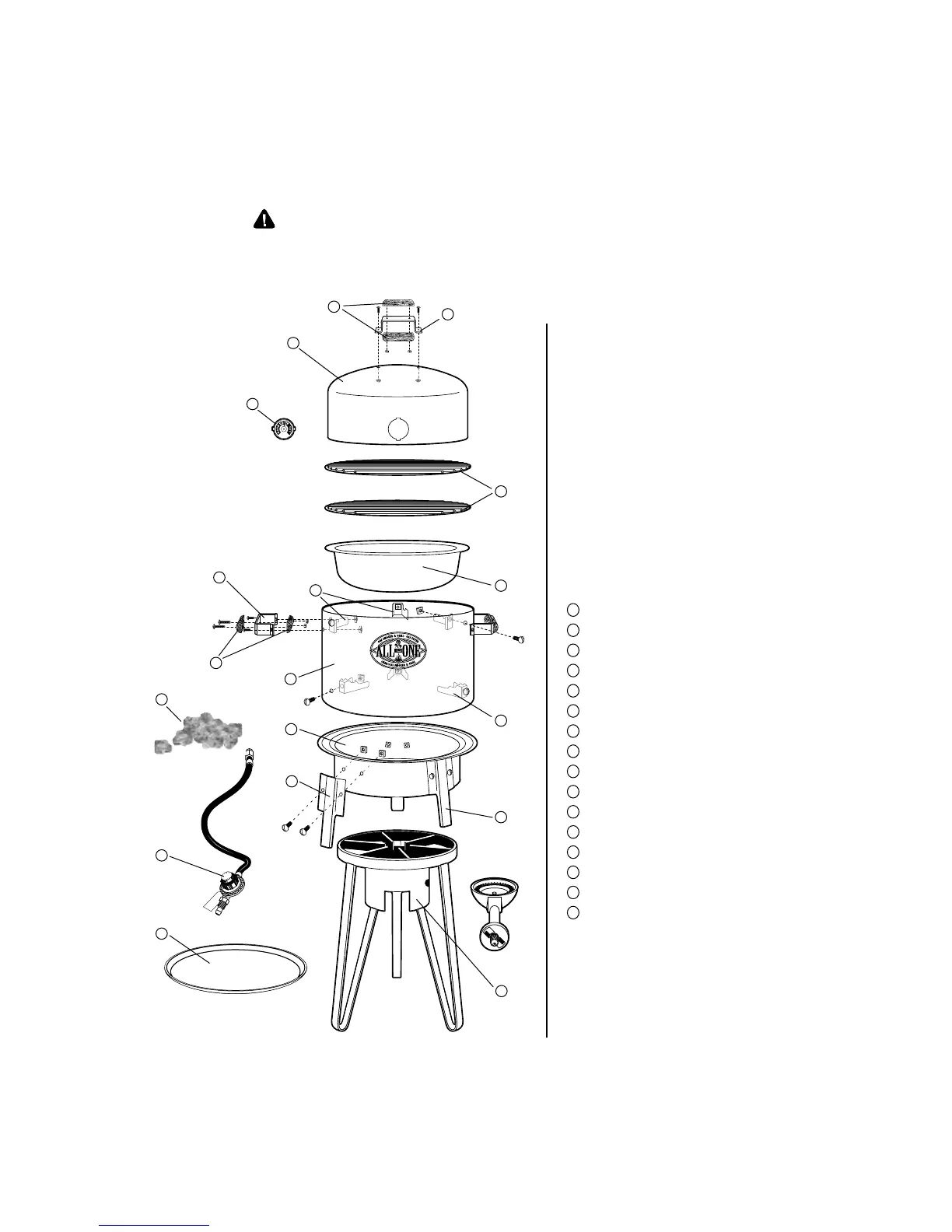

PARTS LIST:
1 Cooker with Burner Assembly
1 Hose and Regulator with Safety Tag
1 Vented Aluminized Base Pan
3 Aluminized Legs/Brackets
1 Smoker Body
1 Dome Lid
2152" Chrome Cooking Grills
1 Water Pan
1 Drip Pan/Ash Guard
3 Metal Brackets for Handles
6 Wooden Handle Halves
1 Heat Indicator
3 Lower Support Brackets (V Clip)
3 Upper Support Brackets (Single Clip)
1 Bag Lava Rocks
18 10-24 x s" Screws and Square Nuts
6 8-32 x w" Screws and Nuts (for Handles)
2
ASSEMBLY INSTRUCTIONS
READ ALL SAFETY WARNINGS & ASSEMBLY INSTRUCTIONS CAREFULLY
BEFORE ASSEMBLING OR OPERATING YOUR COOKER.
FOR MISSING PARTS, PLEASE CALL CUSTOMER SERVICE AT 1-800-527-0717.
(Proof of purchase will be required.)
Inspect contents of the box to ensure all parts are
included and undamaged.
The following tools are required to assemble your
All-In-One:
• Flathead Screwdriver
• Adjustable Wrench
• d" Open End Wrench
• w" Open End Wrench
• f" Open End Wrench
NOTE: An additional adjustable wrench can be
substituted for the open end wrenches.
1
3
2
4
5
6
7
8
9
10
11
12
13
14
