Tools required to assemble your Gourmet Charcoal Smoker and Grill:
• Flathead Screwdriver
• Pliers

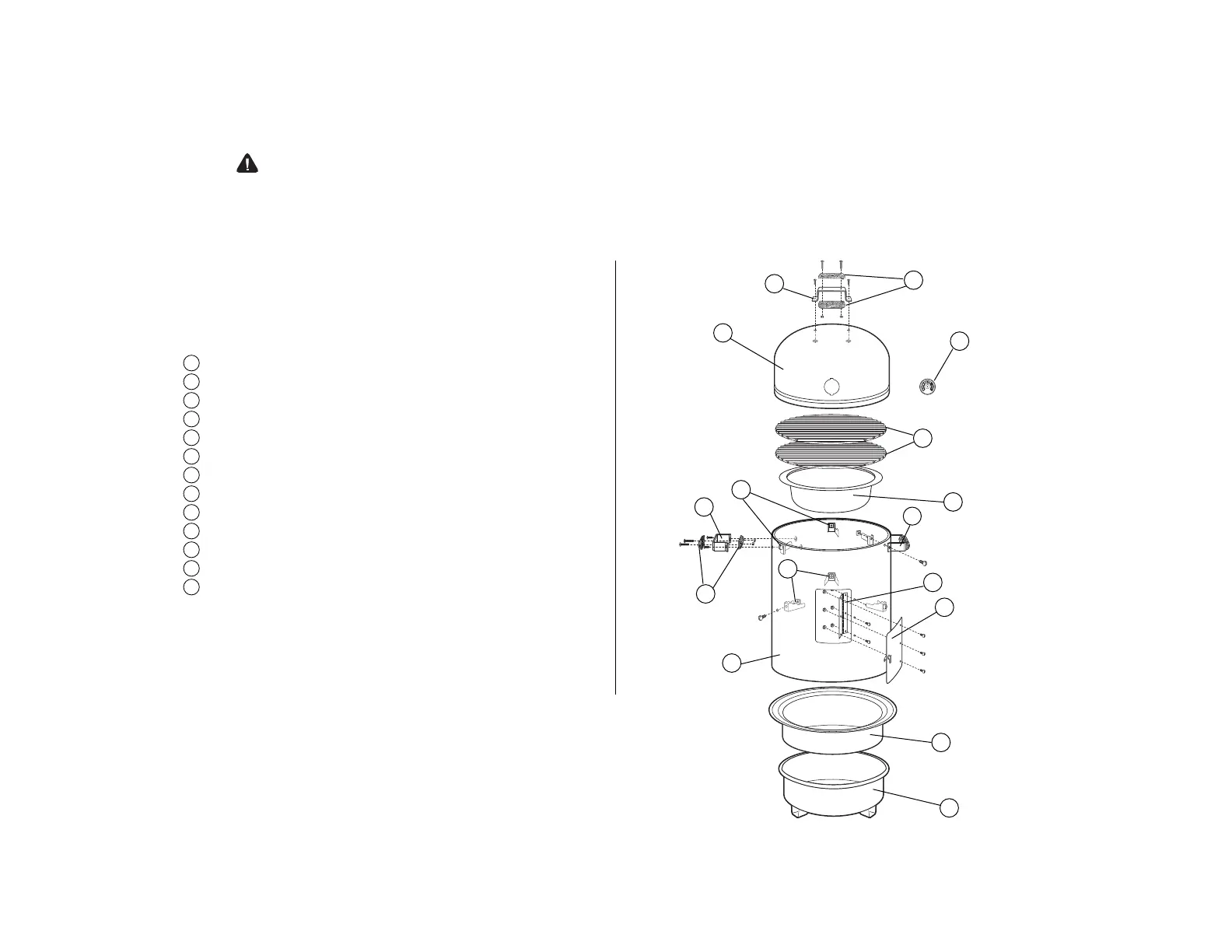

PARTS LIST:
1 Dome Lid
1 Smoker Body
2 39.3 cm (152”) Chrome Cook ing Grills
1 Porcelain Water Pan
1 Base Pan
1 Charcoal Pan
1 Door
1 Door Hinge
3 Metal Brackets for Handles
6 Wooden Handle Halves
3 Upper Support Brackets (Single Clip)
3 Lower Support Brackets (V-Clip)
1 Heat Indicator
12 10-24 x 9.5 mm (s”) Screws and Square Nuts
6 6-32 x 6.3 mm (4”) Screws and Nuts (for Door)
6 8-32 x 19 mm (w”) Screws and Nuts (for Handles)
1 Recipe Booklet
Wood Chunk (sample)
10
9
8
7
6
5
4
3
1
2
11
12
13
4
9
1
3
9
12
9
7
5
6
8
10
10
13
2
11
ASSEMBLY INSTRUCTIONS
READ ALL SAFETY WARNINGS AND ASSEMBLY INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING OR OPERATING YOUR SMOKER.
FOR MISSING PARTS, PLEASE CALL CUSTOMER SERVICE AT 800-527-0717.
(Proof of purchase will be required.)
Inspect contents of the box to ensure all parts are included and undamaged.
CALIFORNIA PROPOSITION 65 WARNING
This product contains chemicals, including lead in the brass of certain component parts, that are
known to the State of California to cause cancer, and birth defects or other reproductive harm.
Wash hands after handling. When used, this product emits fuel combustion chemicals that are known
to the State of California to cause cancer, and birth defects or other reproductive harm.
Follow all instructions in this manual and use only in well ventilated, outdoor area.
