Brinkmann Trailmaster - Step 16: Attach firebox to cooking chamber; Step 17: Attach ash tray bracket to firebox; Step 18: Place cooking chamber charcoal grates

10

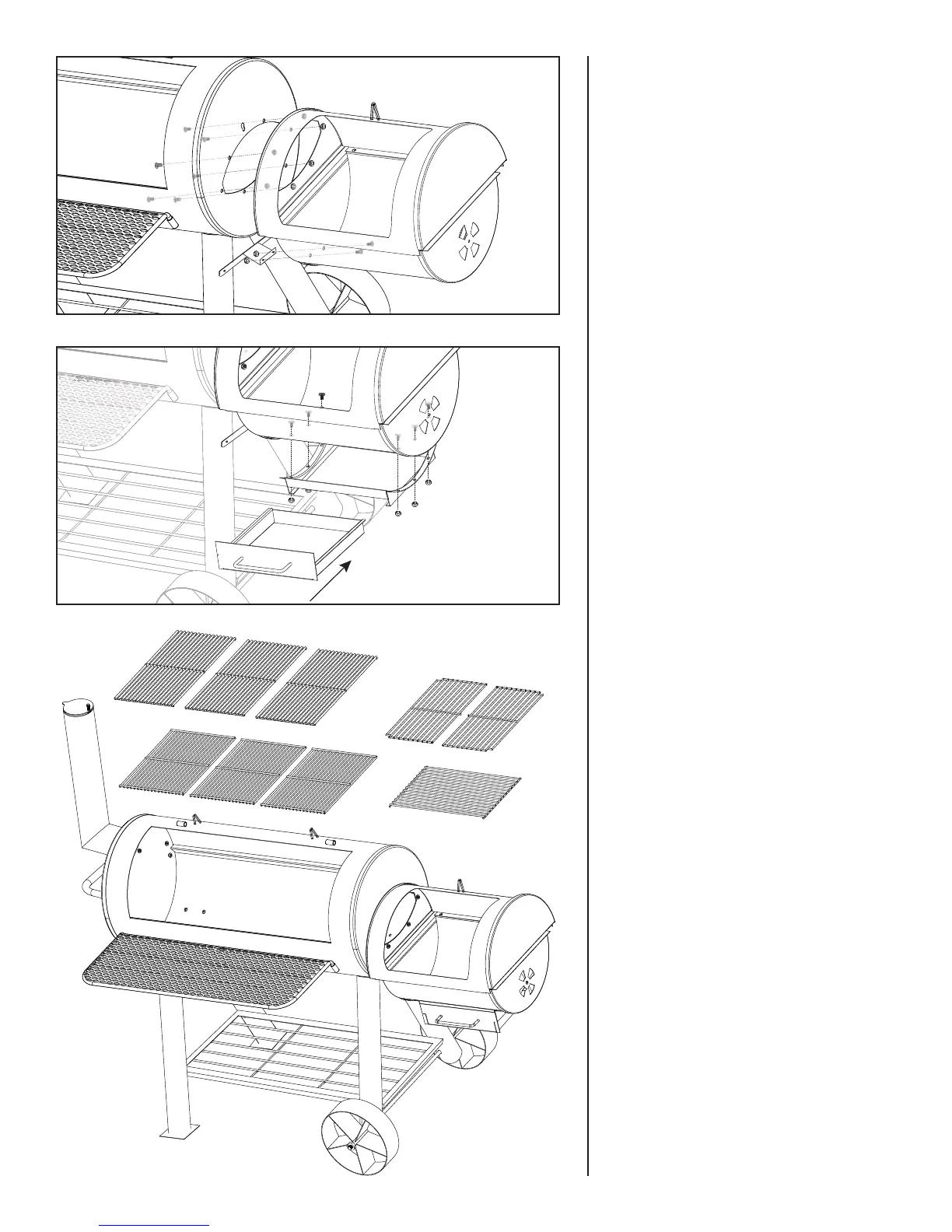

Step 16
Attach firebox to cooking chamber and
firebox bracket using eight M6 X 12 mm
bolts and two M6 nuts as shown.
Step 17
Attach ash tray bracket to firebox using six
M6 X 12 mm bolts and six M6 nuts
as shown. Slide ash tray into ash tray
bracket.
Step 18
Place three cooking chamber charcoal
grates into the cooking chamber. Place
three cooking chamber cooking grills over
the charcoal grates. Place firebox charcoal
grate into the firebox. Place two firebox
cooking grills over the charcoal grate.
