Note: With the help of a friend, turn the
assembled grill upright. Try to
minimize the stress to the legs.

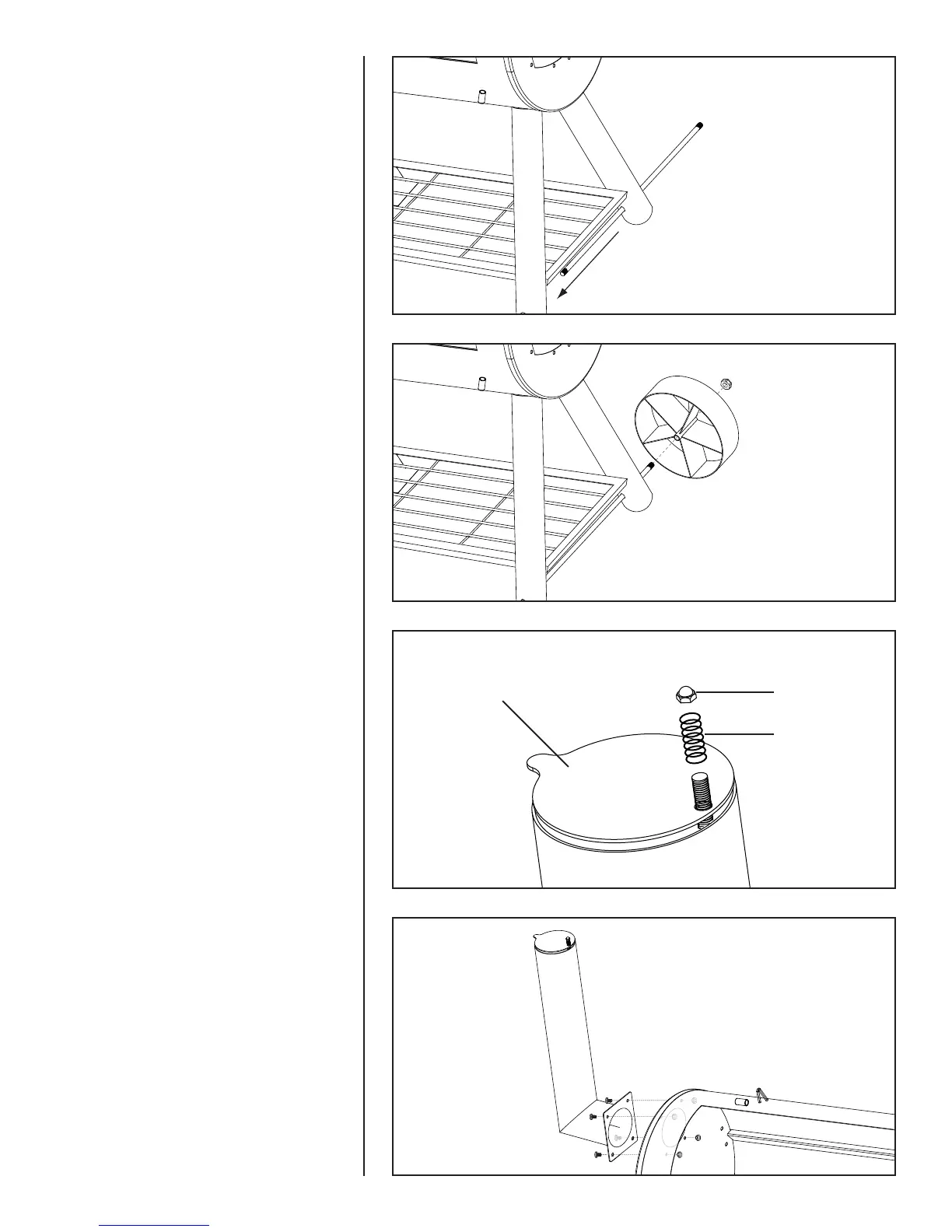

Step 5
Slide wheel axle through the holes in the
wheel legs as shown.
Step 6
Attach wheels to the wheel axle using two
M12 wheel axle nuts.
Step 7
Place smoke stack damper over the bolt at
the top of the smoke stack. Then place the
smoke stack damper spring over the bolt
and tighten with cap nut.
Step 8
Attach smoke stack to the cooking
chamber using four M6 X 12 mm bolts
and four M6 nuts as shown.
Cap Nut
Spring
Damper
