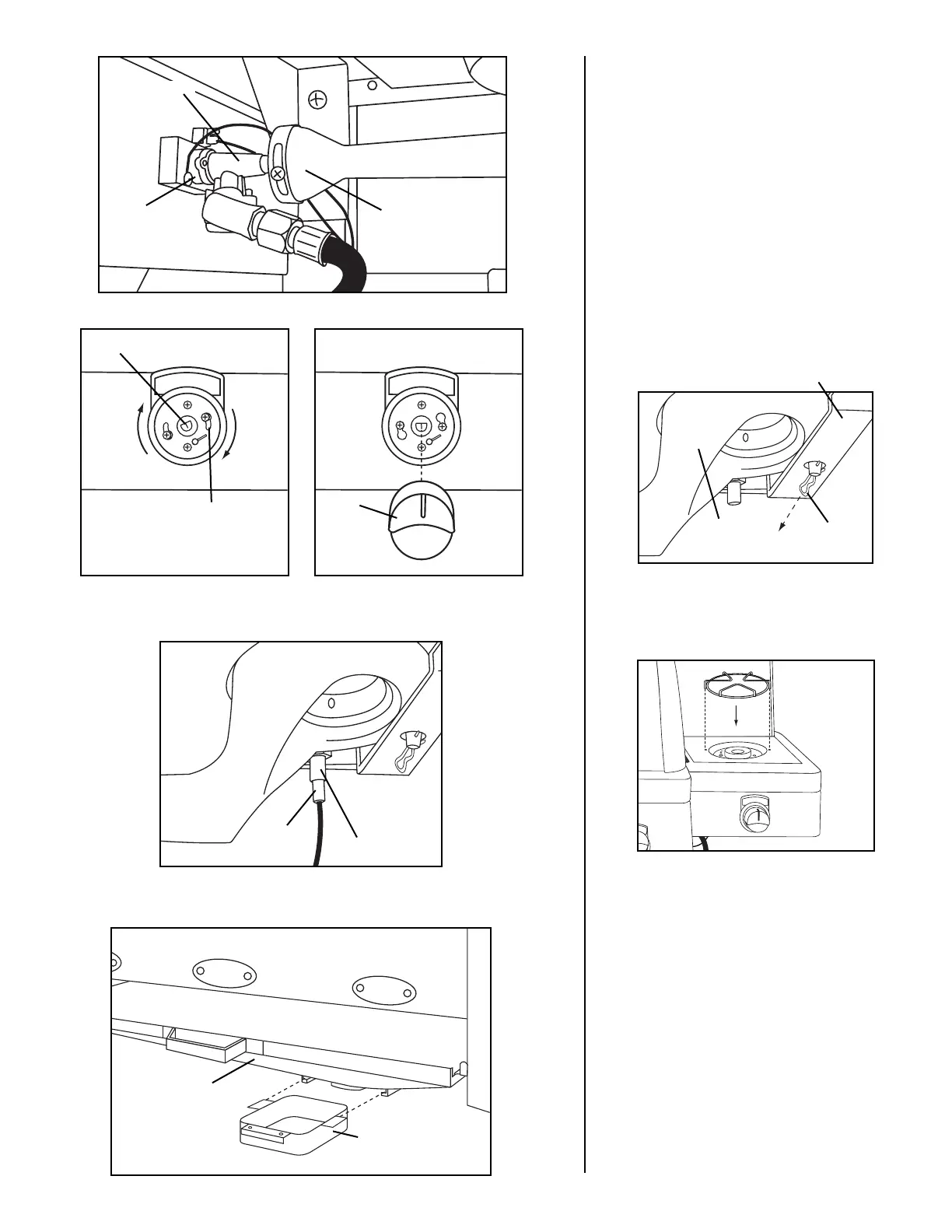

Step 11
Remove cotter pin from side
burner bracket so side burner
can move freely. Insert the side
burner valve assembly through
the holes in the side burner front
panel, then firmly seat the valve
nozzle into the burner venturi.
Rotate burner valve assembly
clockwise to lock in place with
keyholes. Then tighten pre-
attached bolts. Place the side
burner control knob on the side
burner valve stem. Replace
cotter pin in side burner bracket.
Step 12
Place side burner grate on side
burner.
Step 13
Attach side burner igniter lead
wire to the electrode as
illustrated.
Step 14
Insert grease cup into the grease
tray. Make sure to slide cup onto
tracks as illustrated.
Note: The grease tray is
pre-installed on the
backside of the grill.
26
Grease Tray
Grease Cup
Igniter
Lead
Electrode
Keyholes
Valve Stem
Side
Burner
Control
Knob
Side
Burner
Valve
Valve
Nozzle
Burner
Venturi
Side
Burner
Side Burner Bracket
Cotter
Pin
