Brinkmann ZONE - Assembly Step 15-19: Internal Components and Rotisserie; Installing Heat Distribution and Cooking Surfaces; Rotisserie Motor and Wiring

27

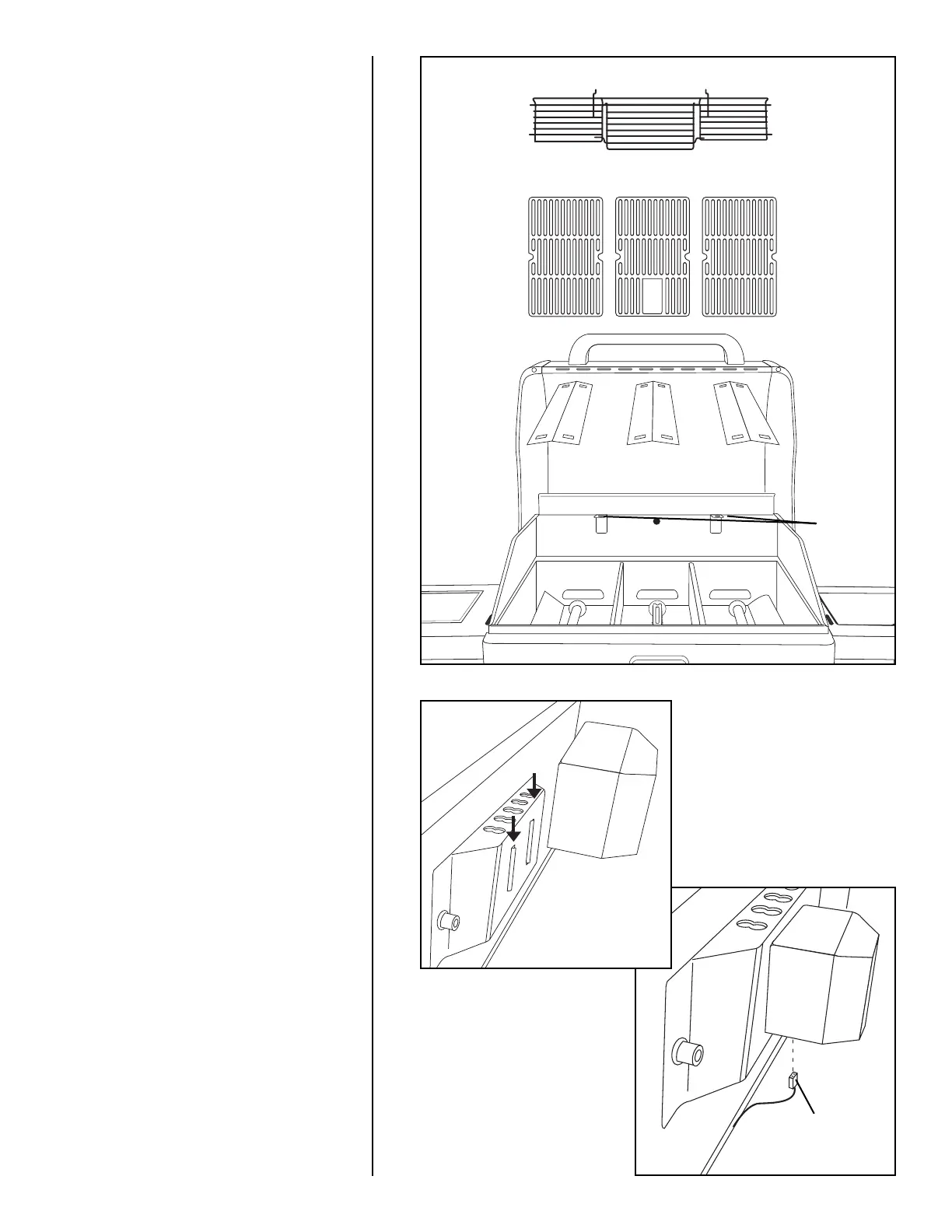

Step 15
Push in and turn rotisserie knob
counter-clockwise 90 degrees to
raise rotisserie bracket. Place heat
distribution plates on lower level of
grill body assembly directly above
burners. Place the center heat
distribution plate under the
rotisserie bracket first, then place
other end.
Step 16
Place cooking grates on support
ribs directly above heat distribution
plates.
Step 17
Insert warming rack onto brackets.
ROTISSERIE ASSEMBLY
Step 18
Slide rotisserie motor onto the
tracks on the motor bracket
located on the back of the grill.
Step 19
Attach lead wire coming from grill
body to the motor.
Heat Distribution Plates
Warming Rack
Brackets
Cooking Grates
Lead Wire
