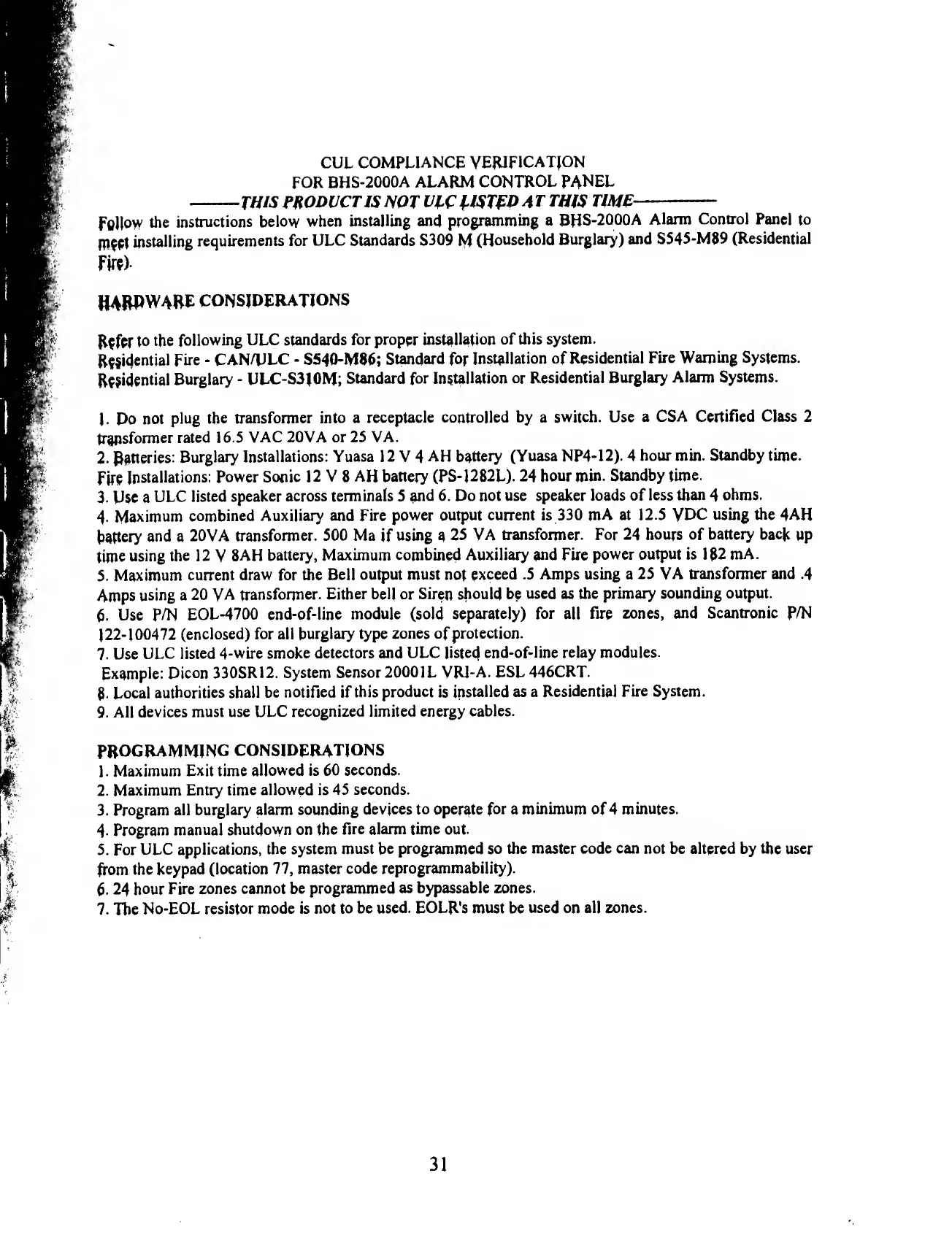

CUL COMPLIANCE VERIFICATION
FOR BHS-2000A ALARM CONTROL PANEL
- T HIS PRODUCT IS HOT ULC USTED 4 T THIS TIME -
Follow the instructions below when installing and programming a BHS-2000A Alarm Control Pane) to
fT)$gt installing requirements for ULC Standards S309 M (Household Burglary) and S545-M89 (Residential
Fire)-
W4RPW4RE CONSIDERATIONS
Refer to the following ULC standards for proper installation of this system.
Residential Fire - CAN/ULC - S54G-M86; Standard for Installation of Residential Fire Warning Systems.
Residential Burglary - ULC-S310M; Standard for Installation or Residential Burglary Alarm Systems.
L Do not plug the transformer into a receptacle controlled by a switch. Use a CSA Certified Class 2
transformer rated 16.5 VAC 20VA or 25 VA.
2. Ratteries: Burglary Installations: Yuasa 12 V 4 AH battery (Yuasa NP4-12). 4 hour min. Standby time.
Fite Installations: Power Sonic 12 V 8 AH battery (PS-1282L). 24 hour min. Standby time.
3. Use a ULC listed speaker across terminals 5 and 6. Do not use speaker loads of less than 4 ohms.
4. Maximum combined Auxiliary and Fire power output current is 330 mA at 12.5 VDC using the 4AH
battery and a 20VA transformer. 500 Ma jf using a 25 VA transformer. For 24 hours of battery back up
time using the 12 V 8AH battery, Maximum combined Auxiliary and Fire power output is 182 mA.
5. Maximum current draw for the Bell output must not exceed .5 Amps using a 25 VA transformer and .4
Amps using a 20 VA transformer. Either bell or Siren should be used as the primary sounding output.
6. Use P/N EOL-4700 end-of-line module (sold separately) for all fire zones, and Scantronic P/N
122-100472 (enclosed) for all burglary type zones of protection.
7. Use ULC listed 4-wire smoke detectors and ULC listed end-of-line relay modules.
Example: Dicon 330SR12. System Sensor 20001L VRI-A. ESL 446CRT.
g. Local authorities shall be notified if this product is installed as a Residential Fire System.
9. All devices must use ULC recognized limited energy cables.
PROGRAMMING CONSIDERATIONS
1. Maximum Exit time allowed is 60 seconds.
2. Maximum Entry time allowed is 45 seconds.
3. Program all burglary alarm sounding devices to operate for a minimum of 4 minutes.
4 . Program manual shutdown on the fire alarm time out.
5. For ULC applications, the system must be programmed so the master code can not be altered by the user
from the keypad (location 77, master code reprogrammability).
6.24 hour Fire zones cannot be programmed as bypassable zones.
7. The No-EOL resistor mode is not to be used. EOLR's must be used on all zones.
