Cooler Operation (cont.)
Fan Operation (cont.)
Motor Failure - Networker Error 60
Should the motor circuit and or the Coolers motor
main
winding be open circuit, the N-E5 module will lockout and
display the error at the Networker
This error condition requires a power up reset to restore the
Coolers operation.
Refer to motor diagnostics for check list.
Service
Fan Motor will not Operate
• Turn the fan ON in manual mode and make sure the motor is not in an operation
delay period i.e. Servoseal open time.
• Check the impellor is free to turn.
• Check the motor shaft is free to rotate and is not jammed.
• Remove the N-E5 and check the motor wiring terminals are correctly positioned on
the circuit board and that the connections are good.

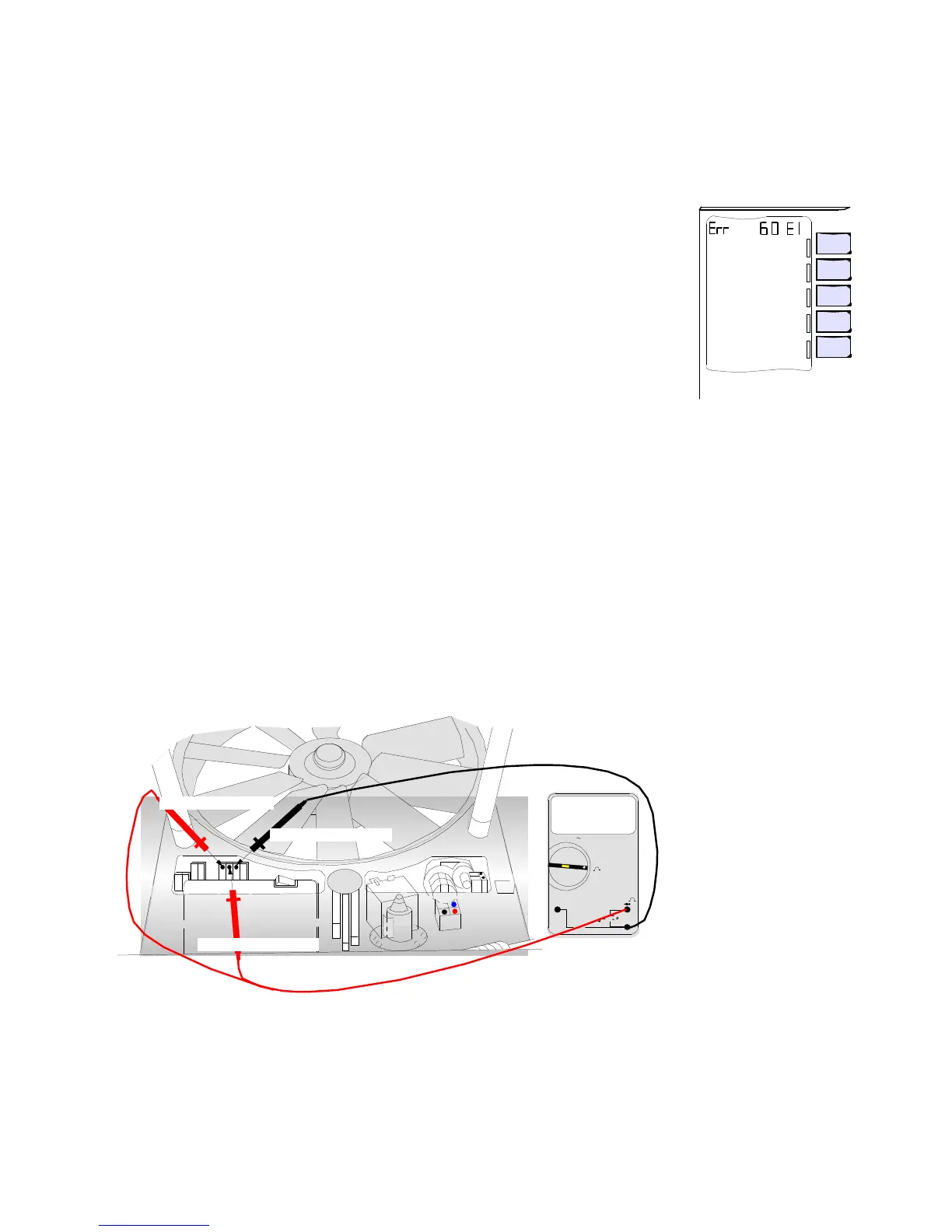

• Check the motor winding resistance (refer Motor Circuit Diagram and Technical
Information Sheet).
OFF
10 A
V
COM
1000V- - -
750V
V
OHMS
Multimeter
FUSED
MOTOR/COMMON-BLUE
MOTOR/START-BLACK
MOTOR/RUN-BROWN
• Check the motor is not HOT and the thermal over load switch is not open circuit.
• Check the incoming power supply is ON and is the correct polarity.
