Cooler Operation (cont.)
Water Inlet Solenoid Operation (cont.)
If NO power:
• Check the Cooler's operation is not in a delay period preventing the water inlet
solenoid from functioning.
• Check the power supply is turned ON and is the correct polarity and voltage
(Mains Active In and Neutral terminals).
• Check the N-E5 8 Amp fuse is not open circuit.
• Check the N-E5 module is turned ON and is correctly located in the mounting plug.

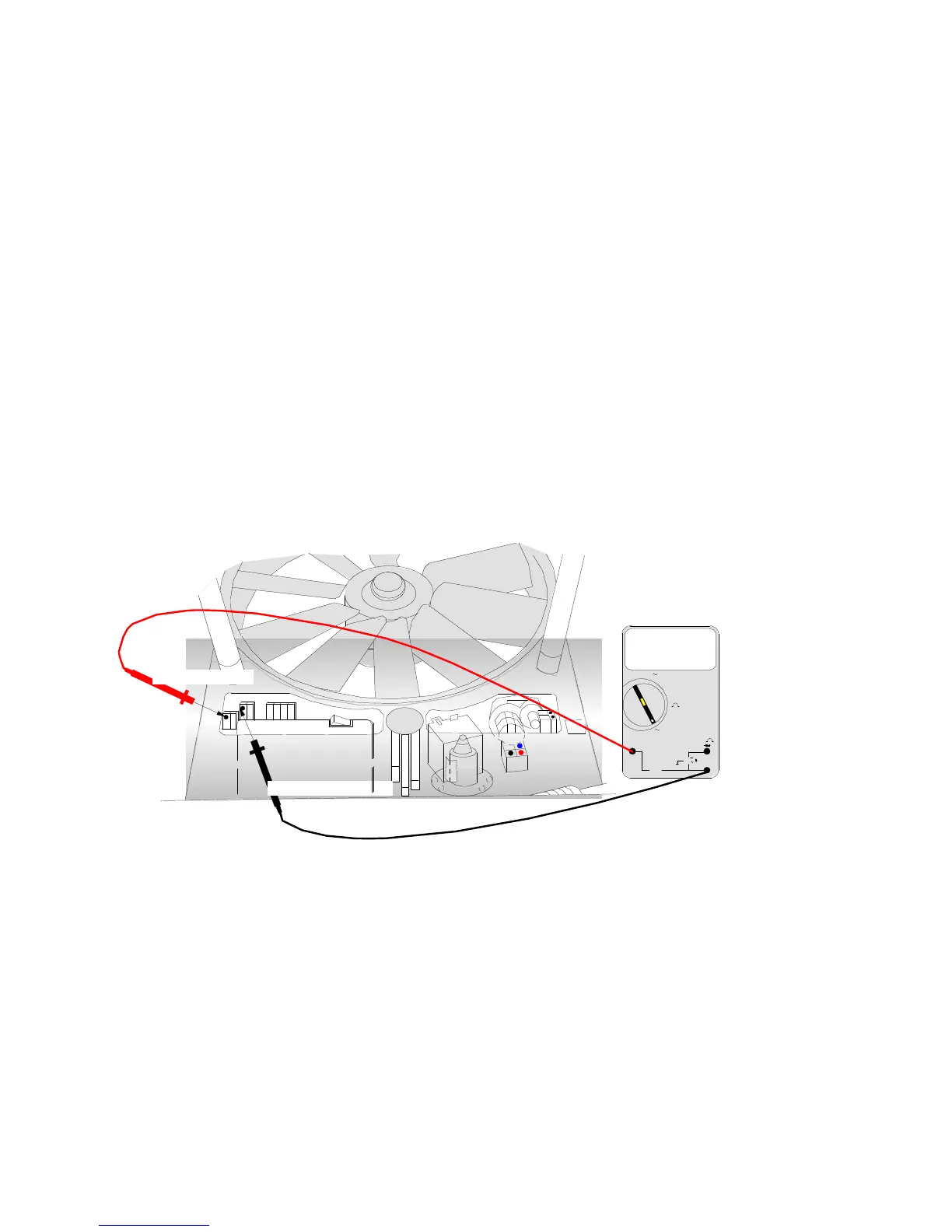

Bridge power supply using a multimeter in series on Amp setting between
MAINS/ACTIVE-IN and WATER INLET SOLENOID-ACTIVE terminals. Note - Only
a Qualified electrician should perform this procedure as it involves full current
240 volt electricity.
OFF
10 A
V
COM
FUSED
1000V- - -
750V
V
Amps
Multimeter
A
MAINS ACTIVE-IN
INLET VALVE - ACTIVE
If water inlet solenoid operates:
• Replace N-E5 module, and check for output voltage to the water inlet solenoid.
If water inlet solenoid doesn't operate:
• Check wiring terminals & loom.
• Check water inlet solenoid is not blocked or jammed.
• Replace water inlet solenoid.
