7. BX5 Model Guidelines
The BX520 and BX526 ducted heaters are designed primarily to replace Brivis Buffalo 85 and Brivis Buffalo 120
heaters respectively. Their configuration allows for seamless changeover onto an existing base box, where applicable,
with identical service connections, capacities and airflows commensurate with the original units. They also incorporate
on-board controls providing greater flexibility for thermostat and zone control options.
7.1 Heater Dimensions

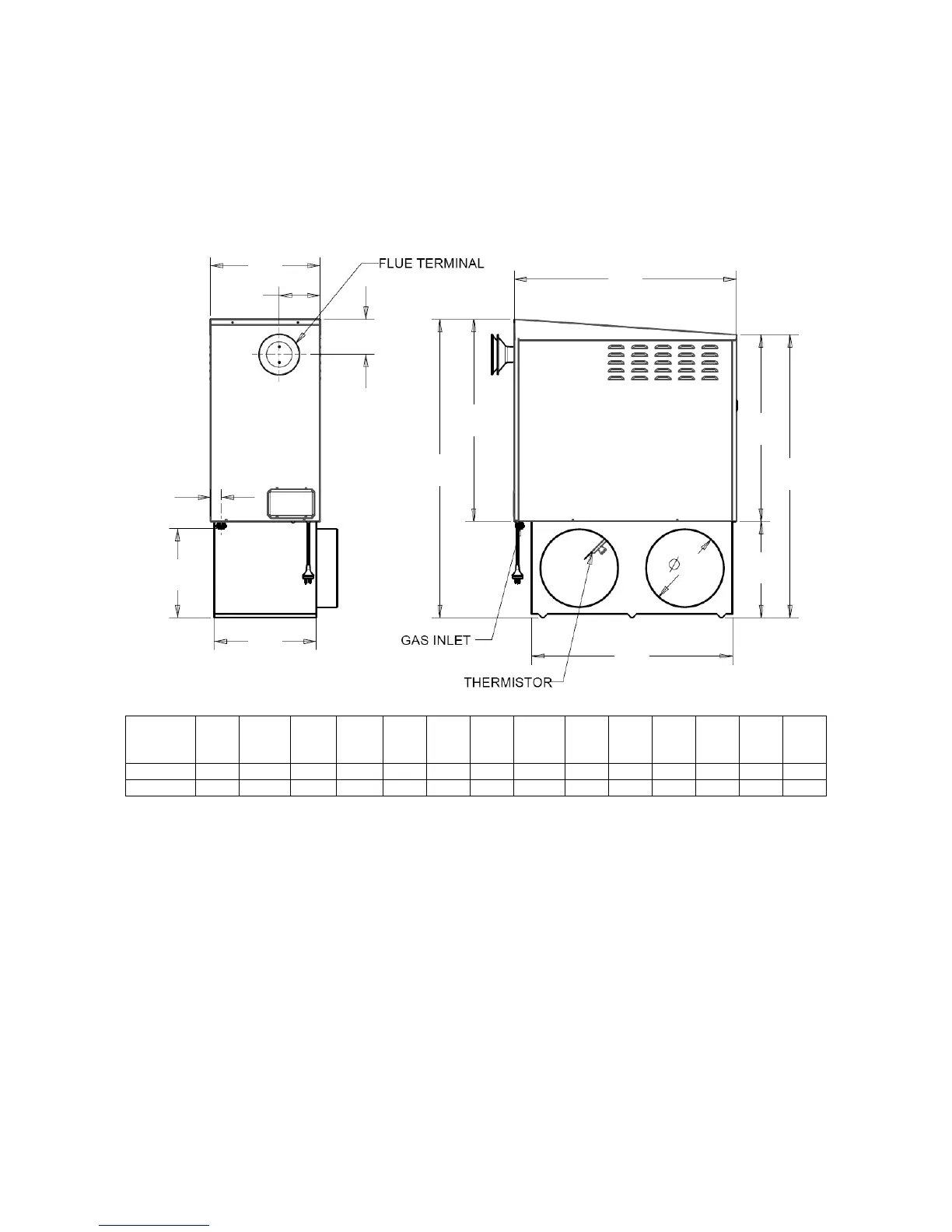

Diagram 15.
I
C
F
G
E
H
B
A
M
J
L
K
N
D
I
Dimension
[mm]
A B C D E F G H I J K L M øN
BX520 775 852 420 341 41 156 135 391 1145 715 1085 370 771 300
BX526 866 1028 582 387 41 238 135 557 1280 805 1220 415 951 350
