3. SP5 & SP6 External Model Guidelines

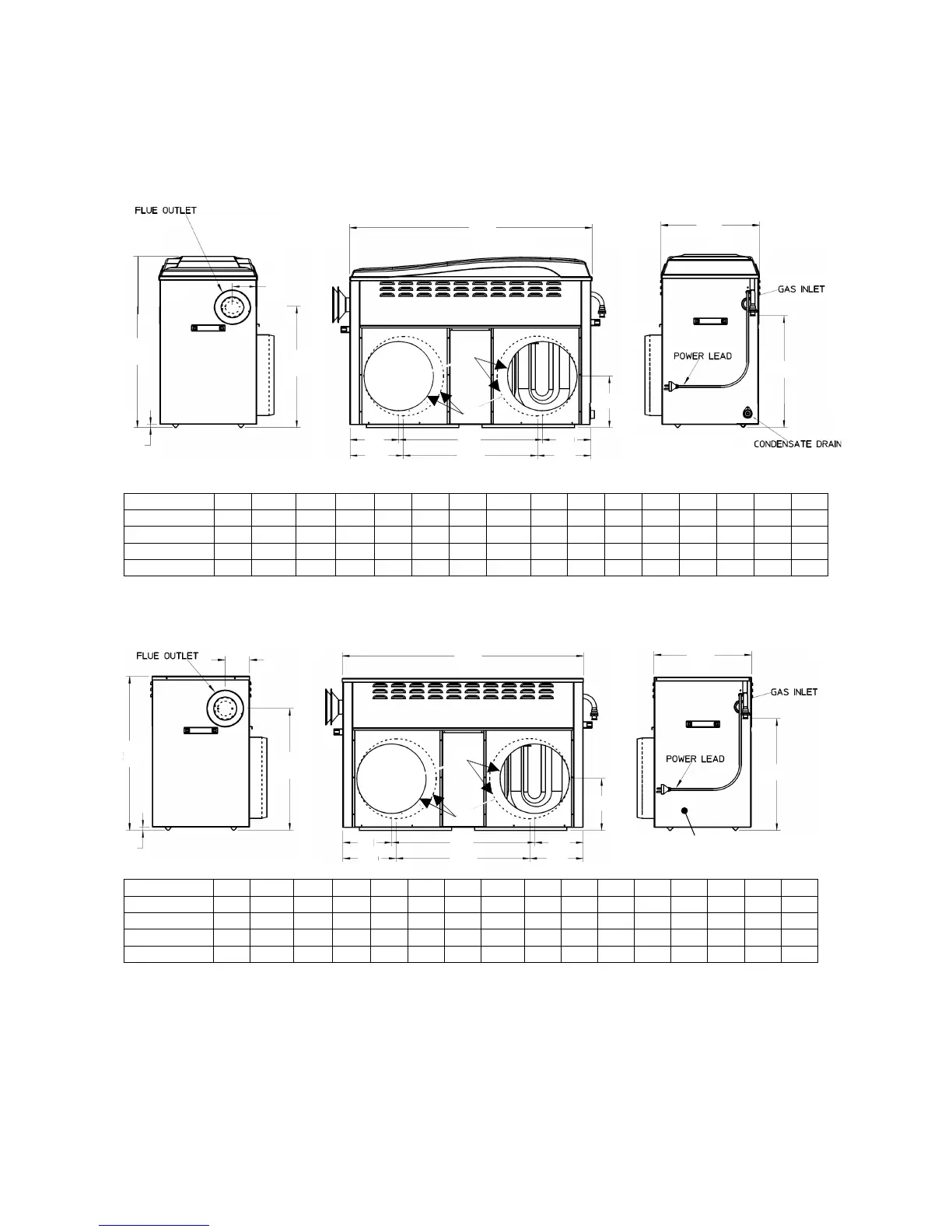

3.1 Heater Dimensions
SP6 External
Diagram 8a.
A
B
C
D
E
F
G
I
K
M
H J
L
øRa
øSa
N
B
C
E
Dimension [mm] A B C D E F G H I J K L M N øSa øRa
SP623EN 750 1046 416 15 104 520 211 n/a 620 n/a 210 - 224 480 300 300
SP623EN-XA 750 1046 416 15 104 520 - 230 - 580 - 231 224 480 350 350
SP630EN 790 1102 575 15 255 570 236 - 620 - 236 - 249 530 350 350
SP630EN-XA 790 1102 575 15 255 570 - 261 - 570 - 261 249 530 400 400
SP5 External
Diagram 8b.
A
B
C
D
E
F
G
I
K
M
H J
L
øRa
øSa
N
HEATER END PANEL
Dimension [mm] A B C D E F G H I J K L M N øSa øRa
SP521EN 657 1046 416 15 104 520 211 - 620 - 210 - 224 480 300 300
SP521EN-XA 657 1046 416 15 104 520 - 230 - 580 - 231 224 480 350 350
SP530EN 707 1096 568 15 255 570 236 - 620 - 236 - 249 530 350 350
SP530EN-XA 707 1096 568 15 255 570 - 261 - 570 - 261 249 530 400 400
