A maximum length of 25m x 100mm DWV flue pipe is allowed in all situations with no more than 4 x 90º
bends, refer Table 1. Note a 1 x 45º bend is equivalent to a 0.5 x 90º bend.
Table 1.
All Internal SP6 Models
100mm DWV Flue
HEATER
ORIENTATION
FLUE
ORIENTATION
90º BENDS
Up to 4
TERMINAL
TYPE
Standard
Vertical 25m 100mm DWV Plain Vent Cowl
Horizontal 25m Brivis Remote Flue Terminal
Laydown
Vertical 25m 100mm DWV Plain Vent Cowl
Horizontal 25m Brivis Remote Flue Terminal
* All Vertical Flue Orientations will have at least one 90º bend.
2.5.4 Brivis Remote Terminal (Part No. B018384) All Internal Model applications
In specific installations, for example under the floor, it is recommended that a remote terminal be used to terminate
the flue on the outside wall of the building. Please refer to instructions supplied with a Brivis Remote Flue Terminal.

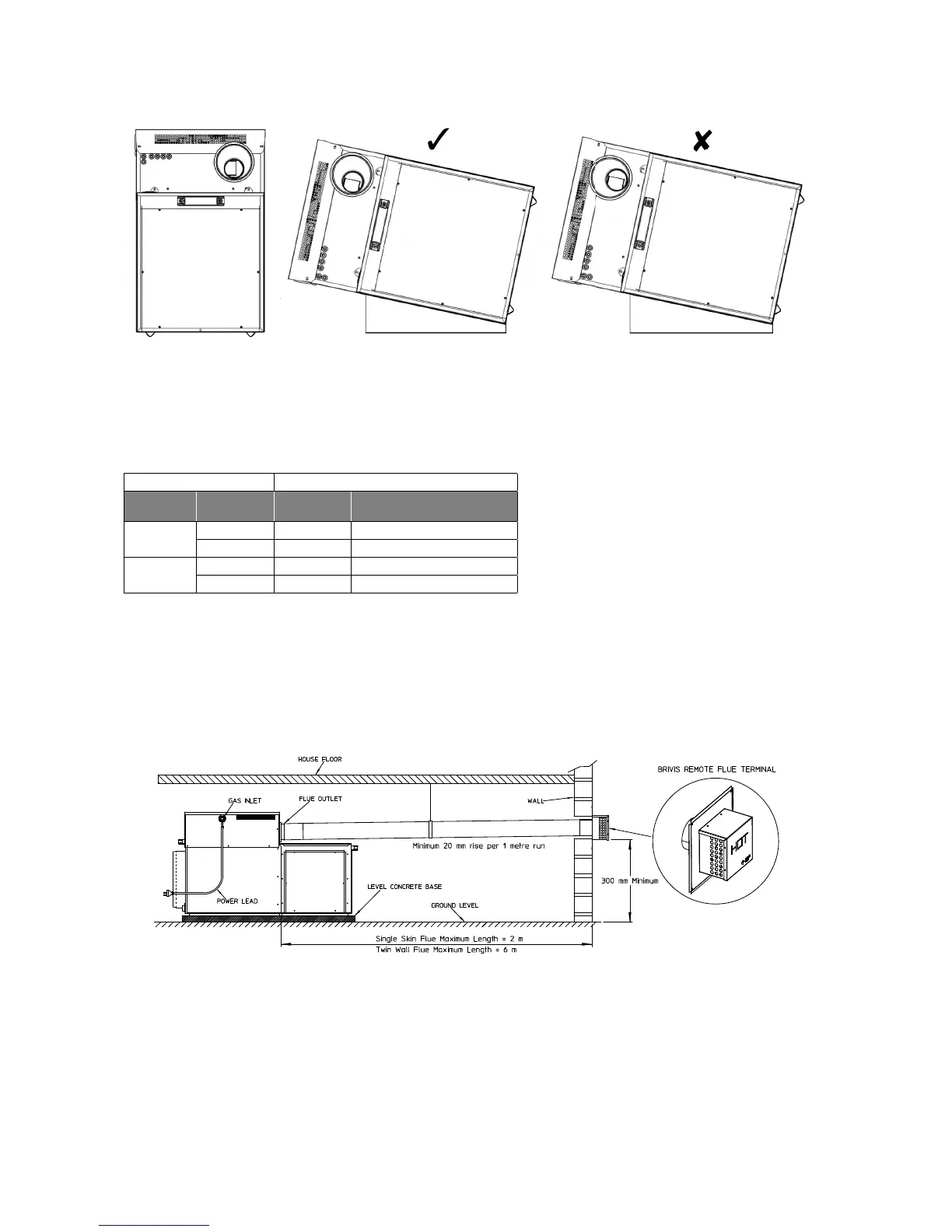

Diagram 7 depicts typical SP5 underfloor configuration.
Diagram 7.
6
324702 CAAB024953 StarPro Installers Heat issue D.indd 9 17/05/16 8:41 AM
