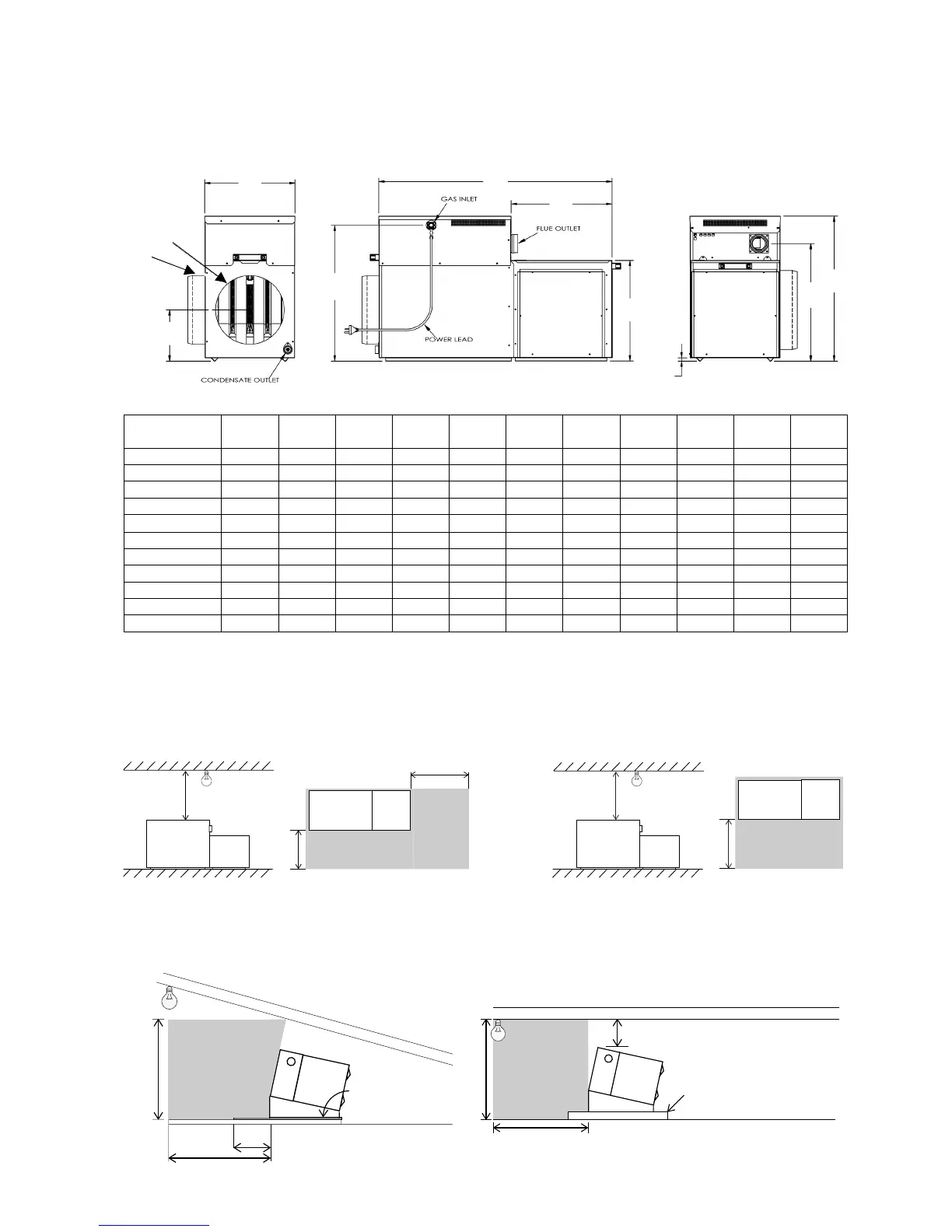

2. SP5 & SP6 Internal Model Guidelines
2.1 Heater Dimensions
Diagram 1.
SP6 & SP5 Internal
SP5 External
Dimension
[mm]
A B C D E F G H I øSa øRa
SP615IN 634 1021 395 594 440 440 15 513 224 300 300
SP623IN 634 1021 395 594 440 440 15 513 224 300 300
SP623IN-XA 634 1021 395 594 440 440 15 513 224 350 350
SP630IN 684 1070 547 643 491 490 15 563 253 350 350
SP630IN-XA 684 1070 547 643 491 490 15 563 253 400 400
SP635IN 684 1070 547 643 491 490 15 563 253 450 450
SP515IN 634 1021 395 594 440 440 15 513 224 300 300
SP521IN 634 1021 395 594 440 440 15 513 224 300 300
SP521IN-XA 634 1021 395 594 440 440 15 513 224 350 350
SP530IN 684 1070 547 643 491 490 15 563 253 350 350
SP530IN-XA 684 1070 547 643 491 490 15 563 253 400 400
SP535IN 684 1070 547 643 491 490 15 563 253 450 450
Dimension
[mm]
A B C D E F G H I J K L M N øSa øRa
SP521EN 657 1046 416 15 104 520 211 - 620 - 210 - 224
480 300 300
SP521EN-XA 657 1046 416 15 104 520 - 230 - 580 - 231 224 480 350 350
SP530EN 707 1096 568 15 255 570 236 - 620 - 236 - 249 530 350 350
SP530EN-XA 707 1096 568 15 255 570 - 261 - 570 - 261 249 530 400 400
C
I
øSa
B
E
D
F
G
A
H
øRa
(SP6 MODELS ONLY)
A
B
C
D
E
F
G
I
K
M
H J
L
øSa
øRa
N
A
B
C
D
E
F
G
I
K
M
H J
L
øRa
øSa
N
B
C
E
Dimension
[mm]
A B C D E F G H I øSa øRa
SP615IN 634 1021 395 594 440 440 15 513 224 300 300
SP623IN 634 1021 395 594 440 440 15 513 224 300 300
SP623IN-XA 634 1021 395 594 440 440 15 513 224 350 350
SP630IN 684 1070 547 643 491 490 15 563 253 350 350
SP630IN-XA 684 1070 547 643 491 490 15 563 253 400 400
SP635IN 684 1070 547 643 491 490 15 563 253 450 450
SP521IN 634 1021 395 594 440 440 15 513 224 300 300
SP521IN-XA 634 1021 395 594 440 440 15 513 224 350 350
SP530IN 684 1070 547 643 491 490 15 563 253 350 350
SP530IN-XA 684 1070 547 643 491 490 15 563 253 400 400
SP535IN 684 1070 547 643 491 490 15 563 253 450 450
2.2 Service Clearances
Method 1 - In Ceiling & Under Floor Method 2 - In Ceiling & Under Floor
Diagram 2. Diagram 3.
750mm
Minimum
Fan
Cabinet
Heat
Exchanger
Cabinet
250 mm
Minimum
750mm
Minimum
Service Clearance
Heat
Exchanger
Cabinet
Fan Cabinet
Platform
Side View Plan View
Fan
Cabinet
Heat
Exchanger
Cabinet
800 mm
Minimum
Platform
Service Clearance
Heat
Exchanger
Cabinet
Fan Cabinet
750mm
Minimum
Side View Plan View
Method 3 - Lay Down Option - Method 4 - Lay Down Option -
In Ceiling Under Floor
Diagram 4. Diagram 5.
Fire resistant board
(refer to AS5601)
700
750
300
(refer to AS5601)
service
clearance
(full length of heater)
Side View
Ground
750
200 (refer to AS5601)
Lowest part of floor structure
Concrete Base 50mm
service
clearance
(full length of heater)
700
S
i
d
e Vie
w
4
