Brivo ACS-SDC-E Installation Manual
General Assembly Procedures
Assemble and mount ACS-SDC-E
1. Mount the ACS-SDC-E unit using the method described below:
a) This Single Door Access Control Device (ACS-SDC-E) is intended to be installed within the
secure/protected area.
b) To mount the ACS-SDC-E:
i) Fully wire the ACS-SDC-E, ensure all cables have proper strain relief, and use the
provided zip tie for additional CAT5 or greater cable strain relief.
ii) Push the ACS-SDC-E into the junction box facing inwards.
iii) Attach the provided cover plate.

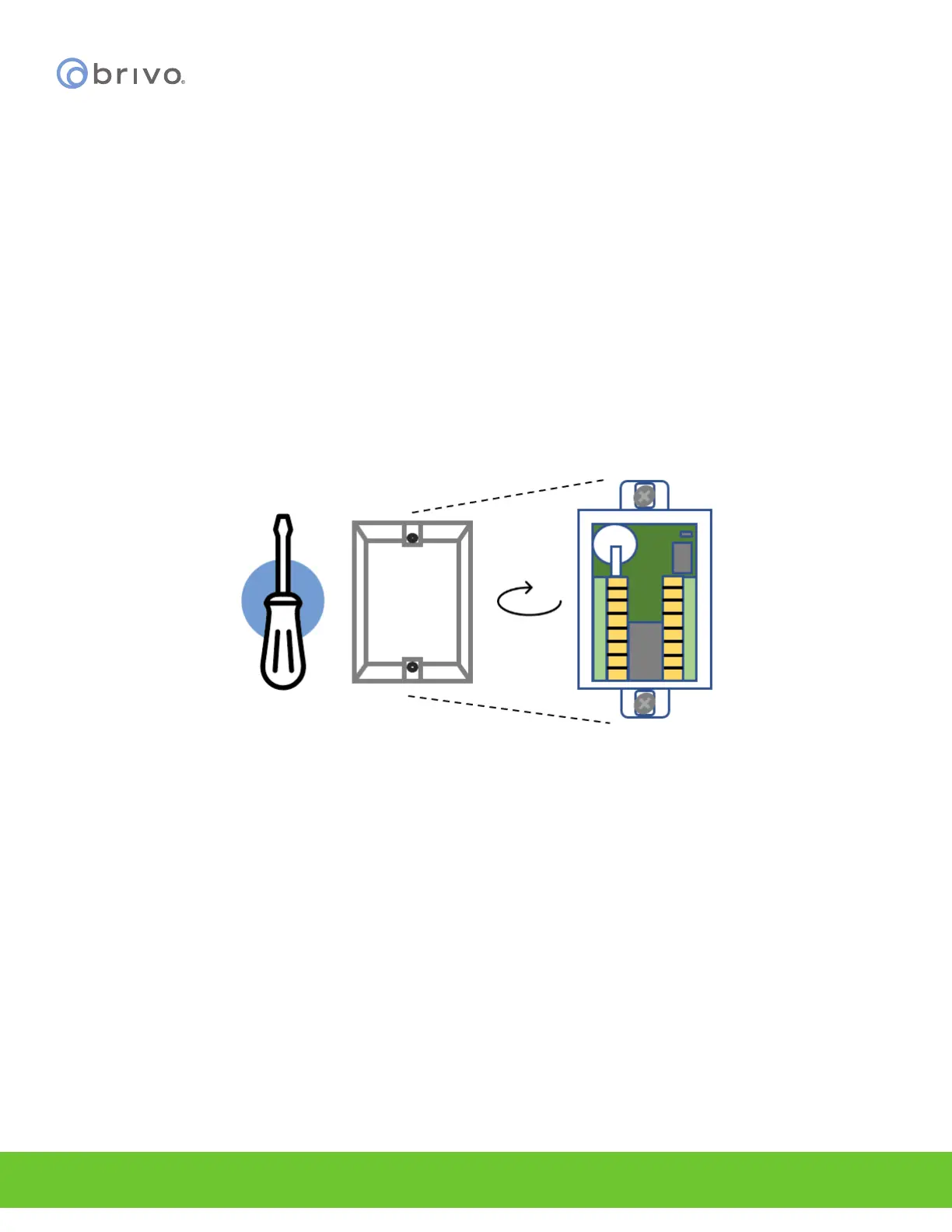

ACS-SDC-E Mounting Diagram
