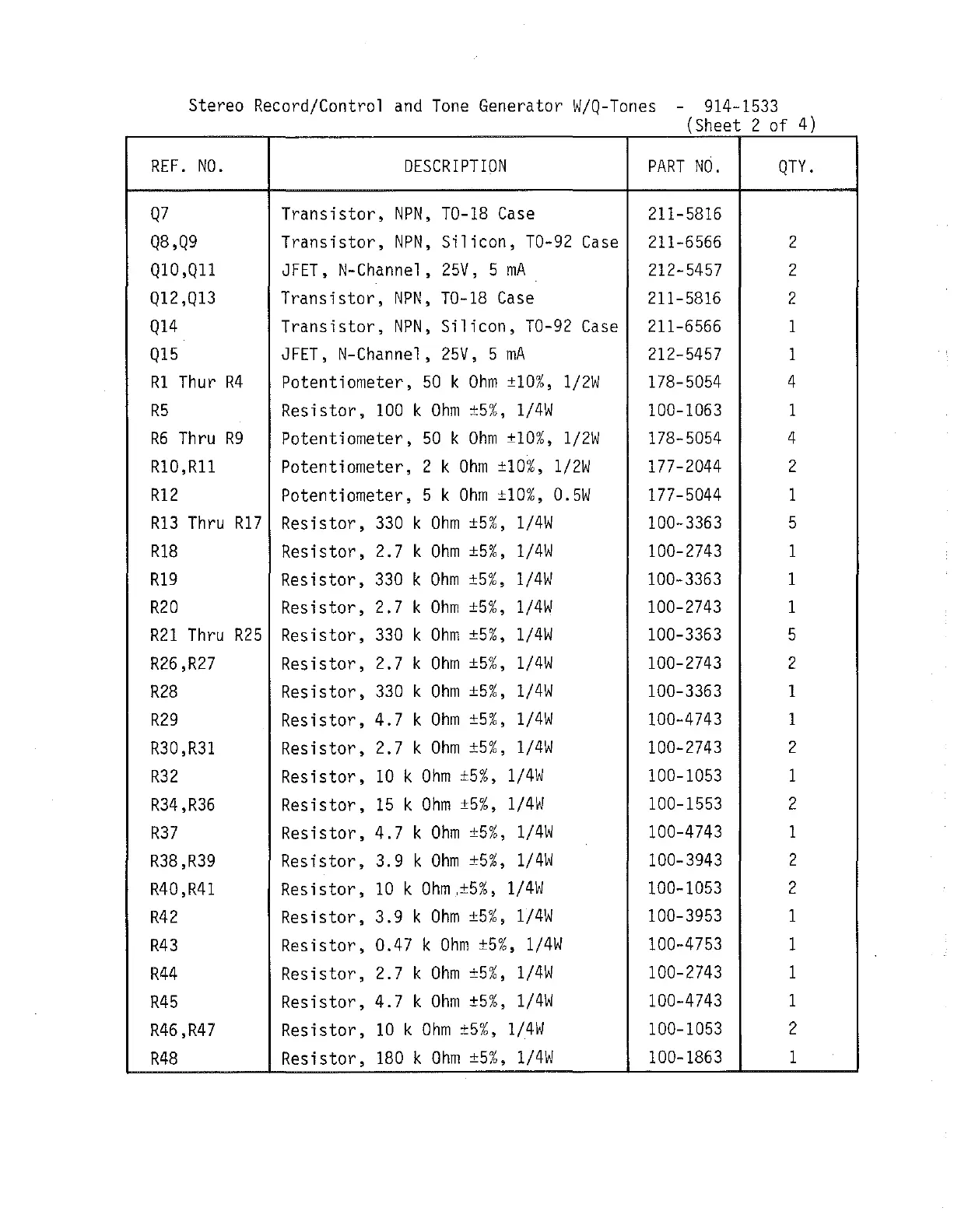

Broadcast Electronics 3000 Series - Page 101

Stereo Record/Control and Tone Generator W/Q-Tones - 914-1533
(Sheet 2 of
4)
REF. NO.
Q7
Q8,Q9
Q10 ,Q11
Q12 ,Ql3
Q14
Q15
R1 Thur R4
R5
R6 Thru R9
R10, R11
R12
R13
Thru R17
R18
R19
R20
R21 Thru R25
R26,R27
R28
R29
R30,R31
R32
R34,R36
R37
R38,R39
R40 ,R41
R42
R43
R44
R45
R46,R47
R48
DESCRIPTION PART NO.
Transistor, NPN, T0-18 Case 211-5816
Transistor, NPN, Silicon, T0-92 Case 211-6566
JFET, N-Channel, 25V, 5 mA 212-5457
Transistor, NPN, T0-18 Case 211-5816
Transistor, NPN, Silicon, T0-92 Case
JFET, N-Channel, 25V, 5 mA
Potentiometer, 50 k Ohm ±10%, 1/2W
Resistor, 100 k Ohm ±5%, 1/4W
Potentiometer, 50 k Ohm ±10%, 1/2W
Potentiometer, 2 k Ohm ±10%, 1/2W
Potentiometer, 5 k Ohm ±10%, 0.5W
Resistor, 330 k Ohm ±5%, 1/4W
Resistor, 2.7 k Ohm ±5%, 1/4W
Resistor, 330 k Ohm ±5%, 1/4W
Resistor, 2.7 k Ohm ±5%, 1/4W
Resistor, 330 k Ohm ±5%, 1/4W
Resistor, 2.7 k Ohm ±5%, 1/4W
Resistor, 330 k Ohm ±5%, 1/4W
Resistor, 4.7 k Ohm ±5%, 1/4W
Resistor, 2.7 k Ohm ±5%, 1/4W
Resistor, 10 k Ohm ±5%, 1/4W
Resistor, 15 k Ohm ±5%, 1/4W
Resistor, 4.7 k Ohm ±5%, 1/4W
Resistor, 3.9 k Ohm ±5%, 1/4W
Resistor, 10 k Ohm ,±5%, 1/4W
Resistor, 3.9 k Ohm ±5%, 1/4W
Resistor, 0.47 k Ohm ±5%, 1/4W
Resistor, 2.7 k Ohm ±5%, 1/4W
Resistor, 4.7 k Ohm ±5%, 1/4W
Resistor, 10 k Ohm ±5%, 1/4W
Resistor, 180 k Ohm ±5%, 1/4W
211-6566
212-5457
178-5054
100-1063
178-5054
177-2044
177-5044
100-3363
100-2743
100-3363
100-2743
100-3363
100-2743
100-3363
100-4743
100-2743
100-1053
100-1553
100-4743
100-3943
100-1053
100-3953
100-4753
100-2743
100-4743
100-1053
100-1863
QTY.
2
2
2
1
1
4
1
4
2
1
5
1
1
1
5
2
1
1
2
1
2
1
2
2
1
1
1
1
2
1
