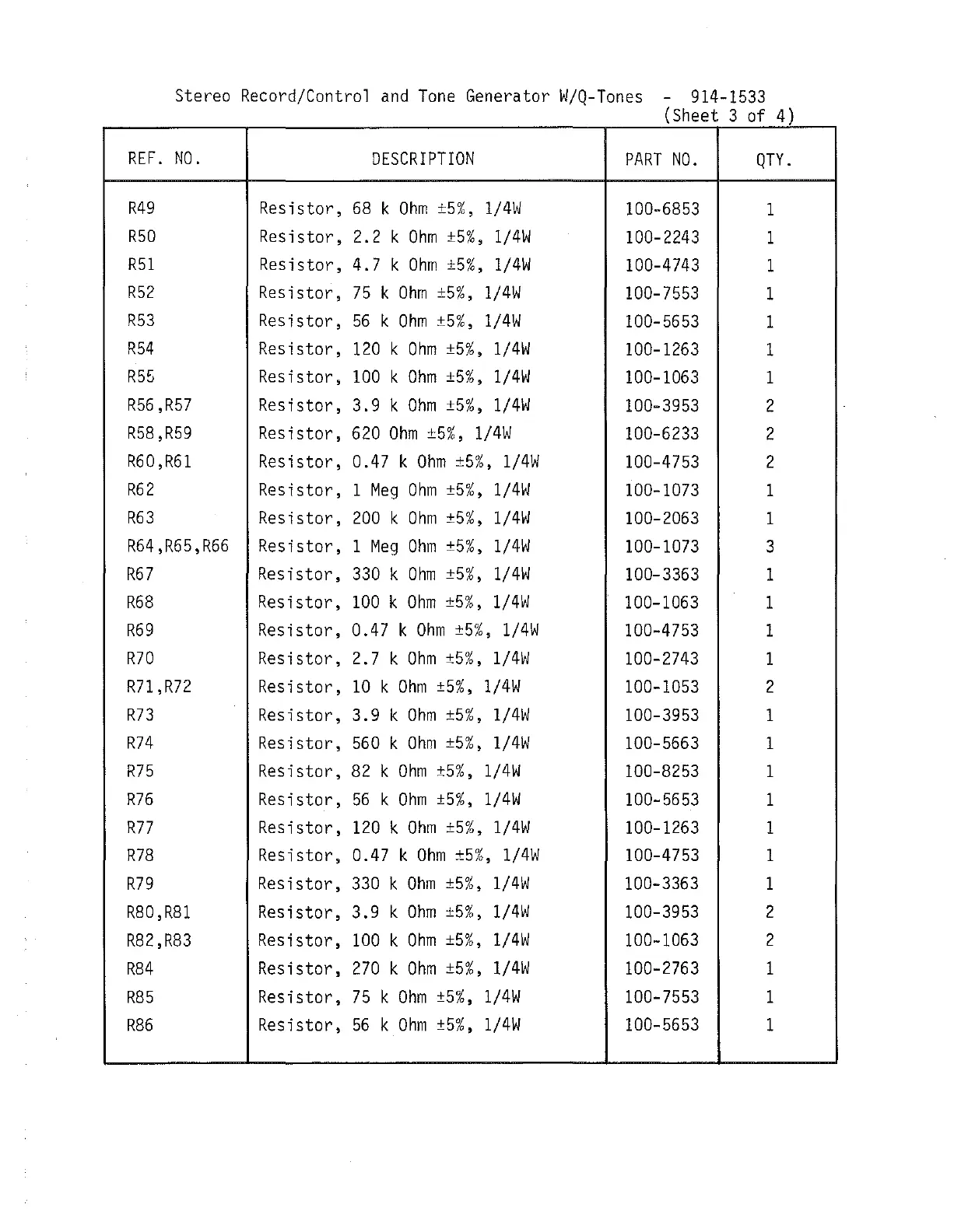

Broadcast Electronics 3000 Series - Page 102

Stereo Record/Control and Tone Generator W/Q-Tones - 914-1533
(Sheet 3
of 4)
REF.
NO.
DESCRIPTION
PART NO.
QTY.
R49 Resistor, 68 k Ohm ±5%, 1/4W
100-6853
1
R50 Resistor,
2.2 k Ohm ±5%, 1/4W
100-2243
1
R51 Resistor, 4.7 k Ohm ±5%, 1/4W
100-4743
1
R52 Resistor, 75 k Ohm ±5%, 1/4W
100-7553
1
R53
Resistor, 56 k Ohm ±5%, 1/4W
100-5653
1
R54 Resistor,
120 k Ohm ±5%, 1/4W
100-1263
1
R55 Resistor, 100 k Ohm ±5%, 1/4W
100-1063 1
R56,R57
Resistor, 3.9 k Ohm ±5%, 1/4W
100-3953 2
R58,R59 Resistor, 620 Ohm ±5%, 1/4W
100-6233
2
R60, R61
Resistor, 0.47 k Ohm ±5%, 1/4W
100-4753 2
R62 Resistor,
1 Meg
Ohm ±5%,
1/4W 100-1073
1
R63 Resistor,
200 k
Ohm ±5%,
1/4W
100-2063 1
R64,R65,R66 Resistor,
1 Meg
Ohm ±5%,
1/4W
100-1073 3
R67
Resistor,
330 k
Ohm ±5%,
1/4W
100-3363 1
R68 Resistor,
100 k Ohm ±5%,
1/4W
100-1063 1
R69 Resistor,
0.47 k Ohm ±5%, 1/4W
100-4753 1
R70 Resistor, 2.7 k Ohm ±5%, 1/4W
100-2743
1
R71, R72
Resistor,
10 k Ohm ±5%, 1/4W
100-1053 2
R73 Resistor, 3.9 k Ohm ±5%, 1/4W
100-3953 1
R74 Resistor, 560 k Ohm ±5%, 1/4W
100-5663 1
R75 Resistor, 82 k Ohm ±5%, 1/4W
100-8253 1
R76 Resistor, 56 k Ohm ±5%, 1/4W
100-5653 1
R77
Resistor, 120 k Ohm ±5%, 1/4W
100-1263 1
R78 Resistor,
0.47 k Ohm ±5%, 1/4W
100-4753 1
R79
Resistor, 330 k Ohm ±5%, 1/4W 100-3363
1
R80,R81 Resistor,
3.9 k Ohm ±5%,
1/4W 100-3953 2
R82, R83 Resistor, 100 k Ohm ±5%, 1/4W 100-1063 2
R84 Resistor,
270 k Ohm ±5%, l/4W
100-2763 1
R85 Resistor, 75
k Ohm ±5%, 1/4W
100-7553 1
R86
Resistor, 56 k Ohm ±5%, 1/4W 100-5653
1
