Broadcast Electronics 3000 Series - Page 103

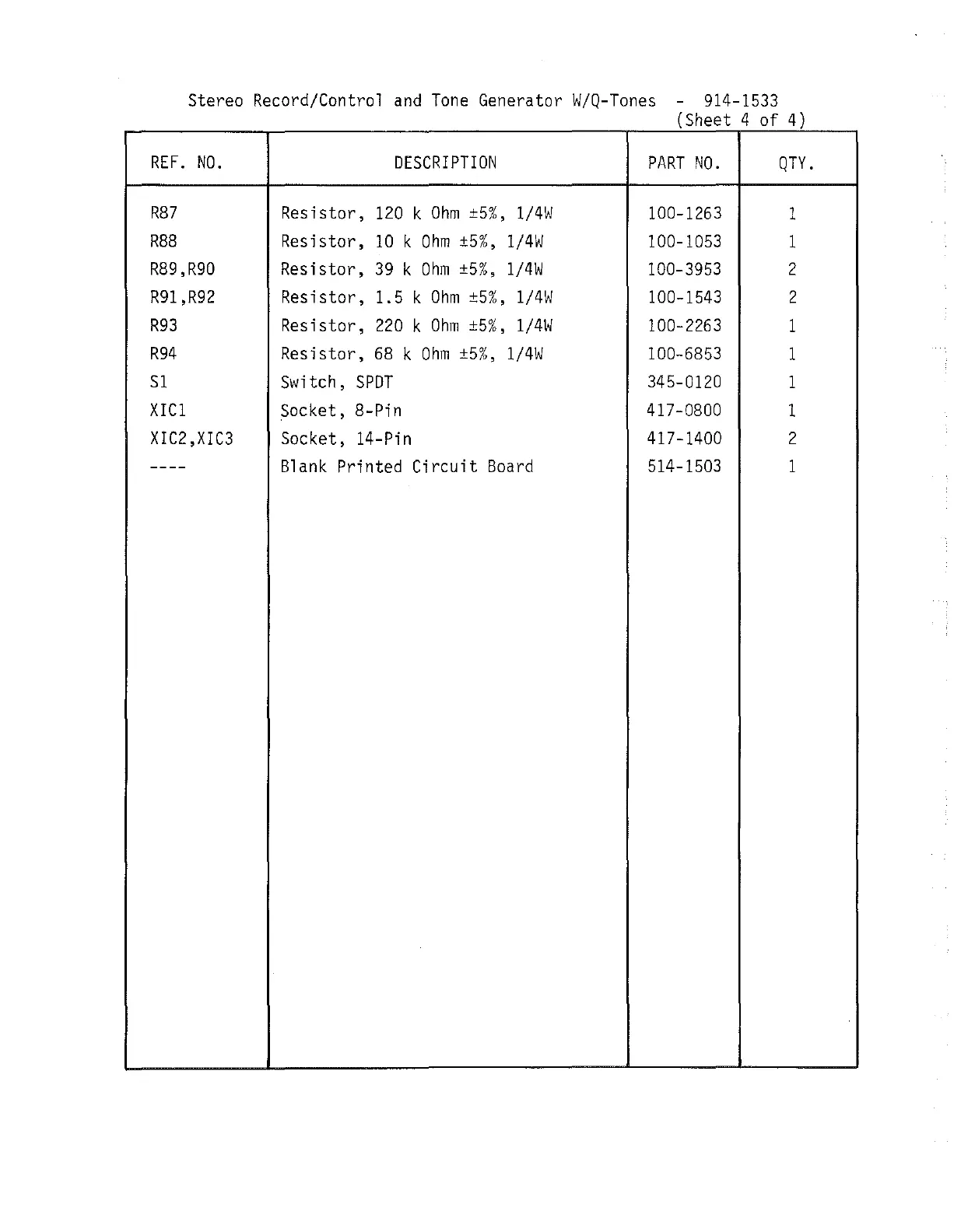

Stereo Record/Control and Tone Generator W/Q-Tones - 914-1533
(Sheet 4 of
4)
REF. NO.
R87
R88
R89,R90
R91,R92
R93
R94
S1
XIC1
XIC2,XIC3
DESCRIPTION
Resistor, 120 k Ohm ±5%, 1/4W
Resistor, 10 k Ohm ±5%, 1/4W
Resistor, 39 k Ohm ±5%, 1/4W
Resistor, 1.5 k Ohm ±5%, 1/4W
Resistor, 220 k Ohm ±5%, 1/4W
Resistor, 68 k Ohm ±5%, 1/4W
Switch, SPOT
Socket, 8-Pin
Socket, 14-Pin
Blank Printed Circuit Board
PART NO.
100-1263
100-1053
100-3953
100-1543
100-2263
100-6853
345-0120
417-0800
417-1400
514-1503
QTY.
1
1
2
2
1
1
1
1
2
1
