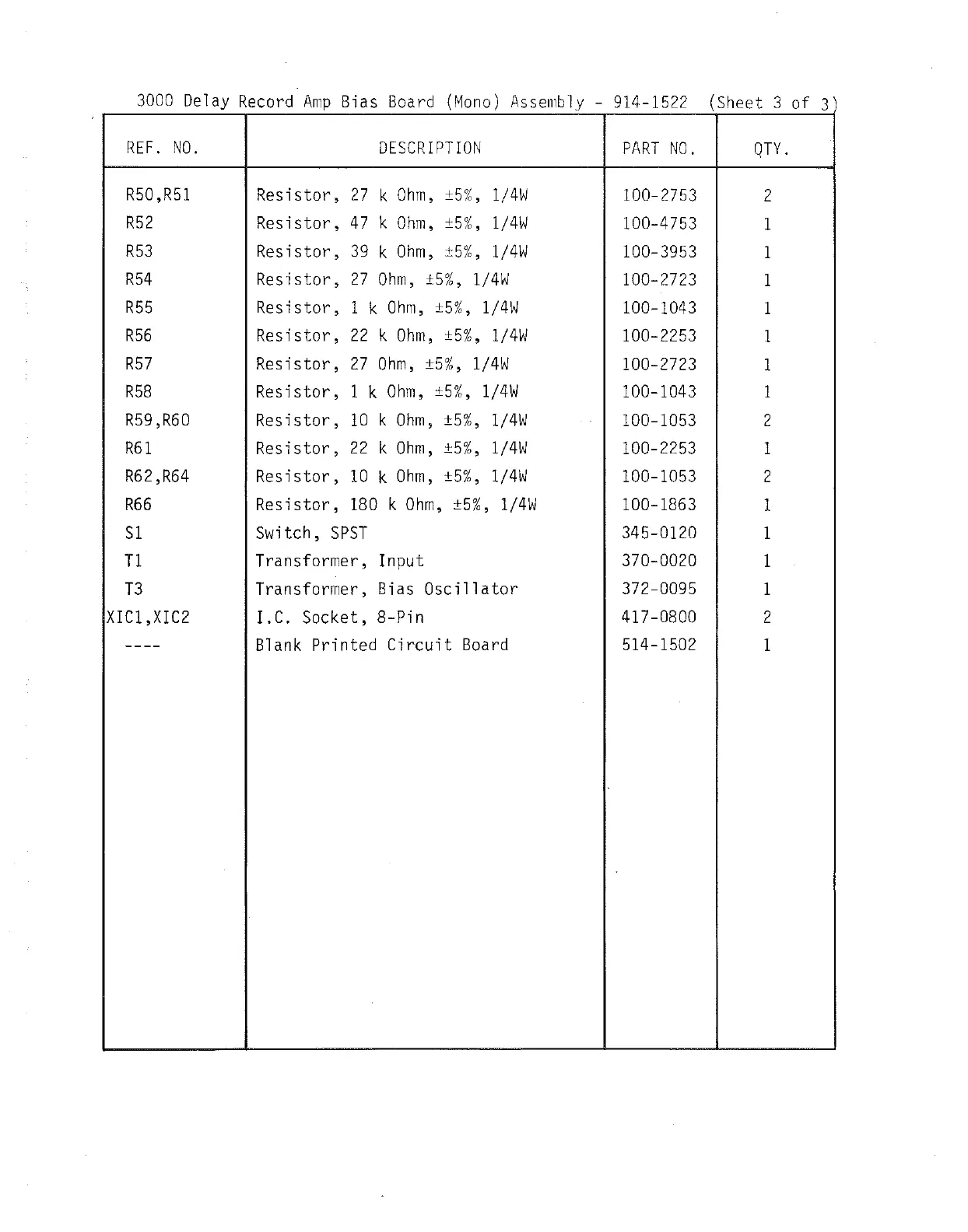

Broadcast Electronics 3000 Series - Page 106

3000
De
ay Record Amp Bias Board Mono Assembly -
914-1522
(Sheet 3 of
3
REF.
NO. DESCRIPTION
PART NO.
QTY.
R50,R51 Resistor, 27
k
Ohm, ±5%,
1/4W 100-2753
2
R52 Resistor,
47
k Ohm, ±5%,
1/4W
100-4753
1
R53 Resistor,
39 k
Ohm, ±5%,
1/4W 100-3953
1
R54 Resistor, 27 Ohm, ±5%, 1/4W
100-2723
1
R55
Resistor, 1 k Ohm, ±5%, 1/4W
100-1043
1
R56 Resistor, 22 k Ohm, ±5%, 1/4W
100-2253
1
R57 Resistor, 27 Ohm, ±5%, 1/4W
100-2723
1
R58
Resistor, 1 k Ohm, ±5%, 1/4W
100-1043 1
R59,R60 Resistor, 10 k Ohm, ±5%,
1/4W 100-1053 2
R61
Resistor, 22 k Ohm, ±5%, 1/4W
100-2253 1
R62,R64 Resistor, 10 k Ohm, ±5%, 1/4W
100-1053 2
R66 Resistor,
180 k Ohm, ±5%, 1/4W
100-1863
1
Sl
Switch, SPST 345-0120
1
T1
Transformer, Input 370-0020
1
T3
Transformer, Bias Oscillator 372-0095
1
XIC1,XIC2 I.C. Socket, S-Pin 417-0800 2
----
Blank Printed Circuit Board 514-1502
1
