Broadcast Electronics 3000 Series - Page 107

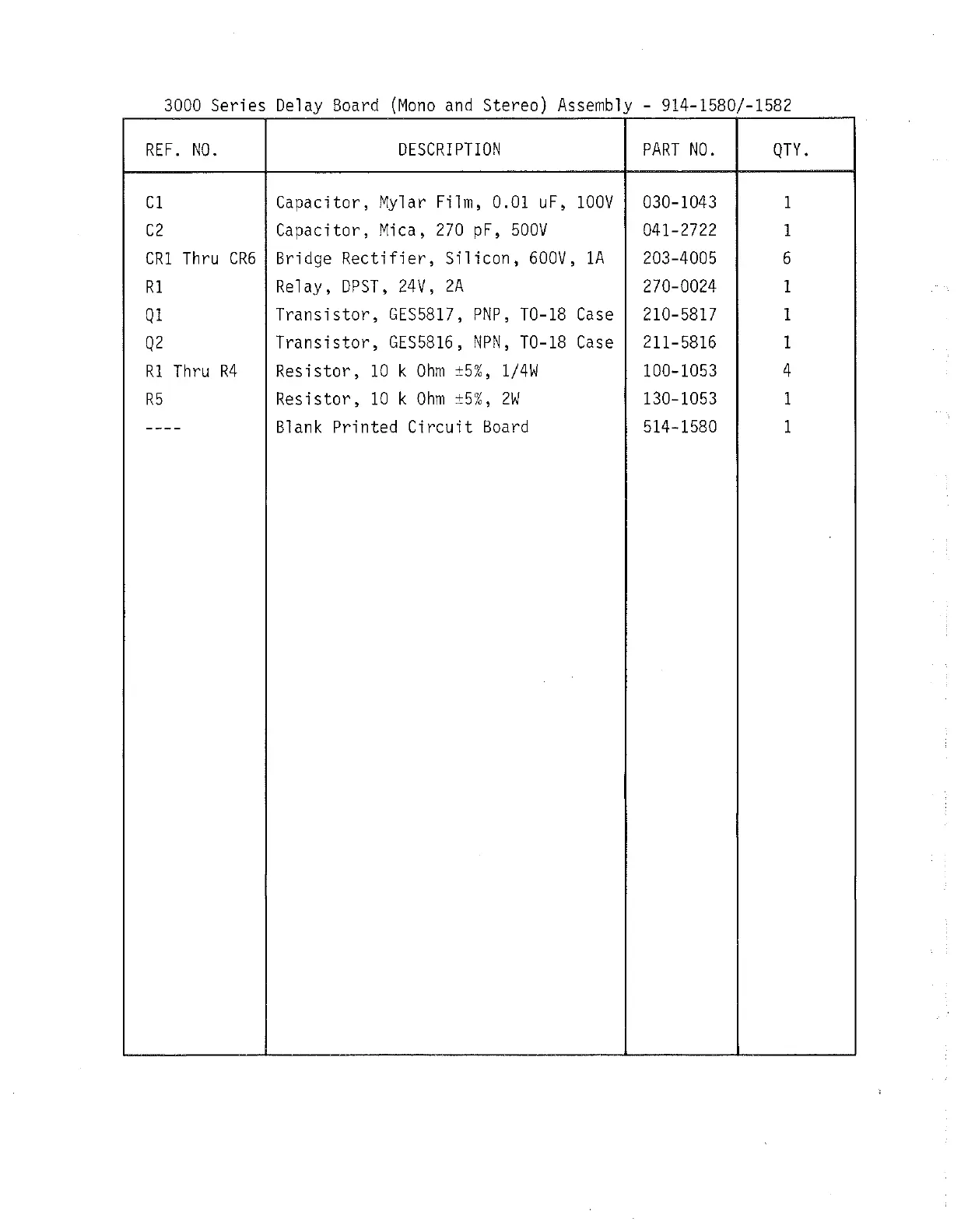

3000 Series Delay Board (Mono and Stereo) Assembly - 914-1580/-1582
REF. NO. DESCRIPTION PART NO. QTY.
C1
Capacitor, Mylar Film, 0.01 uF, 100V
030-1043 1
C2
Capacitor, Mica, 270 pF, 500V
041-2722 1
CR1
Thru CR6
Bridge Rectifier, Silicon, 600V, 1A
203-4005 6
R1
Relay, DPST, 24V, 2A
270-0024 1
Q1
Transistor, GES5817, PNP, T0-18
Case 210-5817 1
Q2
Transistor, GES5816, NPN, T0-18
Case 211-5816 1
R1 Thru R4
Resistor, 10 k Ohm ±5%, 1/4W 100-1053
4
R5
Resistor, 10 k Ohm ±5%, 2W 130-1053
1
----
Blank Printed Circuit Board 514-1580
1
