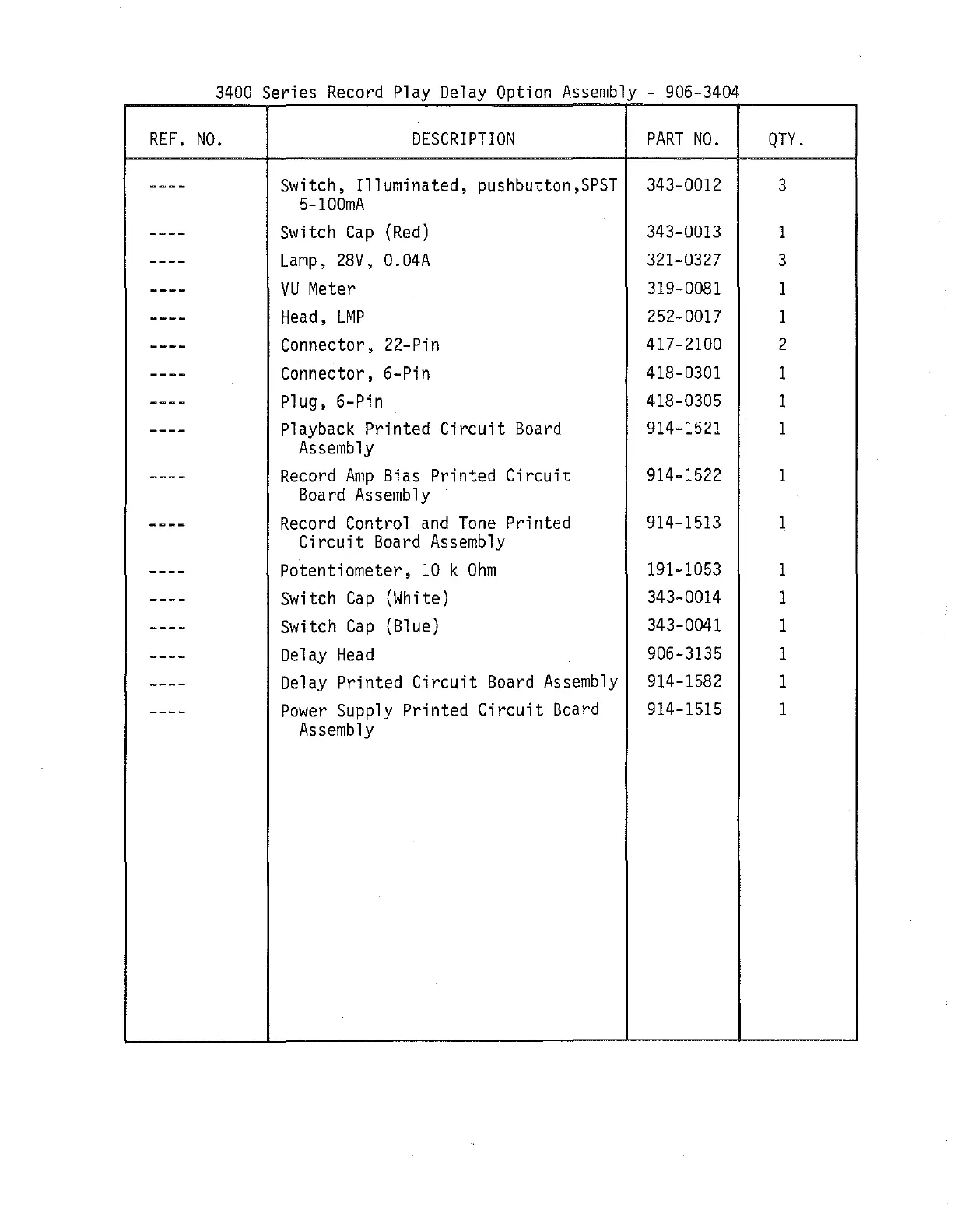

3400 Series Record Play Delay Option Assembly - 906-3404
REF.
NO. DESCRIPTION
PART NO.
QTY.
----
Switch, Illuminated, pushbutton,SPST 343-0012 3
5-100mA
----
Switch Cap (Red)
343-0013
1
----
Lamp, 28V, 0.04A
321-0327
3
----
VU Meter
319-0081
1
----
Head, LMP
252-0017
1
----
Connector, 22-Pin
417-2100 2
----
Connector, 6-Pin
418-0301
1
----
Plug, 6-Pin
418-0305
1
----
Playback Printed Circuit Board 914-1521 1
Assembly
----
Record Amp Bias Printed Circuit
914-1522
1
Board Assembly
----
Record Control and Tone Printed
914-1513 1
Circuit Board Assembly
----
Potentiometer, 10 k Ohm
191-1053 1
----
Switch Cap (White)
343-0014
1
----
Switch Cap (Blue)
343-0041
1
----
Delay Head
906-3135
1
----
Delay Printed Circuit
Board Assembly
914-1582
1
----
Power Supply
Printed
Circuit Board
914-1515 1
Assembly
