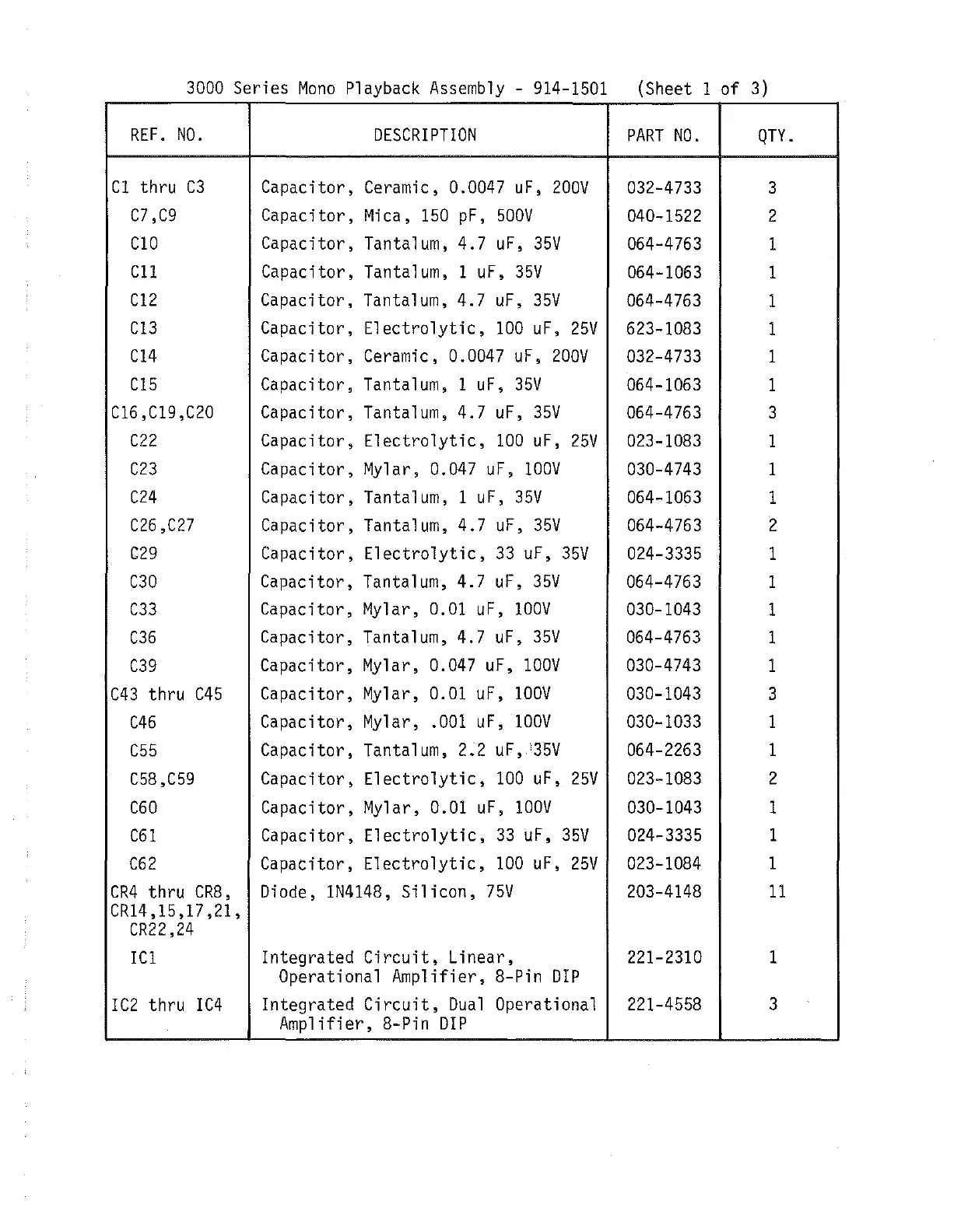

3000
Series
Mono
Playback
Assembly
- 914-1501 (Sheet 1 of
3)
REF.
NO.
DESCRIPTION
PART
NO.
QTY.
C1
thru
C3
Capacitor, Ceramic, 0.0047
uF,
200V
032-4733 3
C7,C9
Capacitor, Mica,
150
pF,
500V
040-1522 2
C10
Capacitor, Tantalum, 4.7
uF,
35V
064-4763 1
Cll Capacitor, Tantalum, 1 uF,
35V
064-1063 1
C12
Capacitor, Tantalum, 4.7
uF,
35V
064-4763
1
C13
Capacitor,
Electrolytic,
100
uF,
25V
623-1083
1
C14
Capac
it
or,
Ceramic, 0.0047
uF,
200V
032-4733 1
C15
Capacitor, Tantalum, 1 uF,
35V
064-1063
1
C16,C19,C20
Capac
it
or,
Tantalum, 4.7
uF,
35V
064-4763 3
C22
Capacitor,
Electrolytic,
100
uF,
25V
023-1083
1
C23
Capacitor, Mylar, 0.047 uF,
100V
030-4743 1
C24
Capacitor,
Tantalum, 1 uF,
35V
064-1063
1
C26,C27
Capacitor,
Tantalum, 4.7 uF,
35V
064-4763 2
C29
Capacitor,
Electrolytic,
33
uF,
35V
024-3335 1
C30
Capacitor, Tantalum, 4.7 uF,
35V
064-4763 1
C33
Capacitor, Mylar, 0.01
uF,
100V
030-1043
1
C36
Capacitor, Tantalum, 4.7 uF,
35V
064-4763
1
C39
Capacitor,
Mylar, 0.047 uF,
100V
030-4743
1
C43
thru
C45
Capacitor, Mylar, 0.01 uF,
100V
030-1043 3
C46
Capacitor, Mylar, .001 uF,
100V
030-1033 1
C55
Capacitor, Tantalum, 2.2 uF,
'35V
064-2263 1
C58,C59
Capacitor,
Electrolytic,
100
uF,
25V
023-1083 2
C60
Capacitor,
Mylar, 0.01
uF,
100V
030-1043 1
C61
Capacitor,
Electrolytic,
33
uF,
35V
024-3335 1
C62
Capacitor,
Electrolytic,
100
uF,
25V
023-1084
1
CR4
thru
CR8,
Diode,
1N4148,
Silicon,
75V
203-4148
11
CR14,15,17,21,
CR22,24
IC1
Integrated
Circuit,
Linear,
221-2310 1
Operational Amplifier,
8-Pin
DIP
IC2
thru
IC4
Integrated
Circuit,
Dual
Operational 221-4558 3
Amplifier,
8-Pin
DIP
To Next Page
