Broadcast Electronics 3000 Series - Page 55

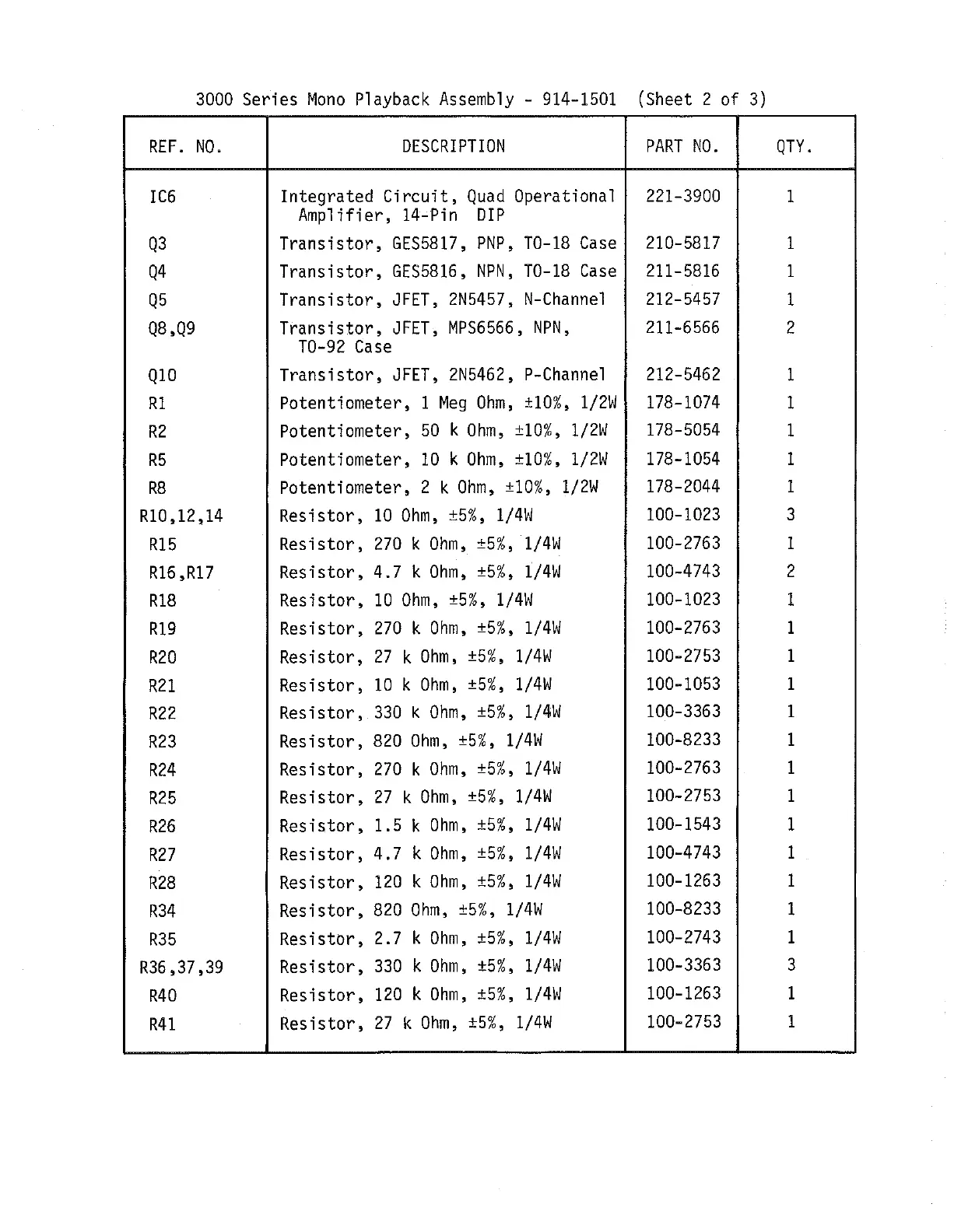

3000 Series Mono Playback Assembly - 914-1501 (Sheet 2 of 3)
REF. NO.
DESCRIPTION PART NO. QTY.
IC6
Integrated Circuit, Quad Operational 221-3900
1
Amplifier,
14-Pin DIP
Q3
Transistor, GES5817, PNP, T0-18 Case 210-5817 1
04
Transistor, GES5816, NPN, T0-18 Case 211-5816 1
Q5
Transistor, JFET, 2N5457, N-Channel 212-5457
1
Q8,Q9
Transistor, JFET, MPS6566, NPN,
211-6566
2
T0-92 Case
Q10
Transistor, JFET, 2N5462, P-Channel 212-5462
1
R1
Potentiometer,
1
Meg Ohm, ±10%, 1/2W 178-1074
1
R2
Potentiometer,
50 k Ohm, ±10%, 1/2W 178-5054
1
R5
Potentiometer,
10 k Ohm, ±10%, 1/2W 178-1054 1
R8
Potentiometer,
2 k
Ohm, ±10%, 1/2W 178-2044 1
R10,12,14 Resistor,
10 Ohm, ±5%, 1/4W
100-1023 3
R15
Resistor, 270 k Ohm, ±5%, 1/4W
100-2763 1
R16,R17 Resistor,
4.7 k Ohm, ±5%, 1/4W
100-4743 2
R18
Resistor,
10 Ohm, ±5%, 1/4W
100-1023
1
R19
Resistor,
270 k Ohm, ±5%, 1/4W 100-2763 1
R20
Resistor,
27 k Ohm, ±5%, 1/4W
100-2753 1
R21
Resistor,
10 k Ohm, ±5%, 1/4W
100-1053 1
R22
Resistor,
330 k Ohm, ±5%, 1/4W
100-3363 1
R23
Resistor,
820 Ohm, ±5%, 1/4W
100-8233
1
R24
Resistor,
270 k Ohm, ±5%, 1/4W
100-2763 1
R25
Resistor,
27 k Ohm, ±5%, 1/4W
100-2753
1
R26
Resistor,
1.5 k Ohm,
±5%, 1/4W
100-1543
1
R27
Resistor,
4.7 k Ohm, ±5%, 1/4W
100-4743 1
R28
Resistor,
120 k Ohm, ±5%, 1/4W
100-1263 1
R34
Resistor,
820 Ohm, ±5%, 1/4W
100-8233
1
R35
Resistor,
2.7
k
Ohm, ±5%, 1/4W
100-2743 1
R36,37,39
Resistor,
330 k Ohm, ±5%, 1/4W
100-3363 3
R40
Resistor,
120 k Ohm, ±5%, 1/4W
100-1263 1
R41
Res is tor,
27 k Ohm, ±5%, 1/4W
100-2753
1
