Broadcast Electronics 3000 Series - Page 56

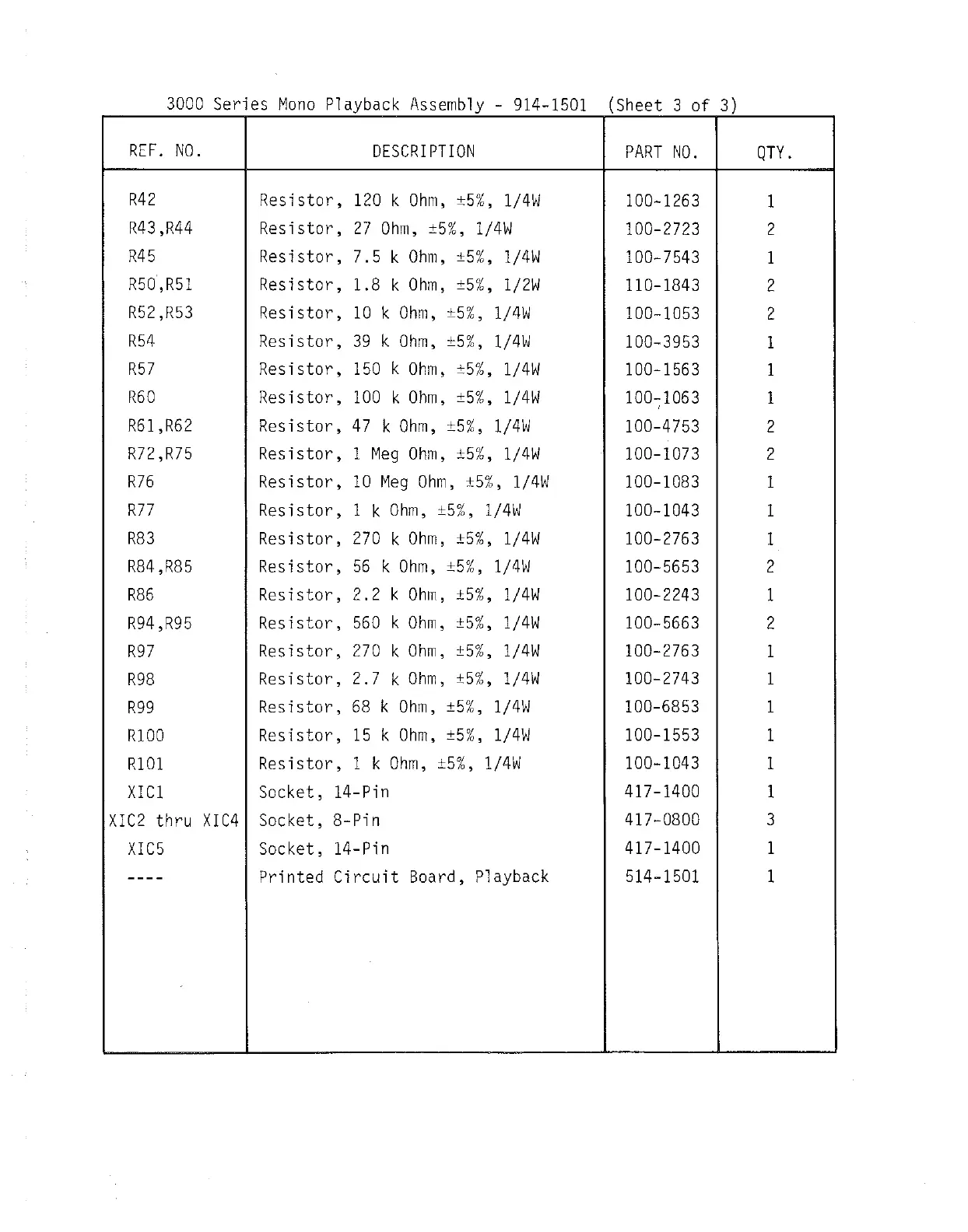

3000 Series Mono Playback Assembly - 914-1501 (Sheet 3 of 3)
REF. NO.
R42
R43,R44
R45
R50,R51
R52,R53
R54
R57
R60
R61 ,R62
R72,R75
R76
R77
R83
R84,R85
R86
R94 ,R95
R97
R98
R99
R100
R101
XIC1
XIC2 thru XIC4
XIC5
DESCRIPTION
Resistor, 120 k Ohm, ±5%, 1/4W
Resistor, 27 Ohm, ±5%, 1/4W
Resistor, 7.5 k Ohm, ±5%, 1/4W
Resistor, 1.8 k Ohm, ±5%, 1/2W
Resistor, 10 k Ohm, ±5%, 1/4W
Resistor, 39 k Ohm, ±5%, 1/4W
Resistor, 150 k Ohm, ±5%, 1/4W
Resistor, 100 k Ohm, ±5%, 1/4W
Resistor, 47 k Ohm, ±5%, 1/4W
Resistor, 1 Meg Ohm, ±5%, 1/4W
Resistor, 10 Meg Ohm, ±5%, 1/4W
Resistor, 1 k Ohm, ±5%, 1/4W
Resistor, 270 k Ohm, ±5%, 1/4W
Resistor, 56 k Ohm, ±5%, 1/4W
Resistor, 2.2 k Ohm, ±5%, 1/4W
Resistor, 560 k Ohm, ±5%, 1/4W
Resistor, 270 k Ohm, ±5%, 1/4W
Resistor, 2.7 k Ohm, ±5%, 1/4W
Resistor, 68 k Ohm, ±5%, 1/4W
Resistor, 15 k Ohm, ±5%, 1/4W
Resistor, 1 k Ohm, ±5%, 1/4W
Socket, 14-Pin
Socket, 8-Pin
Socket, 14-Pin
Printed Circuit Board, Playback
PART NO.
100-1263
100-2723
100-7543
110-1843
100-1053
100-3953
100-1563
100-1063
100-4753
100-1073
100-1083
100-1043
100-2763
100-5653
100-2243
100-5663
100-2763
100-2743
100-6853
100-1553
100-1043
417-1400
417-0800
417-1400
514-1501
QTY.
1
2
1
2
2
1
1
1
2
2
1
1
1
2
1
2
1
1
1
1
1
1
3
1
1
