Broadcast Electronics 3000 Series - Page 60

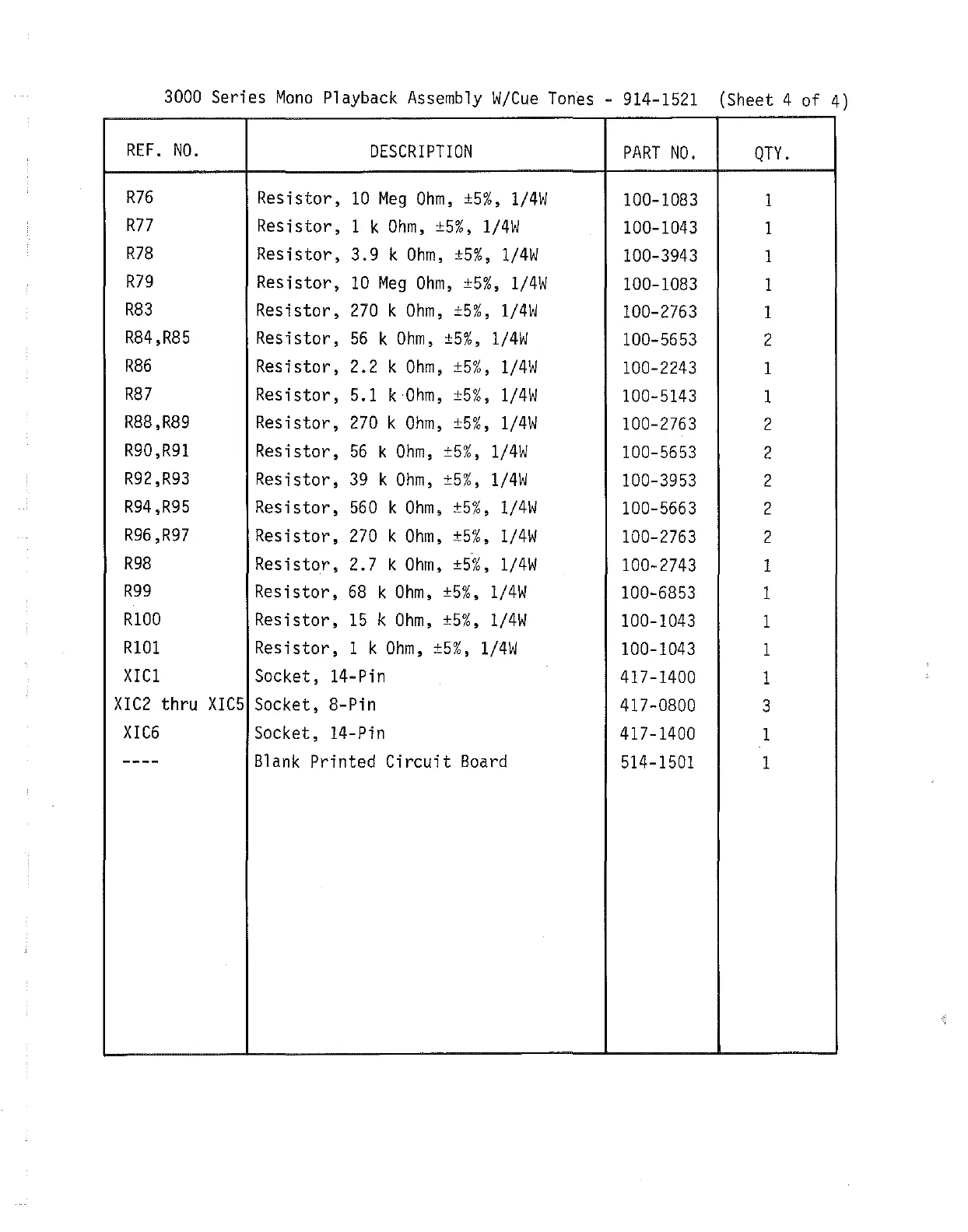

3000 Series Mono Playback Assembly W/Cue Tones - 914-1521 (Sheet 4 of 4)
REF.
NO.
DESCRIPTION
PART NO.
QTY.
R76
Resistor,
10 Meg Ohm, ±5%,
1/4W
100-1083
1
R77
Resistor,
1 k Ohm, ±5%, 1/4W
100-1043
1
R78
Resistor,
3.9 k Ohm, ±5%, 1/4W
100-3943
1
R79
Resistor, 10 Meg Ohm, ±5%, 1/4W
100-1083
1
R83
Resistor,
270 k Ohm, ±5%, 1/4W
100-2763
1
R84 ,R85
Resistor, 56 k Ohm, ±5%, 1/4W
100-5653
2
R86
Resistor,
2. 2 k Ohm, ±5%,
1/4W
100-2243
1
R87
Resistor, 5.1 k Ohm, ±5%, 1/4W
100-5143
1
R88,R89
Resistor, 270 k Ohm, ±5%, 1/4W
100-2763
2
R90,R91
Resistor,
56 k Ohm, ±5%, 1/4W
100-5653
2
R92,R93
Resistor, 39 k Ohm, ±5%, 1/4W
100-3953
2
R94,R95
Resistor, 560 k Ohm, ±5%, 1/4W
100-5663 2
R96,R97
Resistor, 270 k Ohm, ±5%, 1/4W
100-2763 2
R98
Resistor, 2.7 k Ohm, ±5%, 1/4W
100-2743
1
R99
Resistor, 68 k Ohm, ±5%, 1/4W
100-6853
1
R100 Resistor,
15 k Ohm, ±5%, 1/4W
100-1043
1
R101
Resistor, 1 k Ohm, ±5%, 1/4W
100-1043
1
XIC1 Socket,
14-Pin
417-1400
1
XIC2 thru XIC5
Socket, 8-Pin
417-0800
3
XIC6
Socket, 14-Pin
417-1400
1
----
Blank Printed Circuit Board
514-1501
1
