Broadcast Electronics 3000 Series - Page 61

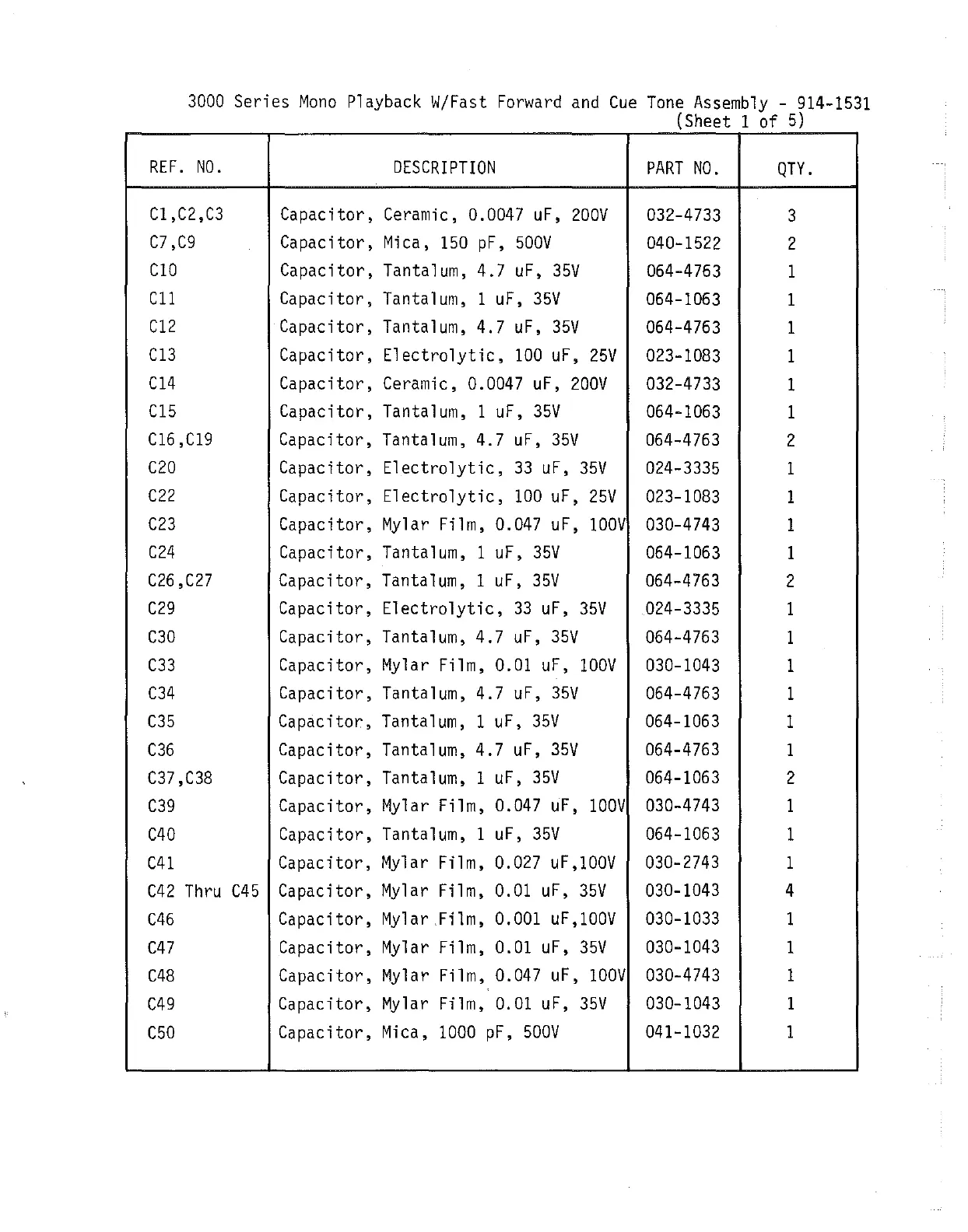

3000 Series Mono Playback W/Fast Forward and Cue Tone Assembly - 914-1531
(Sheet 1 of
5)
REF. NO.
DESCRIPTION
PART NO.
QTY.
C1,C2,C3 Capacitor,
Ceramic, 0.0047
uF, 200V
032-4733
3
C7,C9
Capacitor, Mica, 150 pF, 500V
040-1522
2
C10 Capacitor, Tantalum,
4.7
uF, 35V
064-4763
1
C11
Capacitor,
Tantalum, 1 uF, 35V
064-1063
1
C12 Capacitor,
Tantalum, 4.7 uF, 35V
064-4763
1
C13 Capacitor, Electrolytic, 100 uF,
25V 023-1083
1
C14 Capacitor, Ceramic, 0.0047 uF, 200V
032-4733
1
C15 Capacitor, Tantalum, 1 uF, 35V
064-1063
1
C16,Cl9
Capacitor,
Tantalum, 4.7 uF, 35V
064-4763
2
C20 Capacitor,
Electrolytic, 33 uF, 35V 024-3335
1
C22 Capacitor, Electrolytic, 100 uF,
25V 023-1083
1
C23 Capacitor, Mylar Film, 0.047 uF,
100V 030-4743
1
C24 Capacitor, Tantalum, 1 uF, 35V
064-1063
1
C26 ,C27 Capacitor, Tantalum, 1 uF, 35V
064-4763
2
C29 Capacitor, Electrolytic, 33 uF,
35V 024-3335
1
C30 Capacitor, Tantalum, 4.7 uF, 35V
064-4763
1
C33
Capacitor, Mylar Film, 0.01 uF, 100V
030-1043
1
C34
Capacitor, Tanta 1 um, 4.7 uF, 35V
064-4763
1
C35 Capacitor, Tantalum, 1 uF, 35V 064-1063
1
C36
Capacitor, Tantalum, 4. 7 uF, 35V 064-4763
1
C37,C38 Capacitor,
Tantalum,
1
uF, 35V 064-1063
2
C39
Capacitor, Mylar Film, 0.047 uF,
100V
030-4743
1
C40
Capacitor, Tantalum, 1
uF, 35V
064-1063
1
C41
Capacitor, Mylar Film, 0.027 uF,100V
030-2743 1
C42 Thru C45
Capacitor,
Mylar Film, 0.01 uF, 35V 030-1043
4
C46
Capacitor, Mylar .Fi1m, 0.001 uF,100V 030-1033
1
C47
Capacitor, Mylar Fi1m, 0.01 uF, 35V 030-1043
1
C48
Capacitor, Mylar Film, 0.047 uF, 100V 030-4743 1
C49
Capacitor,
Mylar
Fi 1m, 0.01 uF, 35V 030-1043
1
C50
Capacitor, Mica, 1000 pF, 500V 041-1032 1
