Broadcast Electronics 3000 Series - Page 62

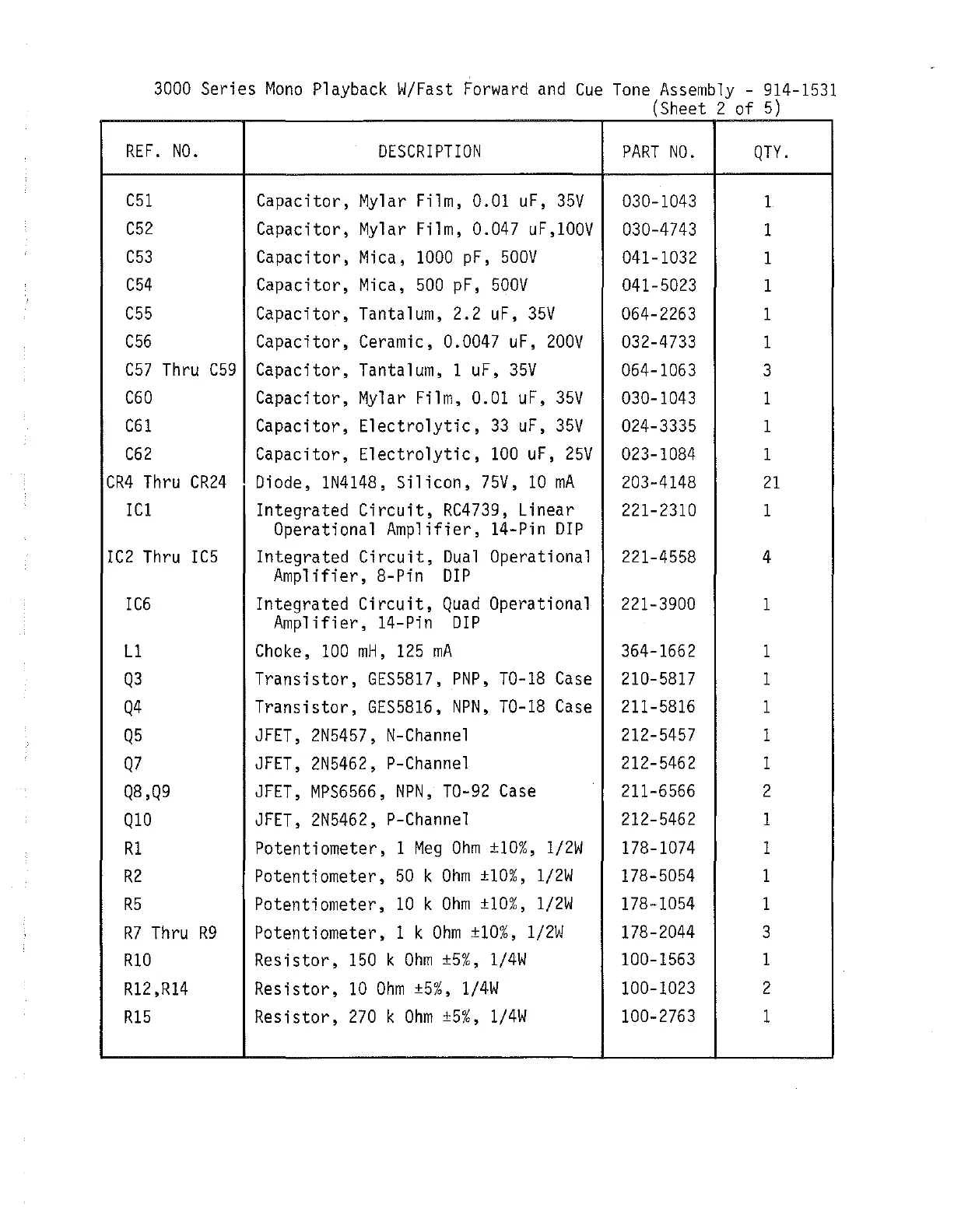

3000 Series Mono Playback W/Fast Forward and Cue Tone Assembly - 914-1531
(Sheet 2 of 5)
REF. NO.
C51
C52
C53
C54
C55
C56
C57
Thru C59
C60
C61
C62
CR4 Thru CR24
IC1
IC2 Thru res
IC6
Ll
Q3
Q4
Q5
Q7
Q8,Q9
Q10
R1
R2
R5
R7
Thru R9
R10
R12,R14
R15
DESCRIPTION
Capacitor, Mylar Film, 0.01 uF, 35V
Capacitor, Mylar Film, 0.047 uF,100V
Capacitor, Mica, 1000 pF, 500V
Capacitor, Mica, 500 pF, 500V
Capacitor, Tantalum, 2.2 uF, 35V
Capacitor, Ceramic, 0.0047 uF, 200V
Capacitor, Tantalum, 1 uF, 35V
Capacitor, Mylar Film, 0.01 uF, 35V
Capacitor, Electrolytic, 33 uF, 35V
Capacitor, Electrolytic, 100 uF, 25V
Diode, 1N4148, Silicon, 75V, 10 mA
Integrated Circuit, RC4739, Linear
Operational Amplifier, 14-Pin DIP
Integrated Circuit, Dual Operational
Amplifier, 8-Pin DIP
Integrated Circuit, Quad Operational
Amplifier, 14-Pin DIP
Choke, 100 mH, 125 mA
Transistor, GES5817, PNP, T0-18 Case
Transistor, GES5816, NPN, T0-18 Case
JFET, 2N5457, N-Channel
JFET, 2N5462, P-Channel
JFET, MPS6566, NPN, T0-92 Case
JFET, 2N5462, P-Channel
Potentiometer, 1 Meg Ohm ±10%, 1/2W
Potentiometer, 50 k Ohm ±10%, 1/2W
Potentiometer, 10 k Ohm ±10%, 1/2W
Potentiometer, 1 k Ohm ±10%, 1/2W
Resistor, 150 k Ohm ±5%, 1/4W
Resistor, 10 Ohm ±5%, 1/4W
Resistor, 270 k Ohm ±5%, 1/4W
PART NO.
030-1043
030-4743
041-1032
041-5023
064-2263
032-4733
064-1063
030-1043
024-3335
023-1084
203-4148
221-2310
221-4558
221-3900
364-1662
210-5817
211-5816
212-5457
212-5462
211-6566
212-5462
178-1074
178-5054
178-1054
178-2044
100-1563
100-1023
100-2763
QTY.
1
1
1
1
1
1
3
1
1
1
21
1
4
1
1
1
1
1
1
2
1
1
1
1
3
1
2
1
