Broadcast Electronics 3000 Series - Page 63

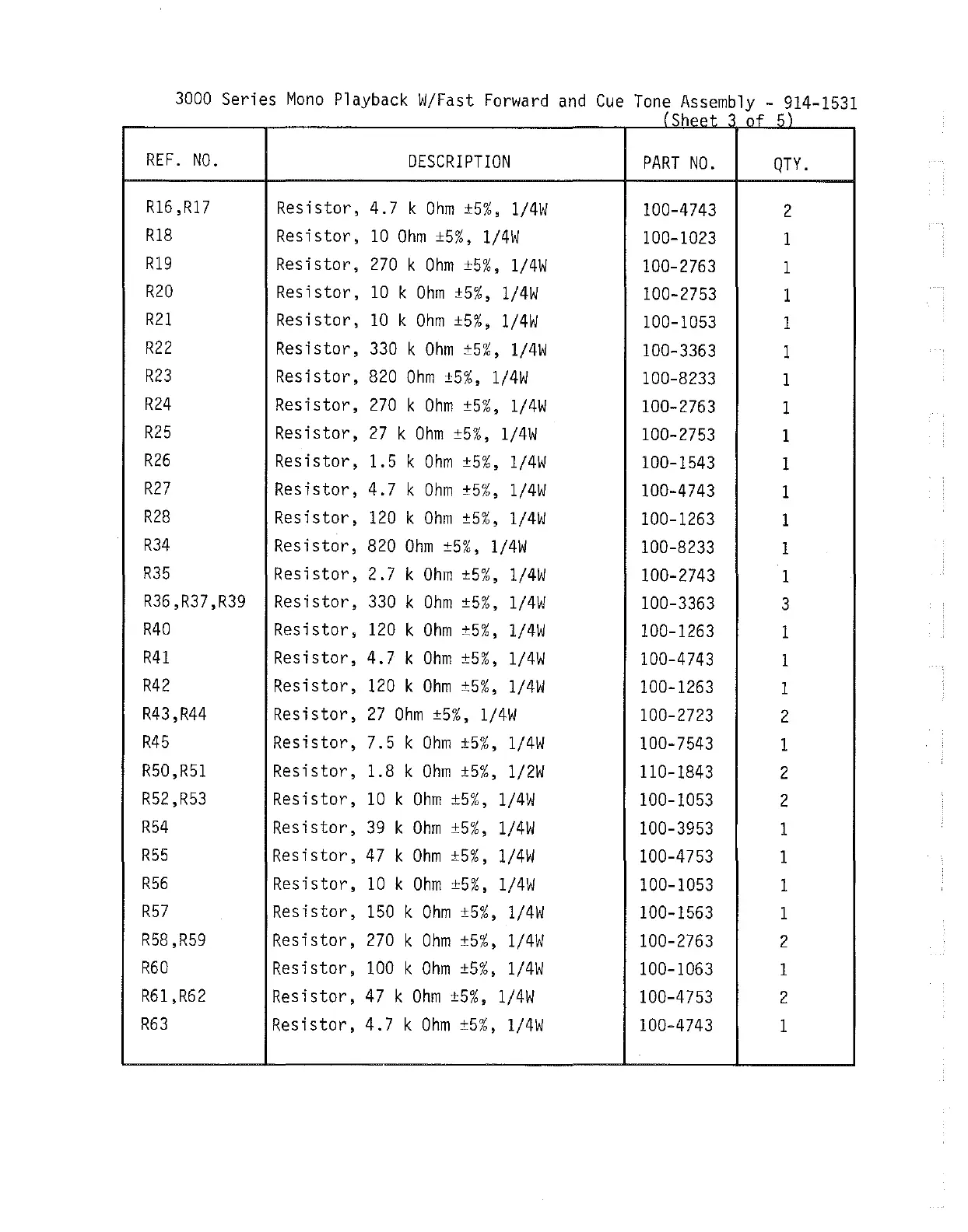

3000 Series Mono Playback W/Fast Forward and Cue Tone Assembly - 914-1531
I 'h""t ' ;,f ~ \
REF. NO.
DESCRIPTION
PART NO.
QTY.
R16,R17
Resistor,
4.7
k
Ohm ±5%, 1/4W
100-4743
2
R18
Resistor,
10 Ohm ±5%, 1/4W
100-1023
1
R19
Resistor,
270 k Ohm ±5%, 1/4W
100-2763
1
R20
Resistor,
10 k Ohm ±5%, 1/4W
100-2753
1
R21
Resistor,
10 k Ohm ±5%, 1/4W
100-1053
1
R22
Resistor,
330 k Ohm ±5%, 1/4W
100-3363
1
R23
Resistor,
820 Ohm ±5%, 1/4W
100-8233
1
R24
Resistor,
270 k Ohm ±5%, 1/4W
100-2763
1
R25
Resistor,
27 k Ohm ±5%, 1/4W
100-2753
1
R26
Resistor,
1.5 k Ohm ±5%,
1/4W
100-1543
1
R27
Resistor,
4.7 k Ohm ±5%, 1/4W
100-4743
1
R28
Resistor,
120 k Ohm ±5%, 1/4W
100-1263
1
R34
Resistor,
820 Ohm ±5%, 1/4W
100-8233
1
R35
Resistor,
2.7 k Ohm ±5%,
1/4W
100-2743
1
R36,R37,R39
Resistor, 330 k Ohm ±5%,
1/4W
100-3363
3
R40 Resistor,
120 k Ohm ±5%,
1/4W
100-1263
1
R41 Resistor,
4.7 k Ohm ±5%,
1/4W
100-4743
1
R42 Resistor,
120 k Ohm ±5%,
1/4W
100-1263
1
R43,R44
Resistor, 27 Ohm ±5%, 1/4W
100-2723
2
R45 Resistor,
7.5 k Ohm ±5%, 1/4W
100-7543
1
R50,R51 Resistor,
1.8 k Ohm ±5%, 1/2W
110-1843
2
R52,R53 Resistor,
10 k Ohm ±5%,
1/4W 100-1053
2
R54 Resistor,
39 k Ohm ±5%,
1/4W 100-3953
1
R55 Resistor, 47 k Ohm ±5%,
1/4W 100-4753
1
R56 Resistor,
10 k Ohm ±5%,
1/4W
100-1053
1
R57 Resistor,
150 k Ohm ±5%,
1/4W 100-1563
1
R58, R59
Resistor,
270 k Ohm ±5%, 1/4W
100-2763
2
R60
Resistor, 100 k Ohm ±5%, 1/4W
100-1063
1
R61,R62
Resistor,
47 k Ohm ±5%, 1/4W
100-4753
2
R63
Resistor, 4.7 k Ohm ±5%, 1/4W
100-4743
1
