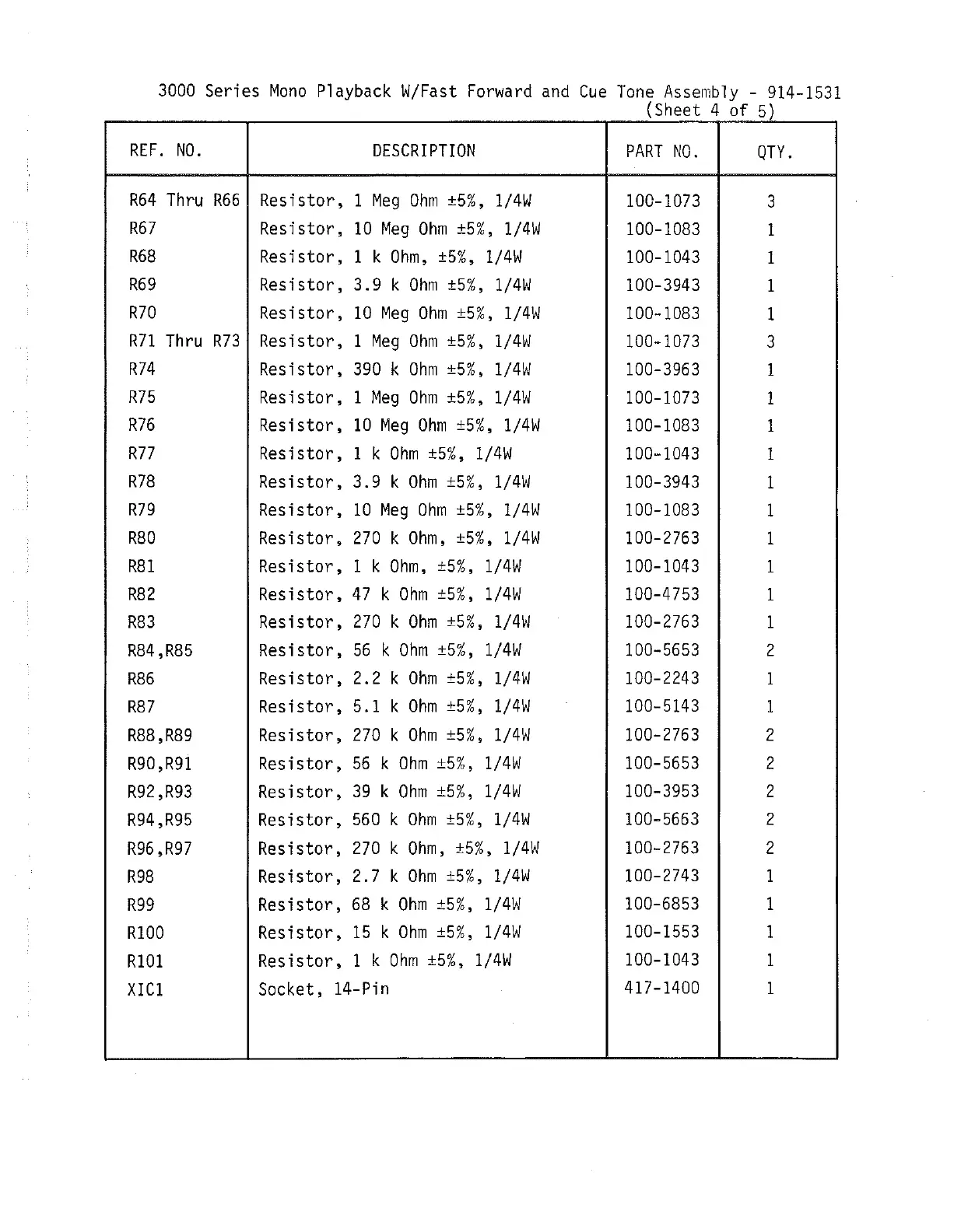

Broadcast Electronics 3000 Series - Page 64

3000 Series Mono Playback W/Fast Forward and Cue Tone Assembly - 914-1531
(Sheet 4 of 5)
REF. NO.
DESCRIPTION
PART NO.
QTY.
R64 Thru R66 Resistor,
1
Meg Ohm ±5%,
1/4W
100-1073
3
R67
Resistor, 10 Meg Ohm ±5%, 1/4W
100-1083
1
R68
Resistor, 1 k Ohm, ±5%, 1/4W
100-1043
1
R69 Resistor, 3.9 k Ohm ±5%, 1/4W
100-3943
1
R70 Resistor, 10 Meg Ohm ±5%, 1/4W
100-1083
1
R?l Thru R73 Resistor, 1 Meg Ohm ±5%,
1/4W 100-1073
3
R74 Resistor, 390 k Ohm ±5%, 1/4W
100-3963
1
R75
Resistor, 1 Meg Ohm ±5%, 1/4W
100-1073
1
R76 Resistor, 10 Meg Ohm ±5%, 1/4W
100-1083
1
R77 Resistor, 1 k Ohm ±5%, 1/4W 100-1043
1
R78 Resistor, 3.9 k Ohm ±5%, 1/4W
100-3943
1
R79 Resistor, 10 Meg Ohm ±5%, 1/4W
100-1083
1
R80
Resistor, 270 k Ohm, ±5%, 1/4W
100-2763
1
R81 Resistor,
1 k Ohm, ±5%, 1/4W
100-1043
1
R82
Resistor, 47 k Ohm ±5%, 1/4W
100-4753
1
R83
Resistor, 270 k Ohm ±5%, 1/4W 100-2763
1
R84 ,R85
Resistor, 56 k Ohm ±5%, 1/4W 100-5653
2
R86
Resistor,
2.2 k Ohm ±5%,
1/4W 100-2243
1
R87
Resistor,
5.1 k Ohm ±5%, 1/4W 100-5143
1
R88,R89 Resistor, 270 k Ohm ±5%, 1/4W 100-2763 2
R90,R91 Resistor,
56 k Ohm ±5%, 1/4W 100-5653
2
R92 ,R93 Resistor, 39 k Ohm ±5%, 1/4W
100-3953
2
R94,R95 Resistor,
560 k Ohm ±5%, 1/4W 100-5663
2
R96 ,R97 Resistor, 270 k Ohm, ±5%, 1/4W 100-2763 2
R98
Resistor,
2.7 k Ohm ±5%, 1/4W 100-2743
1
R99
Resistor, 68 k Ohm ±5%, 1/4W
100-6853
1
R100
Resistor,
15 k Ohm ±5%, 1/4W 100-1553
1
R101
Resistor,
1 k Ohm ±5%, 1/4W
100-1043
1
XIC1
Socket, 14-Pin
417-1400
1
