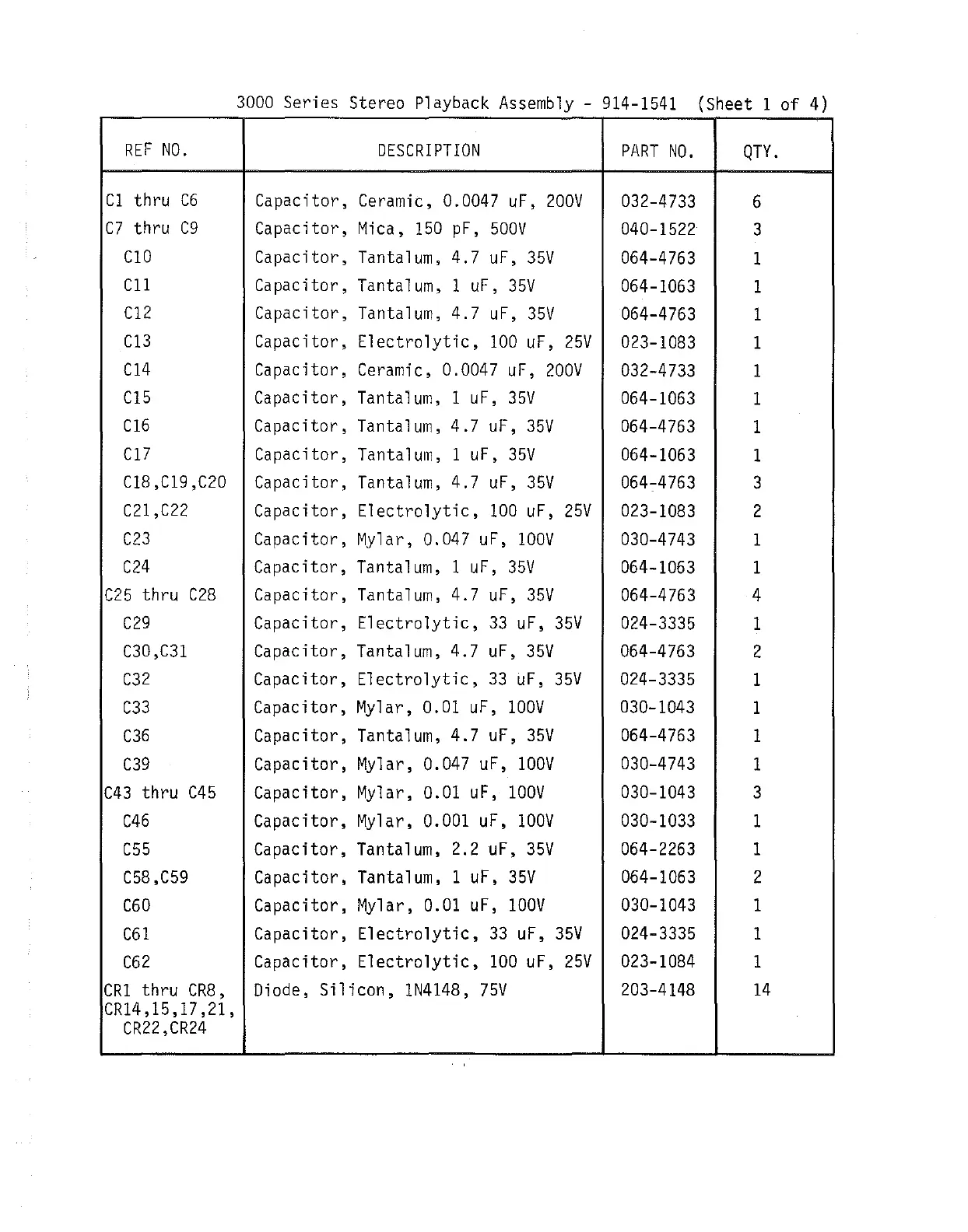

3000 Series Stereo Playback Assembly - 914-1541 (Sheet 1 of 4)
REF NO.
DESCRIPTION
PART NO.
QTY.
C1 thru C6 Capacitor,
Ceramic, 0.0047
uF, 200V
032-4733
6
C7 thru C9 Capacitor, Mica, 150 pF, 500V
040-1522
3
C10 Capacitor,
Tantalum, 4.7 uF, 35V
064-4763
1
Cll
Capacitor,
Tantalum, 1 uF, 35V
064-1063
1
C12 Capacitor,
Tantalum, 4.7 uF, 35V
064-4763 1
C13
Capac it or,
Electrolytic, 100 uF,
25V
023-1083
1
C14 Capacitor,
Ceramic, 0.0047
uF, 200V
032-4733
1
C15 Capacitor,
Tantalum,
1
uF, 35V
064-1063
1
C16 Capacitor,
Tantalum, 4. 7 uF, 35V
064-4763
1
C17 Capacitor,
Tantalum,
1 uF,
35V
064-1063
1
C18,C19,C20
Capacitor,
Tantalum,
4.7
uF, 35V
064~4763
3
C21,C22
Capacitor, Electrolytic, 100 uF, 25V
023-1083 2
C23 Capacitor, My 1 a r , 0 . 04 7 u F , 1 OOV
030-4743 1
C24 Capacitor, Tantalum, 1 uF, 35V
064-1063
1
C25 thru C28
Capacitor,
Tantalum, 4.7 uF, 35V
064-4763
4
C29 Capacitor, Electrolytic, 33 uF, 35V
024-3335
1
C30,C31 Capacitor, Tantalum, 4.7 uF, 35V
064-4763
2
C32
Capacitor, Electrolytic, 33 uF, 35V
024-3335
1
C33
Capacitor, Mylar, 0.01 uF, 100V
030-1043
1
C36
Capacitor, Tantalum, 4.7 uF, 35V 064-4763
1
C39 Capacitor,
Mylar, 0.047 uF, 100V
030-4743
1
C43 thru C45 Capacitor,
Mylar, 0.01 uF, 100V
030-1043 3
C46 Capacitor, Mylar, 0.001 uF, 100V 030-1033
1
C55 Capacitor,
Tantalum, 2.2 uF, 35V
064-2263 1
C58,C59 Capacitor,
Tantalum, 1 uF, 35V
064-1063 2
C60 Capacitor,
Mylar, 0.01 uF, 100V
030-1043 1
C61
Capacitor, Electrolytic, 33 uF, 35V 024-3335
1
C62
Capacitor, Electrolytic, 100 uF, 25V 023-1084
1
CR1 thru CRS, Diode, Silicon, 1N4148, 75V 203-4148 14
CR14,15,17,21,
CR22,CR24
