Broadcast Electronics 3000 Series - Page 67

REF. NO.
IC1
IC2
thru IC4
IC6
Q1
Q2,Q3
Q4
Q5,Q6
Q8,Q9
Q10
R1
R2
R3
R4
R5,R6
R8
R10,Rll
R12 thru R14
R15
R16,R17
R18
R19
R20
R21
R22
R23
R24
R25
R26

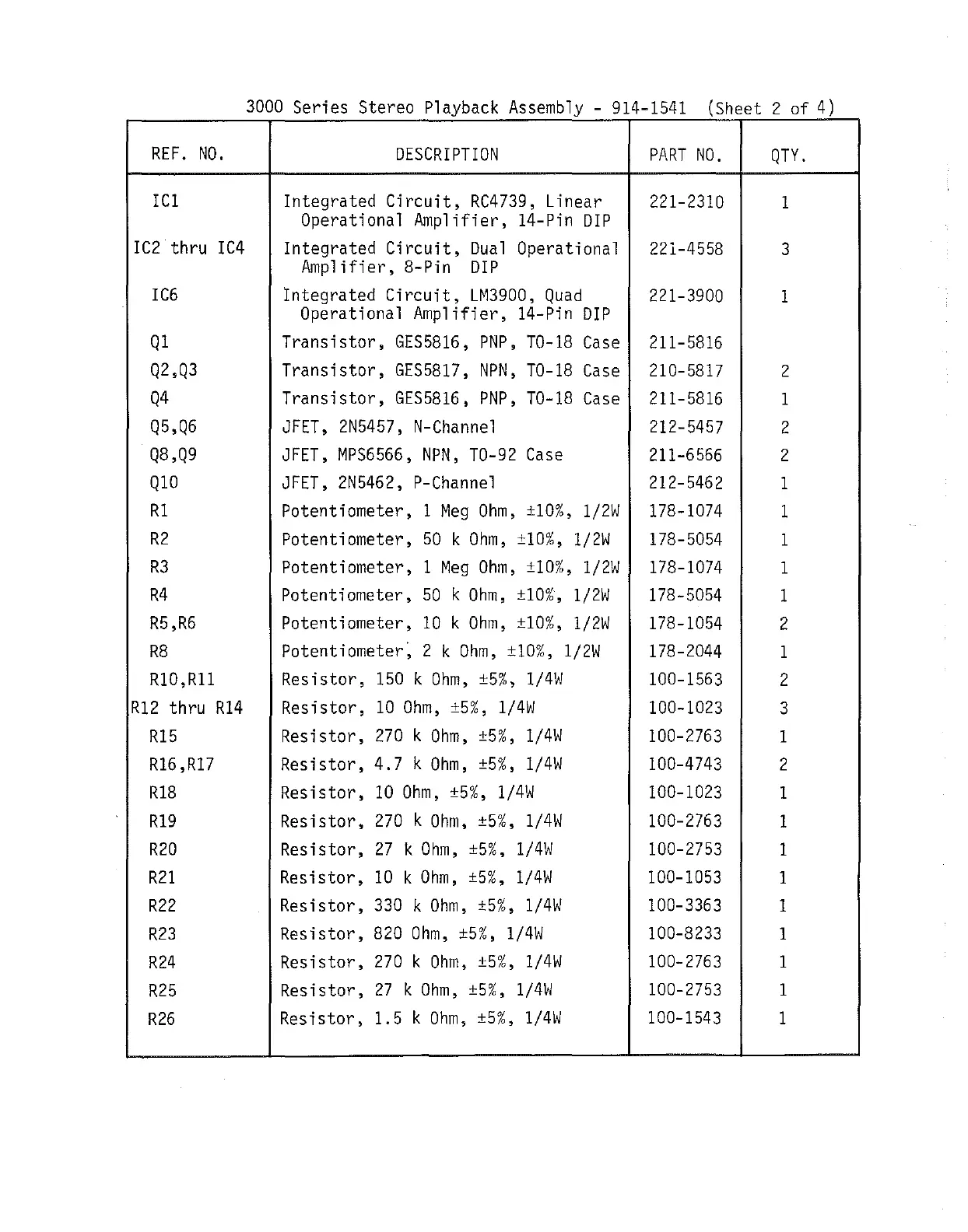

3000 Series Stereo Playback Assembly - 914-1541 (Sheet 2 of 4)
DESCRIPTION PART NO.
Integrated Circuit, RC4739, Linear 221-2310
Operational Amplifier, 14-Pin DIP
Integrated Circuit, Dual Operational 221-4558
Amplifier, 8-Pin DIP
Integrated Circuit, LM3900, Quad 221-3900
Operational Amplifier, 14-Pin DIP
Transistor, GES5816, PNP, T0-18 Case 211-5816
Transistor, GES5817, NPN, T0-18 Case 210-5817
Transistor, GES5816, PNP, T0-18 Case 211-5816
JFET, 2N5457, N-Channel 212-5457
JFET, MPS6566, NPN, T0-92 Case 211-6566
JFET, 2N5462, P-Channel 212-5462
Potentiometer, 1 Meg Ohm, ±10%, 1/2W 178-1074
Potentiometer, 50 k Ohm, ±10%, 1/2W 178-5054
Potentiometer, 1 Meg Ohm, ±10%, 1/2W 178-1074
Potentiometer, 50 k Ohm, ±10%, 1/2W 178-5054
Potentiometer, 10 k Ohm, ±10%, 1/2W 178-1054
Potentiometer~ 2 k Ohm, ±10%, 1/2W 178-2044
Resistor, 150 k Ohm, ±5%, 1/4W 100-1563
Resistor, 10 Ohm, ±5%, 1/4W 100-1023
Resistor, 270 k Ohm, ±5%, 1/4W 100-2763
Resistor, 4.7 k Ohm, ±5%, 1/4W 100-4743
Resistor, 10 Ohm, ±5%, 1/4W 100-1023
Resistor, 270 k Ohm, ±5%, 1/4W 100-2763
Resistor, 27 k Ohm, ±5%, 1/4W 100-2753
Resistor, 10 k Ohm, ±5%, 1/4W 100-1053
Resistor, 330 k Ohm, ±5%, 1/4W 100-3363
Resistor, 820 Ohm, ±5%, 1/4W 100-8233
Resistor, 270 k Ohm, ±5%, 1/4W 100-2763
Resistor, 27 k Ohm, ±5%, 1/4W 100-2753
Resistor, 1.5 k Ohm, ±5%, 1/4W 100-1543
QTY.
1
3
1
2
1
2
2
1
1
1
1
1
2
1
2
3
1
2
1
1
1
1
1
1
1
1
1
