Broadcast Electronics 3000 Series - Page 68

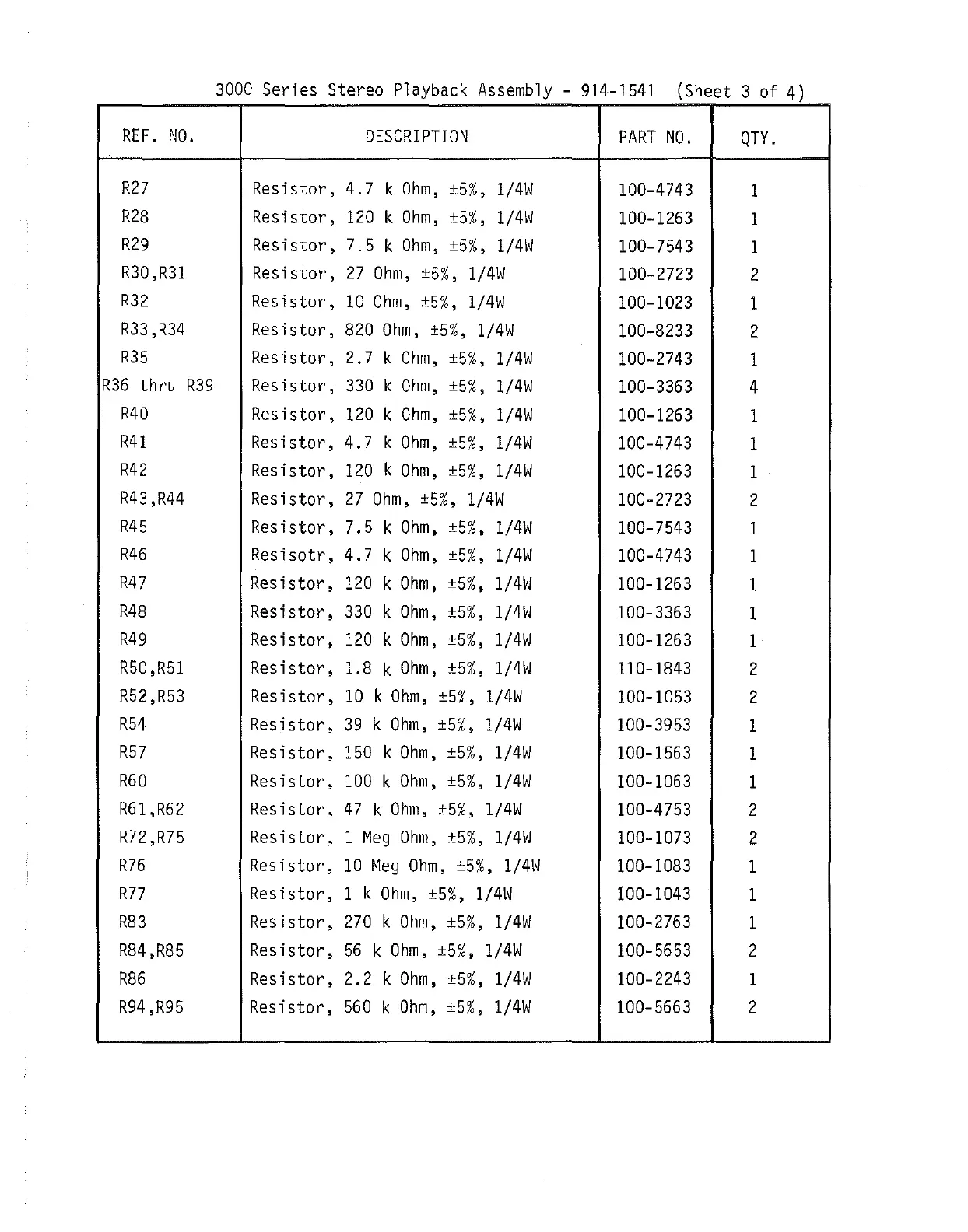

3000 Series Stereo Playback Assembly - 914-1541 (Sheet 3 of 4)
REF. NO.
DESCRIPTION
PART NO.
QTY.
R27
Resistor,
4.7 k Ohm, ±5%,
1/4W
100-4743
1
R28
Resistor, 120 k Ohm,
±5%,
1/4W 100-1263
1
R29
Resistor,
7.5 k Ohm, ±5%,
1/4W
100-7543
1
R30,R31
Resistor,
27 Ohm, ±5%, 1/4W
100-2723
2
R32
Resistor, 10 Ohm, ±5%, 1/4W
100-1023
1
R33,R34
Resistor,
820 Ohm, ±5%, 1/4W
100-8233
2
R35
Resistor, 2.7 k Ohm,
±5%, 1/4W
100-2743
1
R36 thru
R39 Resistor, 330 k Ohm, ±5%,
1/4W
100-3363
4
R40
Resistor, 120 k Ohm, ±5%,
1/4W
100-1263
1
R41
Resistor,
4.7
k
Ohm, ±5%,
1/4W
100-4743
1
R42
Resistor, 120 k Ohm, ±5%,
1/4W
100-1263
1
R43,R44
Resistor, 27 Ohm, ±5%, 1/4W
100-2723
2
R45
Resistor, 7.5 k Ohm, ±5%,
1/4W
100-7543
1
R46
Resisotr, 4.7 k Ohm, ±5%,
1/4W 100-4743
1
R47 Resistor, 120 k Ohm,
±5%, 1/4W
100-1263
1
R48
Resistor, 330 k Ohm,
±5%, 1/4W
100-3363
1
R49
Resistor, 120 k Ohm, ±5%,
1/4W 100-1263
1
R50,R51 Resistor,
1.8 k Ohm, ±5%, 1/4W
110-1843
2
R52,R53
Resistor, 10 k Ohm, ±5%, 1/4W
100-1053
2
R54 Resistor, 39 k Ohm, ±5%, 1/4W
100-3953
1
R57 Resistor, 150 k Ohm, ±5%, 1/4W
100-1563
1
R60 Resistor, 100 k Ohm, ±5%, 1/4W
100-1063
1
R61 ,R62 Resistor,
47 k Ohm, ±5%, 1/4W
100-4753 2
R72 ,R75
Resistor, 1 Meg Ohm, ±5%, 1/4W
100-1073
2
R76 Resistor, 10 Meg Ohm, ±5%, 1/4W
100-1083
1
R77 Resistor, 1 k Ohm, ±5%, 1/4W
100-1043
1
R83
Resistor,
270 k Ohm, ±5%, 1/4W
100-2763
1
R84 ,R85 Resistor, 56 k Ohm, ±5%, 1/4W
100-5653 2
R86 Resistor, 2.2 k Ohm, ±5%,
1/4W 100-2243
1
R94,R95 Resistor, 560 k Ohm, ±5%, 1/4W
100-5663 2
