Broadcast Electronics 3000 Series - Page 69

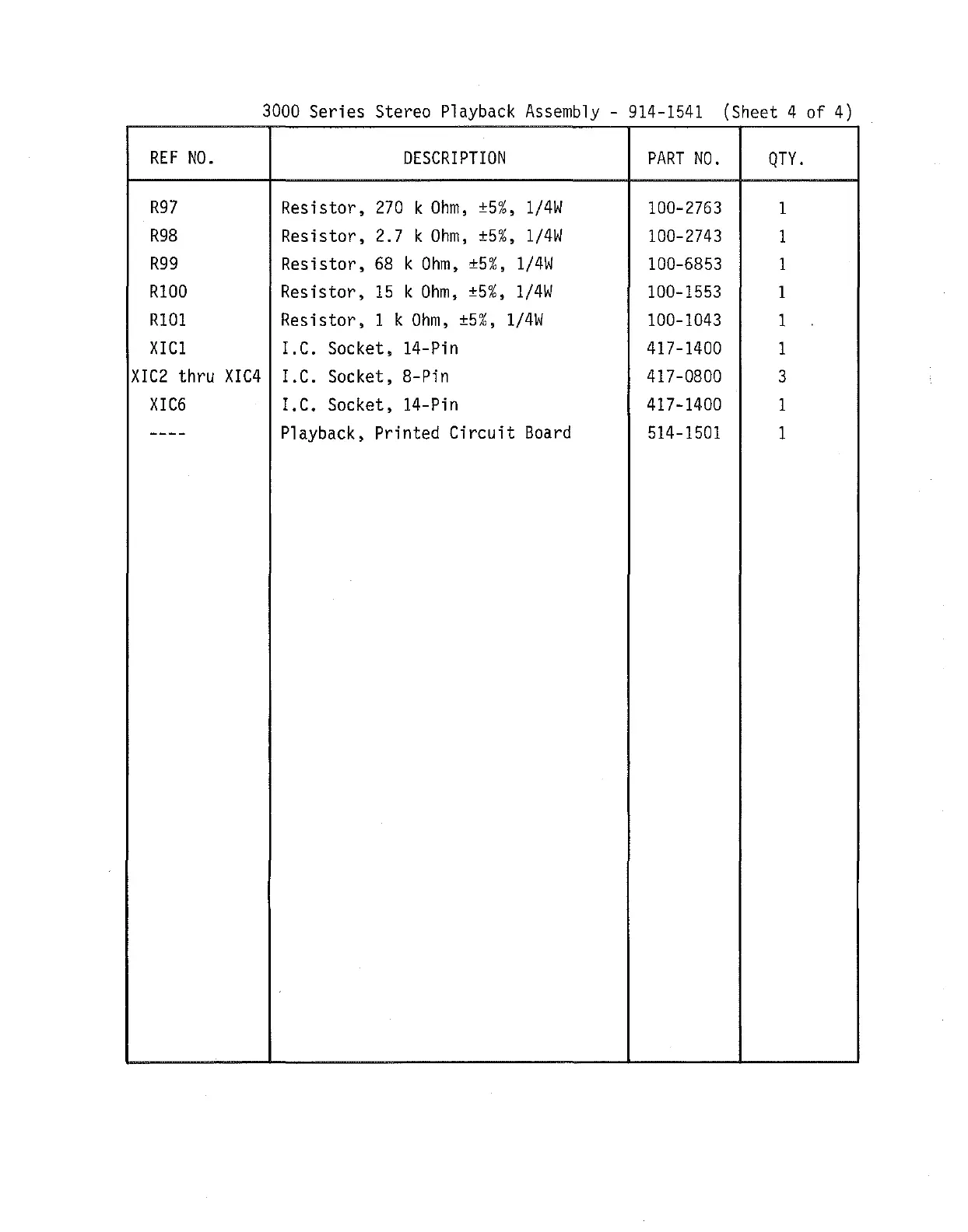

3000 Series Stereo Playback Assembly - 914-1541 (Sheet 4 of 4)
REF NO. DESCRIPTION
PART NO.
QTY.
R97
Resistor,
270 k Ohm, ±5%,
1/4W 100-2763
1
R98 Resistor, 2.7 kOhm, ±5%, 1/4W
100-2743
1
R99 Resistor, 68 k Ohm, ±5%, 1/4W
100-6853 1
R100 Resistor, 15 k Ohm, ±5%, 1/4W 100-1553
1
R101 Resistor, 1 k Ohm, ±5%, 1/4W
100-1043
1
XIC1 I. C.
Socket,
14-Pin
417-1400
1
XIC2 thru XIC4 !.C. Socket, 8-Pin 417-0800
3
XIC6 !.C. Socket, 14-Pin 417-1400 1
----
Playback, Printed Circuit Board 514-1501
1
