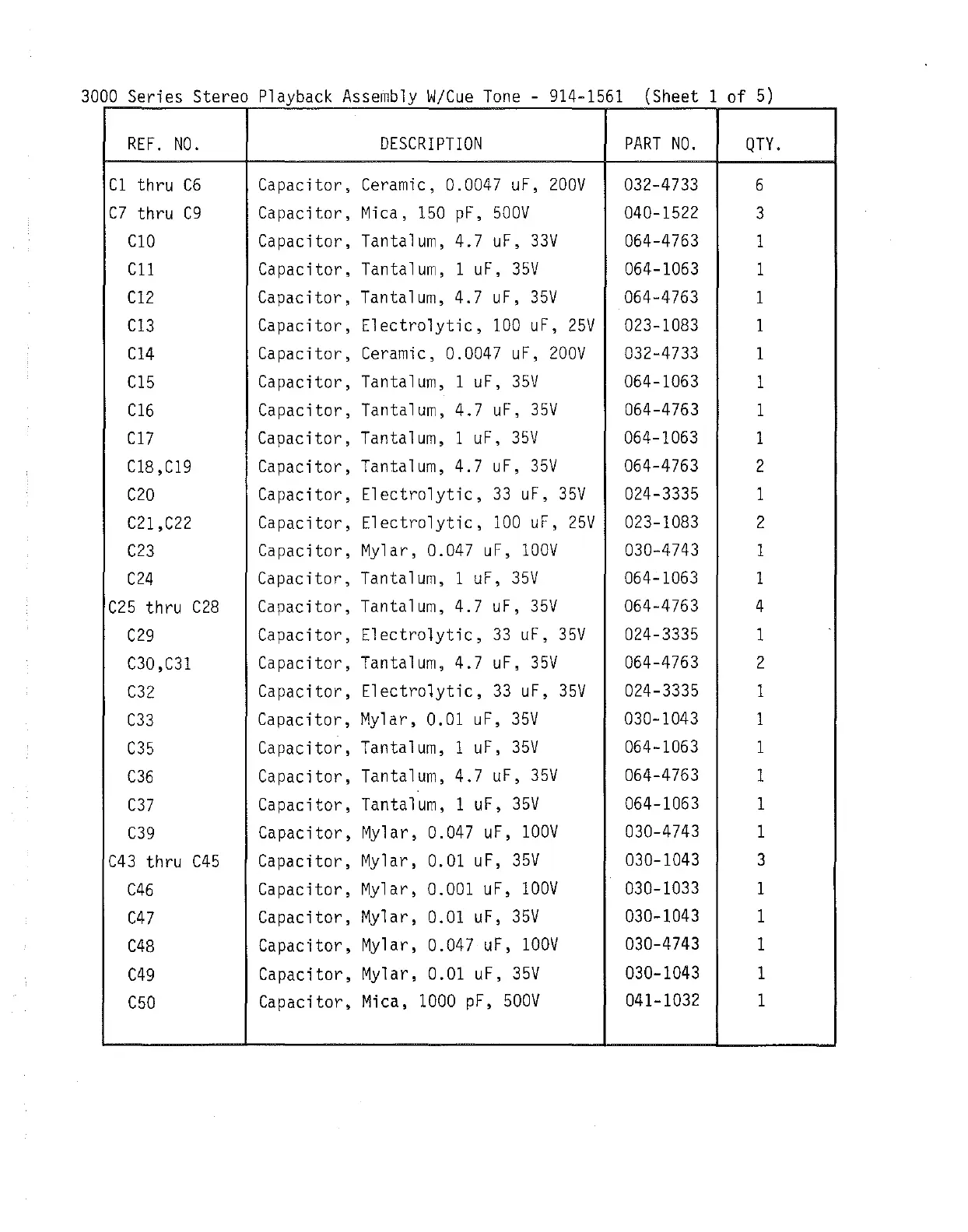

3000 Series Stereo Playback Assembly W/Cue Tone - 914-1561 (Sheet 1 of 5)
REF. NO.
DESCRIPTION PART NO.
QTY.
C1 thru C6
Capacitor, Ceramic, 0.0047 uF, 200V
032-4733 6
C7 thru C9 Capacitor,
Mica, 150 pF, 500V
040-1522
3
C10 Capacitor,
Tantalum, 4.7 uF, 33V
064-4 763
1
Cll Capacitor,
Tantalum, 1 uF, 35V
064-1063
1
Cl2
Capacitor, Tantalum, 4.7 uF, 35V 064-4763
1
C13
Capacitor, Electrolytic, 100 uF,
25V
023-1083
1
C14
Capacitor, Ceramic, 0.0047 uF, 200V 032-4733
1
C15
Capacitor, Tantalum,
1 u
F, 35V
064-1063
1
C16
Capac it or, Tantalum, 4.7uF,35V 064-4763
1
C17
Capacitor, Tanta 1 um, 1 uF, 35V 064-1063
1
C18,C19
Capacitor, Tantalum, 4.7
u
F, 35V 064-4763
2
C20 Capacitor,
Electrolytic, 33 uF, 35V 024-3335
1
C21,C22
Capac it or, Electrolytic, 100 uF, 25V 023-1083 2
C23 Capacitor,
Mylar, 0.047 uF, 100V 030-4743
1
C24
Capac it or, Tantalum, 1 uF, 35V 064-1063
1
C25 thru C28
Capacitor,
Tantalum, 4.7 uF, 35V 064-4763
4
C29
Capacitor, Electrolytic,
33 uF, 35V
024-3335
1
C30,C31
Capacitor, Tantalum, 4.7 uF, 35V 064-4763 2
C32
Capacitor,
Electrolytic, 33 uF, 35V 024-3335
1
C33
Capacitor,
Mylar, 0.01 uF, 35V 030-1043
1
C35
Capacitor,
Tantalum, 1 uF, 35V
064-1063
1
C36 Capac it or,
Tantalum, 4.7 uF, 35V
064-4763
1
C37
Capacitor,
Tantalum, 1 uF, 35V 064-1063 1
C39
Capacitor,
Mylar, 0.047 uF, 100V 030-4743 1
C43 thru C45
Capacitor,
Mylar, 0.01 uF, 35V
030-1043 3
C46
Capac it or,
Mylar, 0.001 uF, 100V 030-1033 1
C47
Capacitor,
Mylar, 0.01 uF, 35V
030-1043
1
C48
Capacitor,
Mylar, 0.047 uF, 100V
030-4743
1
C49
Capacitor,
Mylar, 0.01 uF, 35V 030-1043 1
C50
Capacitor,
Mica, 1000 pF, 500V 041-1032 1
