Broadcast Electronics 3000 Series - Page 72

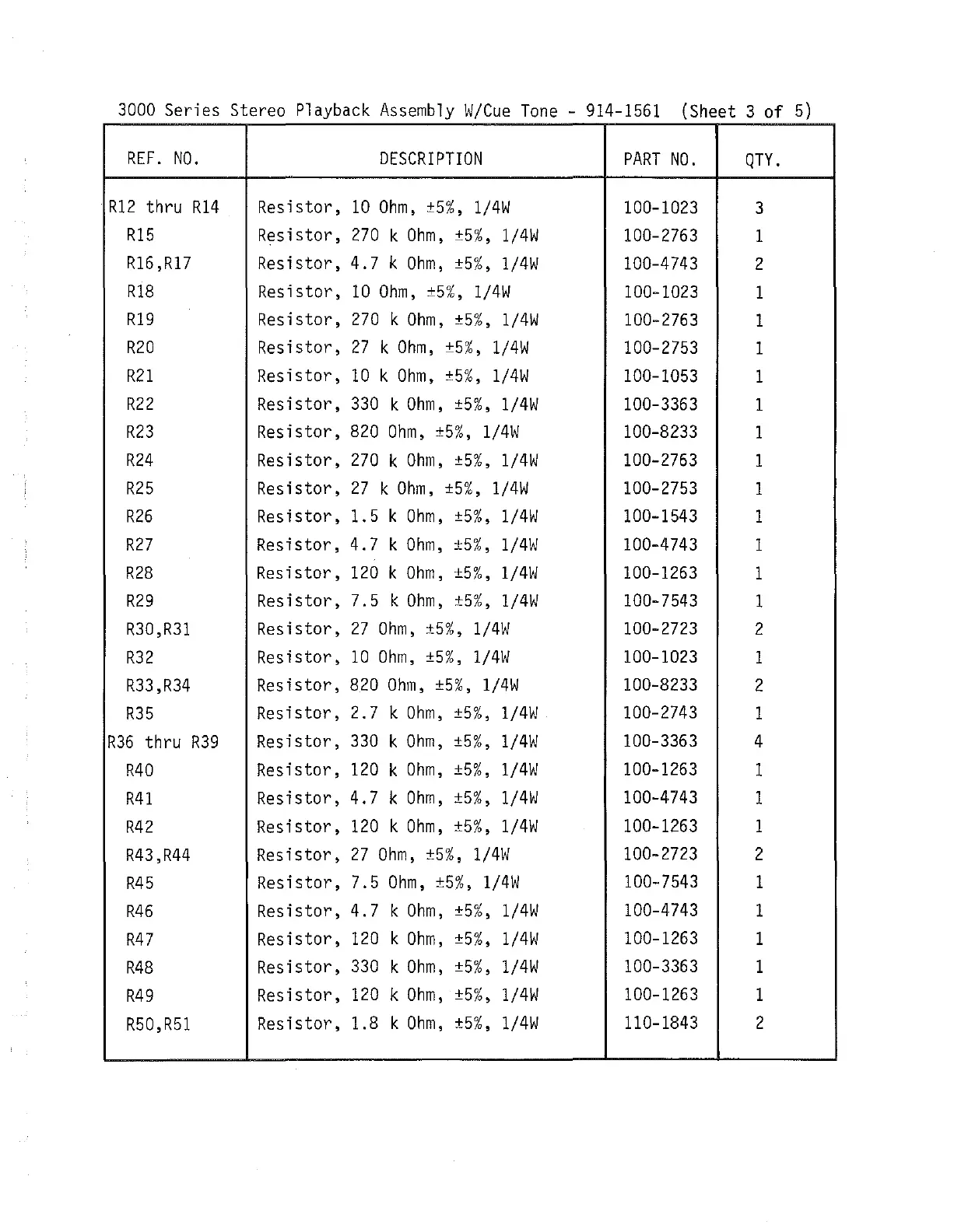

3000 Series Stereo Playback Assembly W/Cue Tone - 914-1561 (Sheet 3 of 5)
REF. NO. DESCRIPTION
PART NO.
QTY.
R12 thru R14 Resistor,
10 Ohm, ±5%, 1/4W
100-1023
3
R15
Resistor,
270 k Ohm, ±5%, 1/4W
100-2763
1
R16,R17
Resistor, 4.7 k Ohm, ±5%, 1/4W
100-4743
2
R18 Resistor,
10 Ohm, ±5%, 1/4W
100-1023
1
R19 Resistor, 270 k Ohm, ±5%, 1/4W
100-2763
1
R20 Resistor, 27 k Ohm, ±5%, 1/4W
100-2753
1
R21
Resistor, 10 k Ohm, ±5%, 1/4W
100-1053
1
R22 Resistor, 330 k Ohm, ±5%, 1/4W
100-3363
1
R23 Resistor,
820 Ohm, ±5%, 1/4W
100-8233
1
R24
Resistor, 270 k Ohm, ±5%, 1/4W
100-2763
1
R25 Resistor, 27 k Ohm, ±5%, 1/4W 100-2753
1
R26
Resistor, 1.5 k Ohm, ±5%,
1/4W 100-1543
1
R27
Resistor, 4.7 k Ohm, ±5%,
1/4W
100-4743
1
R28
Resistor, 120 k Ohm,
±5%, 1/4W 100-1263
1
R29
Resistor, 7. 5 k Ohm, ±5%,
1/4W 100-7543
1
R30,R31
Resistor, 27 Ohm, ±5%, 1/4W 100-2723
2
R32
Resistor,
10 Ohm, ±5%, 1/4W
100-1023
1
R33,R34
Resistor, 820 Ohm, ±5%, 1/4W 100-8233
2
R35
Resistor,
2.7 k Ohm, ±5%,
1/4W
100-2743
1
R36 thru R39
Resistor,
330 k Ohm, ±5%,
1/4W
100-3363
4
R40
Resistor, 120 k Ohm,
±5%,
1/4W
100-1263
1
R41
Resistor, 4.7
k
Ohm, ±5%,
1/4W
100-4743
1
R42 Resistor,
120 k Ohm, ±5%, 1/4W 100-1263 1
R43,R44 Resistor,
27 Ohm, ±5%, 1/4W 100-2723 2
R45
Resistor, 7.5 Ohm, ±5%, 1/4W
100-7543
1
R46
Resistor, 4.7
k
Ohm, ±5%,
1/4W
100-4743
1
R47
Resistor,
120 k Ohm, ±5%,
1/4W
100-1263
1
R48
Resistor,
330 k Ohm, ±5%,
1/4W
100-3363
1
R49
Resistor,
120 k Ohm, ±5%,
1/4W
100-1263
1
R50,R51
Resistor,
1.8 k Ohm, ±5%,
1/4W
110-1843 2
