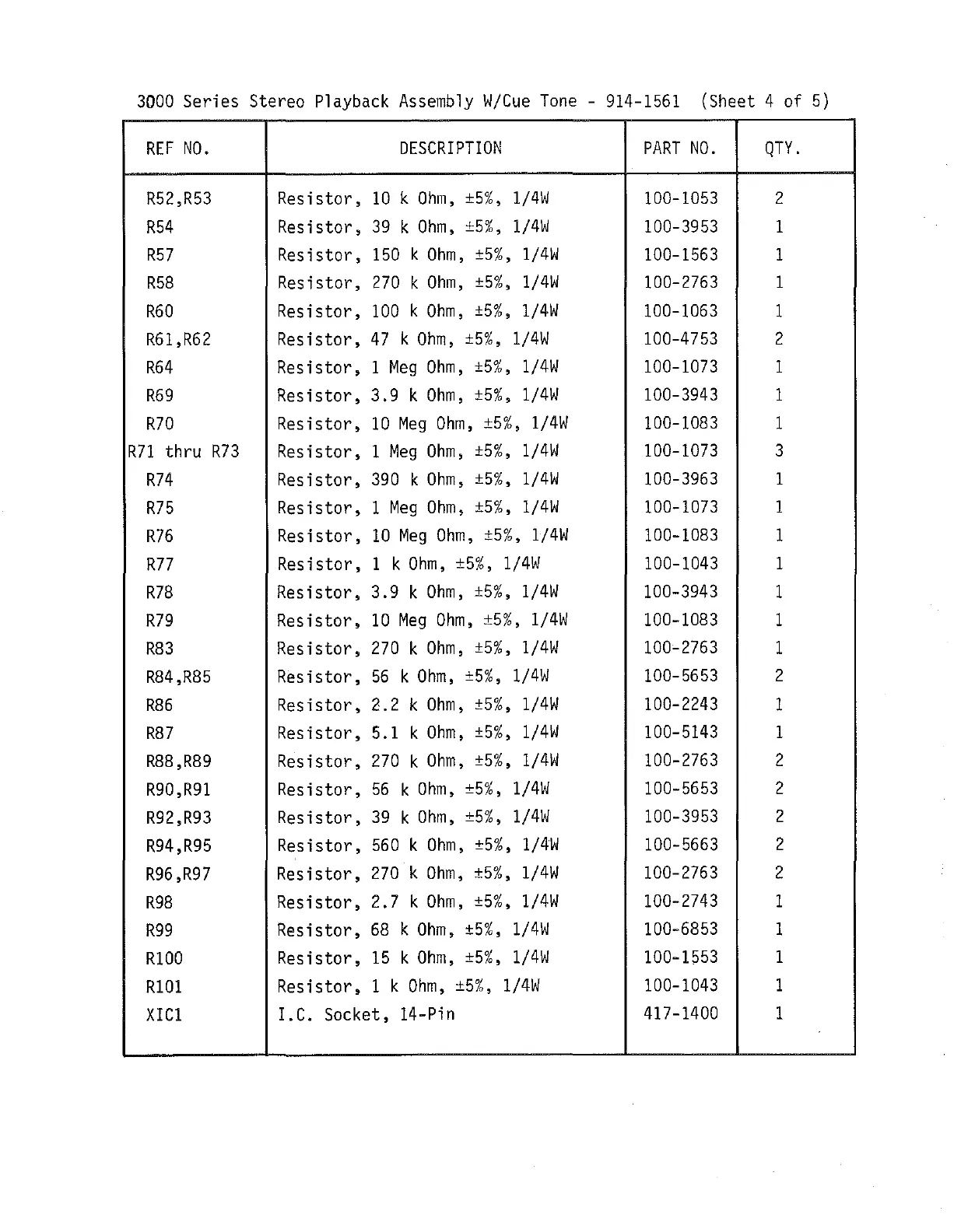

3000 Series Stereo Playback Assembly W/Cue Tone - 914-1561 (Sheet 4 of 5)
REF NO.
DESCRIPTION
PART NO. QTY.
R52,R53 Resistor, 10 k Ohm, ±5%, 1/4W 100-1053 2
R54
Resistor,
39 k Ohm, ±5%, 1/4W
100-3953 1
R57 Resistor,
150 k Ohm, ±5%, 1/4W
100-1563 1
R58 Resistor,
270 k Ohm, ±5%, 1/4W 100-2763 1
R60 Resistor,
100 k Ohm, ±5%, 1/4W 100-1063
1
R61,R62
Resistor,
47 k Ohm, ±5%, 1/4W 100-4753 2
R64 Resistor,
1 Meg Ohm, ±5%, 1/4W 100-1073 1
R69 Resistor,
3.9 k Ohm, ±5%, 1/4W 100-3943 1
R70
Resistor,
10 Meg Ohm, ±5%, 1/4W 100-1083
1
R71 thru R73 Resistor,
1 Meg Ohm,
±5%,
1/4W 100-1073 3
R74
Resistor,
390 k Ohm, ±5%, 1/4W 100-3963 1
R75
Resistor,
1 Meg Ohm, ±5%, 1/4W 100-1073 1
R76 Resistor,
10 Meg Ohm, ±5%, l/4W 100-1083
1
R77
Resistor,
1 k Ohm, ±5%, 1/4W 100-1043 1
R78
Resistor,
3.9 k Ohm, ±5%, 1/4W 100-3943
1
R79 Resistor,
10 Meg Ohm, ±5%, 1/4W 100-1083
1
R83 Resistor,
270 k Ohm, ±5%, 1/4W 100-2763
1
R84 ,R85 Resistor,
56 k Ohm, ±5%, 1/4W
100-5653 2
R86 Resistor,
2.2 k Ohm,
±5%, 1/4W 100-2243
1
R87
Resistor,
5.1 k Ohm, ±5%, 1/4W 100-5143 1
R88 ,R89 Resistor,
270 k Ohm, ±5%, 1/4W
100-2763 2
R90,R91 Resistor,
56 k Ohm, ±5%, 1/4W
100-5653 2
R92,R93 Resistor,
39 k Ohm, ±5%, 1/4W 100-3953
2
R94,R95
Resistor,
560 k Ohm, ±5%, 1/4W 100-5663
2
R96,R97 Resistor,
270 k Ohm, ±5%, 1/4W 100-2763 2
R98 Resistor,
2.7 k Ohm, ±5%, 1/4W 100-2743 1
R99
Resistor,
68 k Ohm, ±5%, 1/4W
100-6853
1
R100
Resistor,
15 k Ohm, ±5%, 1/4W
100-1553 1
RlOl
Resistor,
1 k Ohm, ±5%,
1/4W 100-1043 1
XICI
I.C. Socket, 14-Pin
417-1400
1
