Broadcast Electronics 3000 Series - Page 77

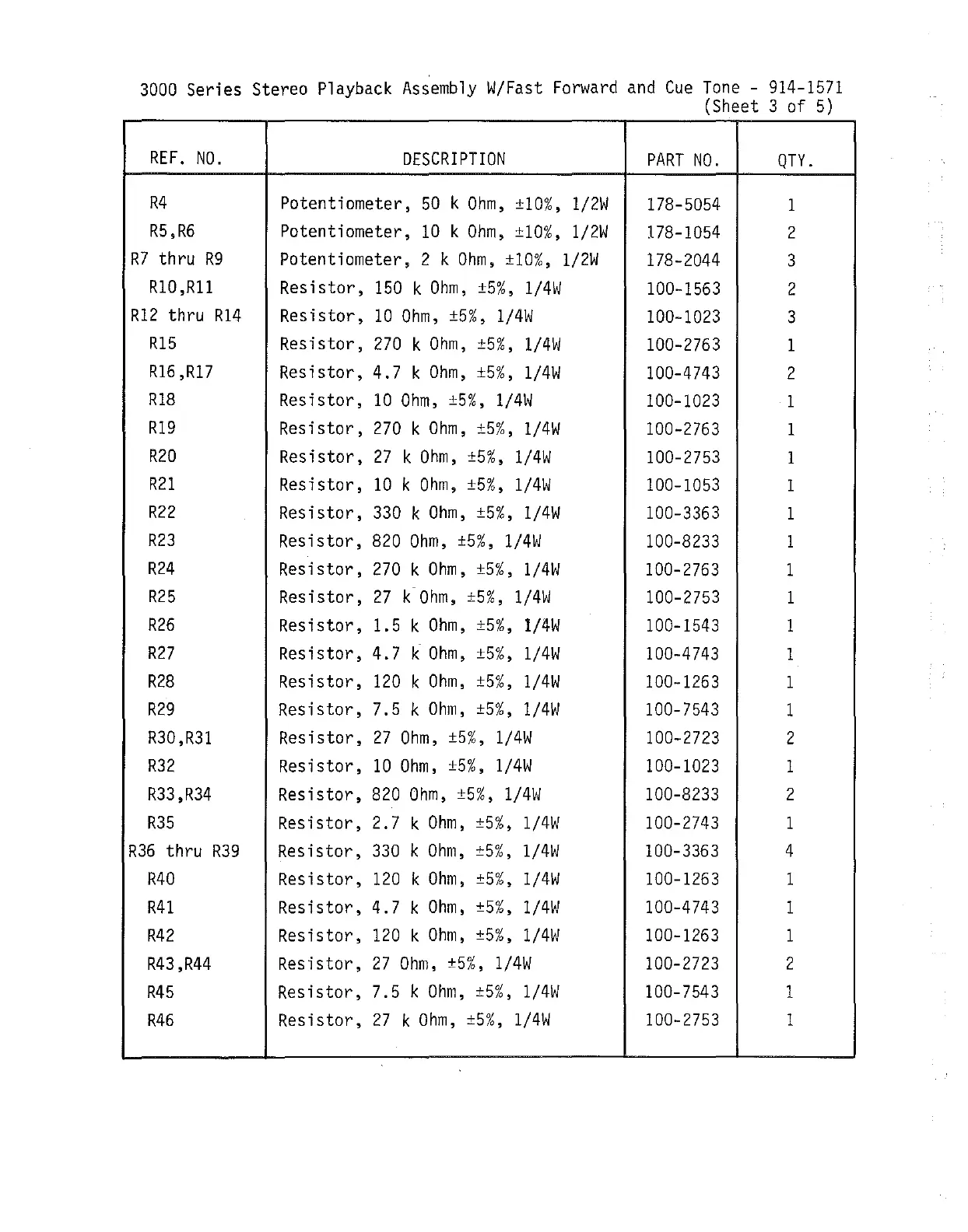

3000 Series Stereo Playback Assembly W/Fast Forward and Cue Tone - 914-1571
(Sheet 3 of
5)
REF.
NO.
DESCRIPTION
PART NO.
QTY.
R4
Potentiometer, 50 k Ohm, ±10%,
1/2W
178-5054
1
R5 ,R6
Potentiometer,
10 k Ohm, ±10%,
1/2W
178-1054 2
R7 thru R9 Potentiometer,
2 k Ohm, ±10%, 1/2W
178-2044
3
R10 ,Rll
Resistor, 150 k Ohm, ±5%, 1/4W
100-1563
2
R12 thru R14
Resistor, 10 Ohm, ±5%, 1/4W
100-1023
3
R15
Resistor,
270 k Ohm, ±5%, 1/4W
100-2763
1
R16,R17
Resistor, 4.7 k Ohm, ±5%, 1/4W
100-4743 2
R18 Resistor,
10 Ohm, ±5%, 1/4W
100-1023
1
R19
Resistor, 270 k Ohm, ±5%, 1/4W
100-2763
1
R20 Resistor,
27 k Ohm, ±5%, 1/4W
100-2753
1
R21
Resistor, 10 k Ohm, ±5%, 1/4W
100-1053
1
R22 Resistor, 330 k Ohm, ±5%, 1/4W
100-3363
1
R23
Resistor, 820 Ohm, ±5%, 1/4W
100-8233 1
R24
Resistor, 270 k Ohm, ±5%, 1/4W
100-2763
1
R25
Resistor, 27 k Ohm, ±5%, 1/4W
100-2753 1
R26 Resistor,
1.5
k
Ohm,
±5%,
l/4W 100-1543
1
R27 Resistor,
4.7
k Ohm, ±5%,
1/4W
100-4743 1
R28 Resistor, 120
k Ohm, ±5%,
1/4W 100-1263
1
R29
Resistor, 7.5 k Ohm,
±5%,
1/4W 100-7543
1
R30,R31 Resistor,
27 Ohm, ±5%, 1/4W
100-2723
2
R32 Resistor, 10 Ohm, ±5%, 1/4W
100-1023 1
R33,R34 Resistor, 820 Ohm, ±5%, 1/4W 100-8233 2
R35 Resistor, 2.7 k Ohm,
±5%,
1/4W 100-2743
1
R36 thru
R39
Resistor, 330
k Ohm, ±5%,
1/4W 100-3363
4
R40 Resistor, 120 k Ohm,
±5%,
1/4W 100-1263
1
R41
Resistor,
4.7
k
Ohm,
±5%,
1/4W 100-4743 1
R42 Resistor,
120 k Ohm,
±5%,
1/4W 100-1263 1
R43 ,R44 Resistor,
27 Ohm, ±5%, 1/4W
100-2723 2
R45
Resistor, 7.5 k Ohm, ±5%, 1/4W
100-7543 1
R46 Resistor, 27
k Ohm, ±5%, 1/4W 100-2753
1
.
