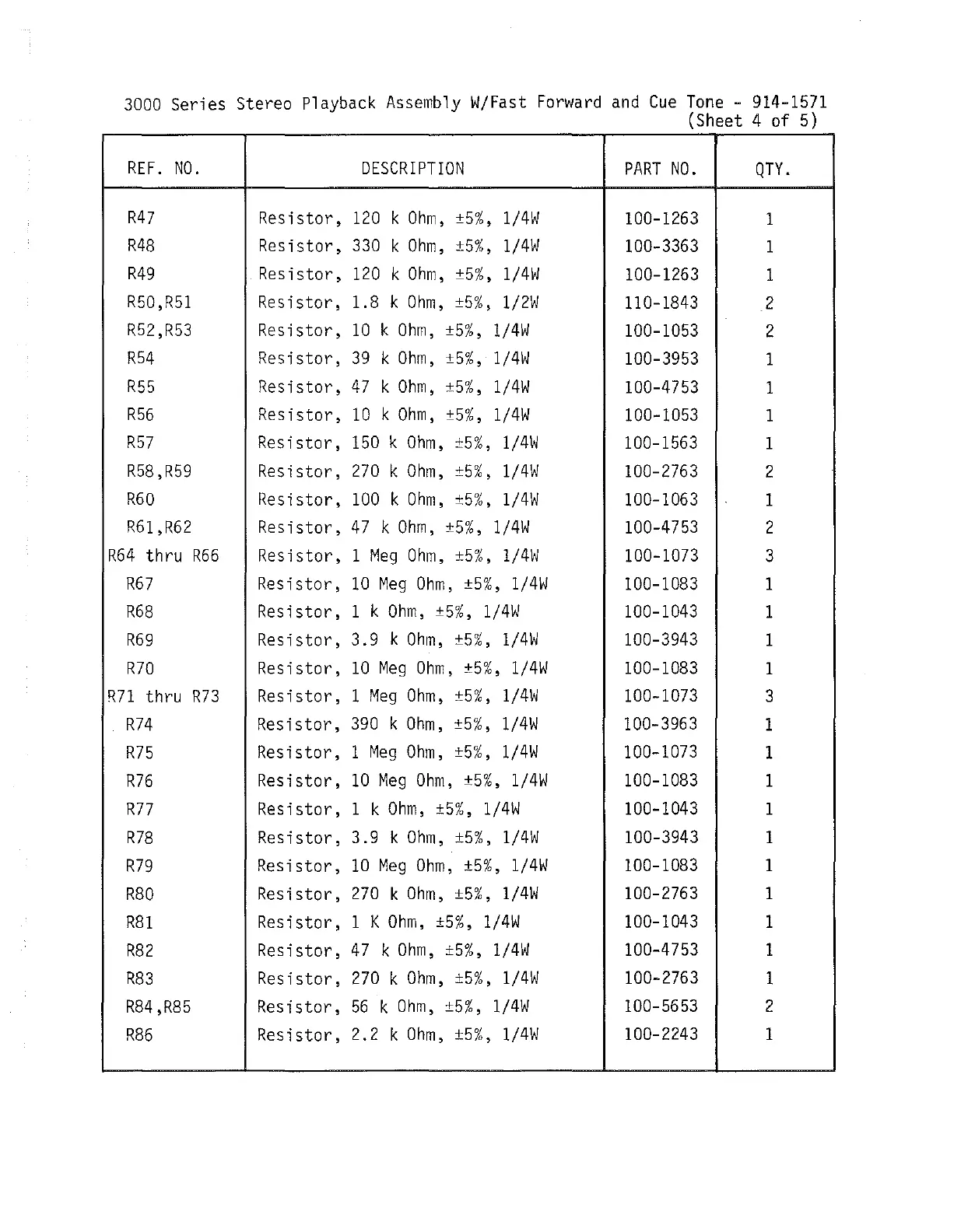

Broadcast Electronics 3000 Series - Page 78

3000 Series Stereo Playback Assembly W/Fast Forward and Cue Tone - 914-1571
(Sheet 4 of 5)
REF.
NO. DESCRIPTION
PART NO.
QTY.
R47
Resistor, 120 k Ohm, ±5%, 1/4W
100-1263
1
R48 Resistor, 330 k Ohm, ±5%,
1/4W 100-3363
1
R49 Resistor, 120 k Ohm, ±5%,
1/4W
100-1263
1
R50,R51
Resistor, 1.8 k Ohm, ±5%, 1/2W
110-1843
2
R52,R53
Resistor, 10 k Ohm, ±5%,
1/4W 100-1053
2
R54 Resistor, 39 k Ohm, ±5%, 1/4W
100-3953
1
R55 Resistor, 47 k Ohm, ±5%, 1/4W
100-4753
1
R56 Resistor,
10
k Ohm, ±5%,
1/4W 100-1053
1
R57 Resistor, 150 k Ohm, ±5%,
1/4W 100-1563
1
R58, R59 Resistor, 270 k Ohm, ±5%, 1/4W
100-2763
2
R60
Resistor,
100 k Ohm, ±5%, 1/4W
100-1063
1
R61,R62 Resistor, 47 k Ohm, ±5%, 1/4W
100-4753 2
R64 thru R66 Resistor, 1 Meg Ohm, ±5%, 1/4W 100-1073
3
R67 Resistor, 10 Meg Ohm, ±5%, 1/4W
100-1083 1
R68 Resistor,
1 k Ohm, ±5%, 1/4W
100-1043
1
R69 Resistor,
3.9 k Ohm, ±5%, 1/4W
100-3943
1
R70 Resistor,
10 Meg Ohm, ±5%, 1/4W
100-1083
1
R71 thru R73
Resistor, 1 Meg Ohm, ±5%, 1/4W 100-1073
3
R74 Resistor,
390 k Ohm, ±5%, 1/4W 100-3963
1
R75
Resistor,
1 Meg Ohm, ±5%, 1/4W 100-1073
1
R76
Resistor, 10 Meg Ohm, ±5%, 1/4W 100-1083
1
R77
Resistor, 1 k Ohm, ±5%, 1/4W 100-1043 1
R78 Resistor, 3.9 k Ohm, ±5%, 1/4W 100-3943 1
R79
Resistor, 10 Meg Ohm, ±5%, 1/4W 100-1083 1
R80 Resistor,
270 k Ohm, ±5%, 1/4W 100-2763 1
R81 Resistor,
1 K Ohm, ±5%, 1/4W 100-1043
1
R82
Resistor,
47 k Ohm, ±5%, 1/4W 100-4753
1
R83
Resistor, 270 k Ohm, ±5%, 1/4W
100-2763
1
R84 ,R85 Resistor,
56 k Ohm, ±5%, 1/4W 100-5653 2
R86 Resistor,
2.2 k Ohm, ±5%, 1/4W 100-2243 1
