Broadcast Electronics 3000 Series - Page 79

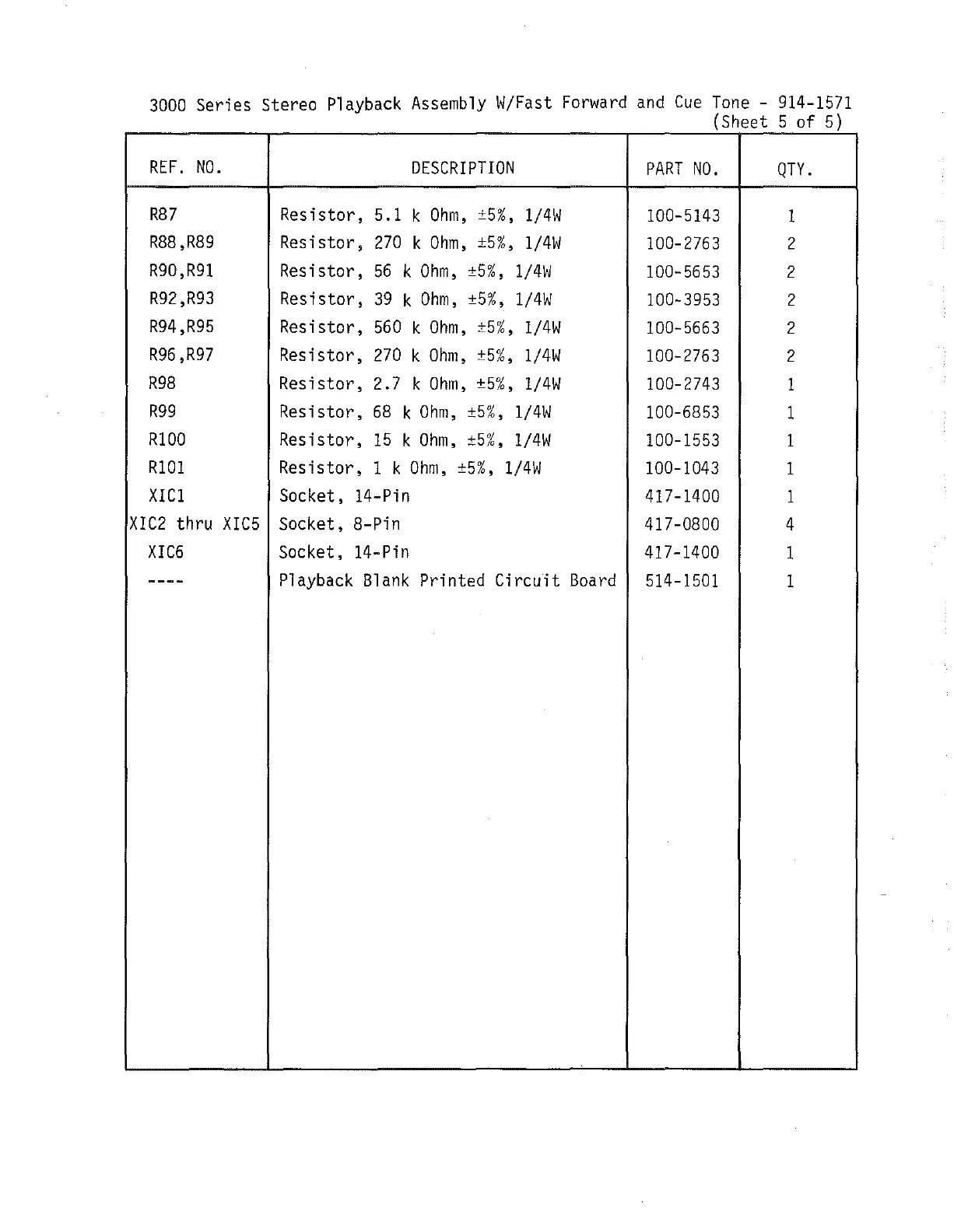

3000 Series Stereo Playback Assembly W/Fast Forward and Cue Tone - 914-1571
(Sheet 5 of 5)
REF. NO.
DESCRIPTION
PART NO.
QTY.
R87 Resistor,
5.1 k Ohm, ±5%,
1/4W 100-5143
1
R88 ,R89
Resistor, 270 k Ohm, ±5%,
1/4W
100-2763 2
R90,R91
Resistor, 56 k Ohm, ±5%, 1/4W
100-5653 2
R92,R93
Resistor, 39 k Ohm, ±5%, 1/4W
100-3953 2
R94,R95
Resistor, 560
k Ohm,
±5%,
1/4W
100-5663 2
R96,R97
Resistor,
270 k Ohm, ±5%, 1/4W
100-2763 2
R98
Resistor, 2.7 k Ohm, ±5%, 1/4W
100-2743
1
R99 Resistor, 68 k Ohm, ±5%, 1/4W
100-6853
1
R100 Resistor, 15 k Ohm, ±5%, 1/4W
100-1553
1
R101 Resistor, 1 k Ohm, ±5%, 1/4W
100-1043
1
XIC1 Socket,
14-Pin 417-1400
1
XIC2 thru XIC5 Socket, 8-Pin
417-0800
4
XIC6 Socket, 14-Pin
417-1400
1
----
Playback Blank Printed Circuit Board
514-1501
1
