Broadcast Electronics 3000 Series - Page 80

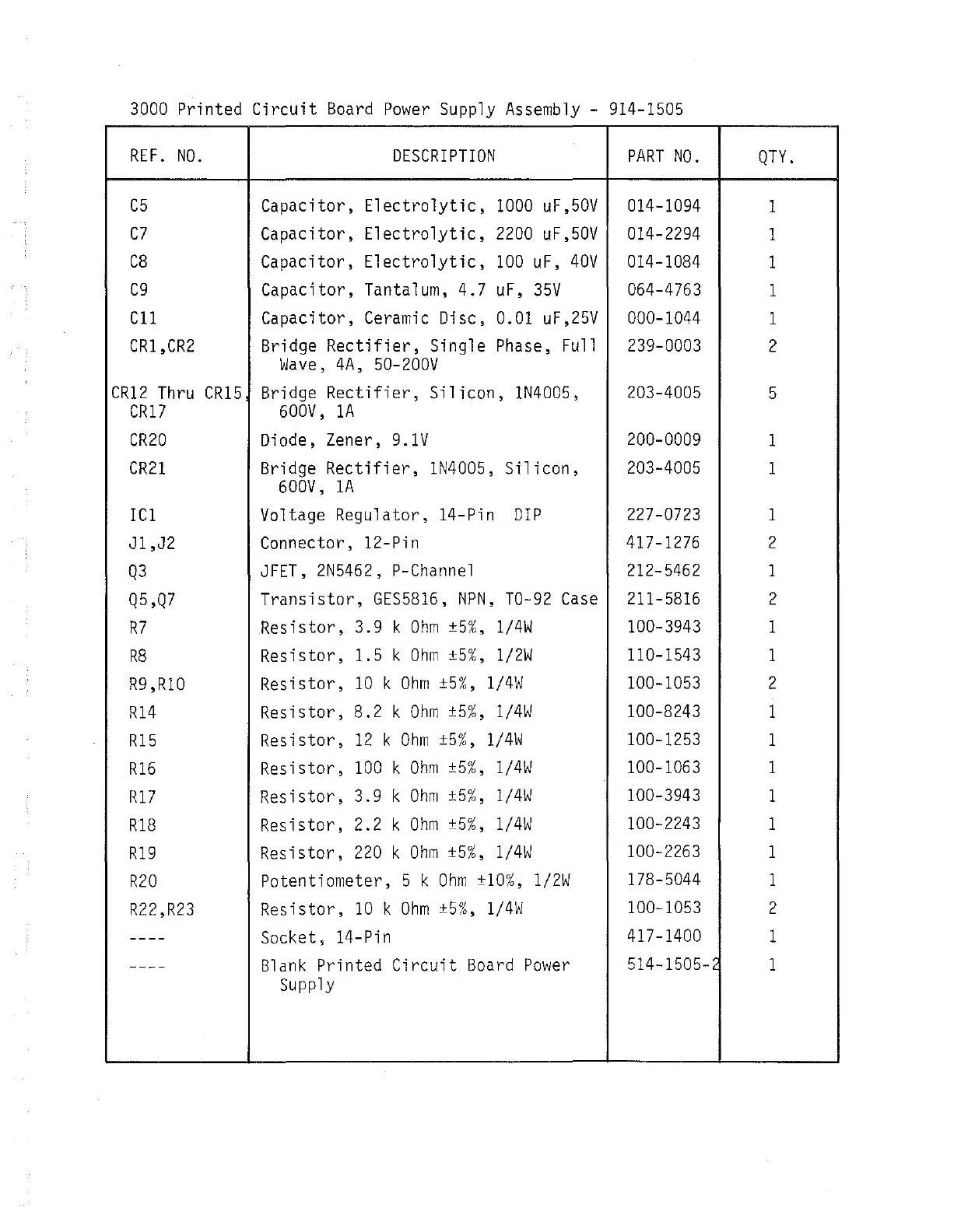

3000 Printed Circuit Board Power Supply Assembly - 914-1505
REF. NO. DESCRIPTION PART NO. QTY.
C5 Capacitor, Electrolytic, 1000 uF,50V 014-1094 1
C7 Capacitor, Electrolytic, 2200 uF,50V 014-2294 1
C8 Capacitor, Electrolytic, 100 uF, 40V 014-1084 1
C9 Capacitor, Tantalum, 4.7 uF, 35V 064-4763 1
C11 Capacitor, Ceramic Disc, 0.01 uF,25V 000-1044 1
CR1,CR2 Bridge Rectifier, Single Phase, Full 239-0003 2
Wave, 4A, 50-200V
CR12 Thru CR15 Bridge Rectifier, Silicon, 1N4005, 203-4005 5
CR17 600V, 1A
CR20
CR21
IC1
J1,J2
Q3
Q5,Q7
R7
R8
R9,R10
R14
R15
R16
R17
R18
R19
R20
R22,R23
Diode, Zener, 9.1V
Bridge Rectifier, 1N4005, Silicon,
600V, 1A
Voltage Regulator, 14-Pin DIP
Connector, 12-Pin
JFET, 2N5462, P-Channel
Transistor, GES5816, NPN, T0-92 Case
Resistor, 3.9 k Ohm ±5%, 1/4W
Resistor, 1.5 k Ohm ±5%, 1/2W
Resistor, 10 k Ohm ±5%, 1/4W
Resistor, 8.2 k Ohm ±5%, 1/4W
Resistor, 12 k Ohm ±5%, 1/4W
Resistor, 100 k Ohm ±5%, 1/4W
Resistor, 3.9 k Ohm ±5%, 1/4W
Resistor, 2.2 k Ohm ±5%, 1/4W
Resistor, 220 k Ohm ±5%, 1/4W
Potentiometer, 5 k Ohm ±10%, 1/2W
Resistor, 10 k Ohm ±5%, 1/4W
Socket, 14-Pin
Blank Printed Circuit Board Power
Supply
200-0009
203-4005
227-0723
417-1276
212-5462
211-5816
100-3943
110-1543
100-1053
100-8243
100-1253
100-1063
100-3943
100-2243
100-2263
178-5044
100-1053
417-1400
514-1505-<
1
1
1
2
1
2
1
1
2
1
1
1
1
1
1
1
2
1
1
