Broadcast Electronics 3000 Series - Page 81

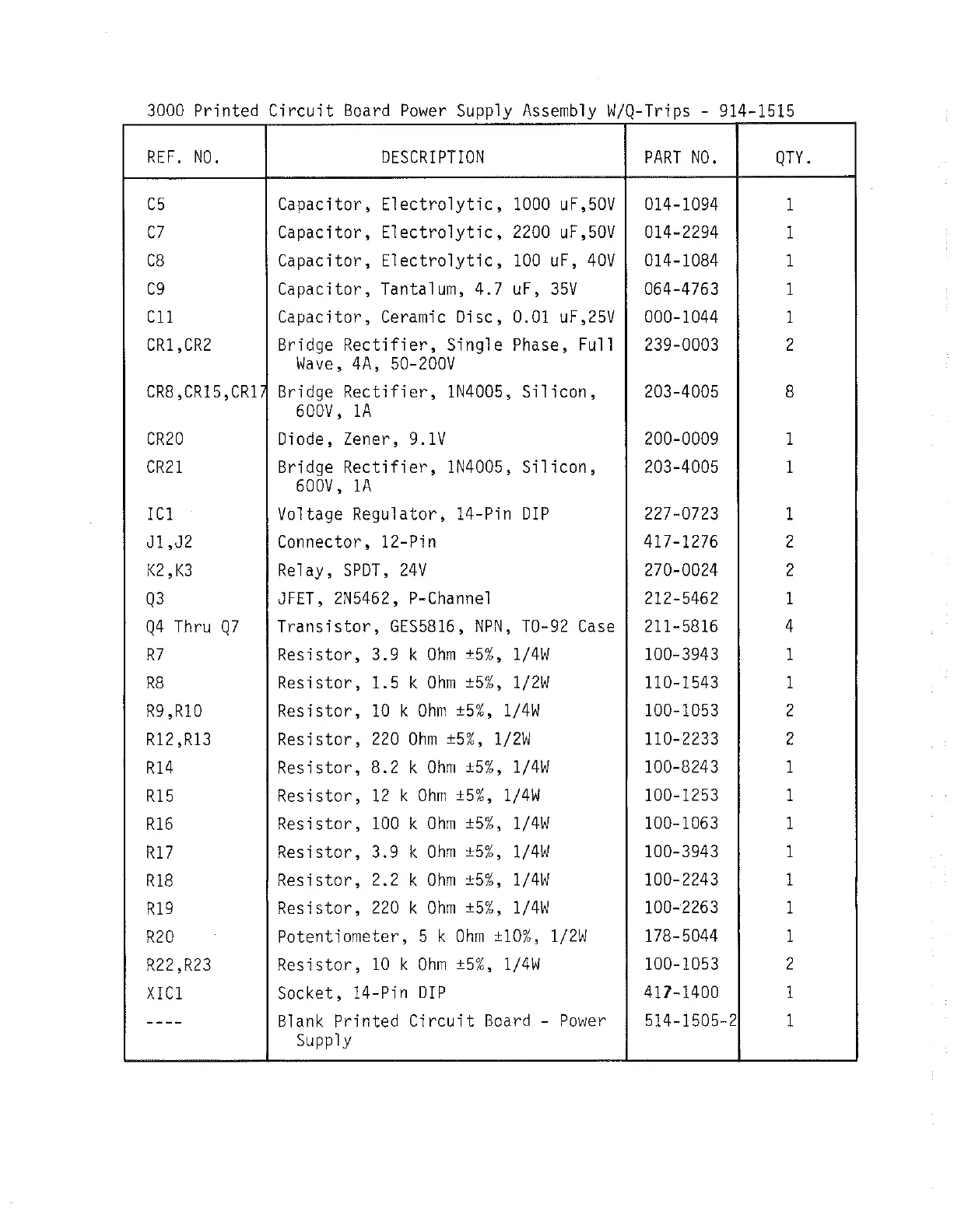

3000 Printed Circuit Board Power Supply Assembly W/Q-Trips- 914-1515
REF. NO.
C5
C7
C8
C9
C11
CR1,CR2
CR8,CR15,CR1
CR20
CR21
IC1
J1,J2
K2, K3
Q3
Q4
Thru Q7
R7
R8
R9,R10
R12,R13
R14
R15
R16
R17
R18
R19
R20
R22,R23
XIC1
DESCRIPTION
Capacitor, Electrolytic, 1000 uF,50V
Capacitor, Electrolytic, 2200 uF,50V
Capacitor, Electrolytic, 100 uF, 40V
Capacitor, Tantalum, 4.7 uF, 35V
Capacitor, Ceramic Disc, 0.01 uF,25V
Bridge Rectifier, Single Phase, Full
Wave, 4A, 50-200V
Bridge Rectifier, 1N4005, Silicon,
600V, 1A
Diode, Zener, 9.1V
Bridge Rectifier, 1N4005, Silicon,
600V, 1A
Voltage Regulator, 14-Pin DIP
Connector, 12-Pin
Relay, SPOT, 24V
JFET, 2N5462, P-Channel
Transistor, GES5816, NPN, T0-92 Case
Resistor, 3.9 k Ohm ±5%, 1/4W
Resistor, 1.5 k Ohm ±5%, 1/2W
Resistor, 10 k Ohm ±5%, 1/4W
Resistor, 220 Ohm ±5%, 1/2W
Resistor, 8.2 k Ohm ±5%, 1/4W
Resistor, 12 k Ohm ±5%, 1/4W
Resistor, 100 k Ohm ±5%, 1/4W
Resistor, 3.9 k Ohm ±5%, 1/4W
Resistor, 2.2 k Ohm ±5%, 1/4W
Resistor, 220 k Ohm ±5%, 1/4W
Potentiometer, 5 k Ohm ±10%, 1/2W
Resistor, 10 k Ohm ±5%, 1/4W
Socket, 14-Pin DIP
Blank Printed Circuit Board - Power
Supply
PART NO.
014-1094
014-2294
014-1084
064-4763
000-1044
239-0003
203-4005
200-0009
203-4005
227-0723
417-1276
270-0024
212-5462
211-5816
100-3943
110-1543
100-1053
110-2233
100-8243
100-1253
100-1063
100-3943
100-2243
100-2263
178-5044
100-1053
417-1400
514-1505-2
QTY.
1
1
1
1
1
2
8
1
1
1
2
2
1
4
1
1
2
2
1
1
1
1
1
1
1
2
1
1
