Broadcast Electronics 3000 Series - Page 82

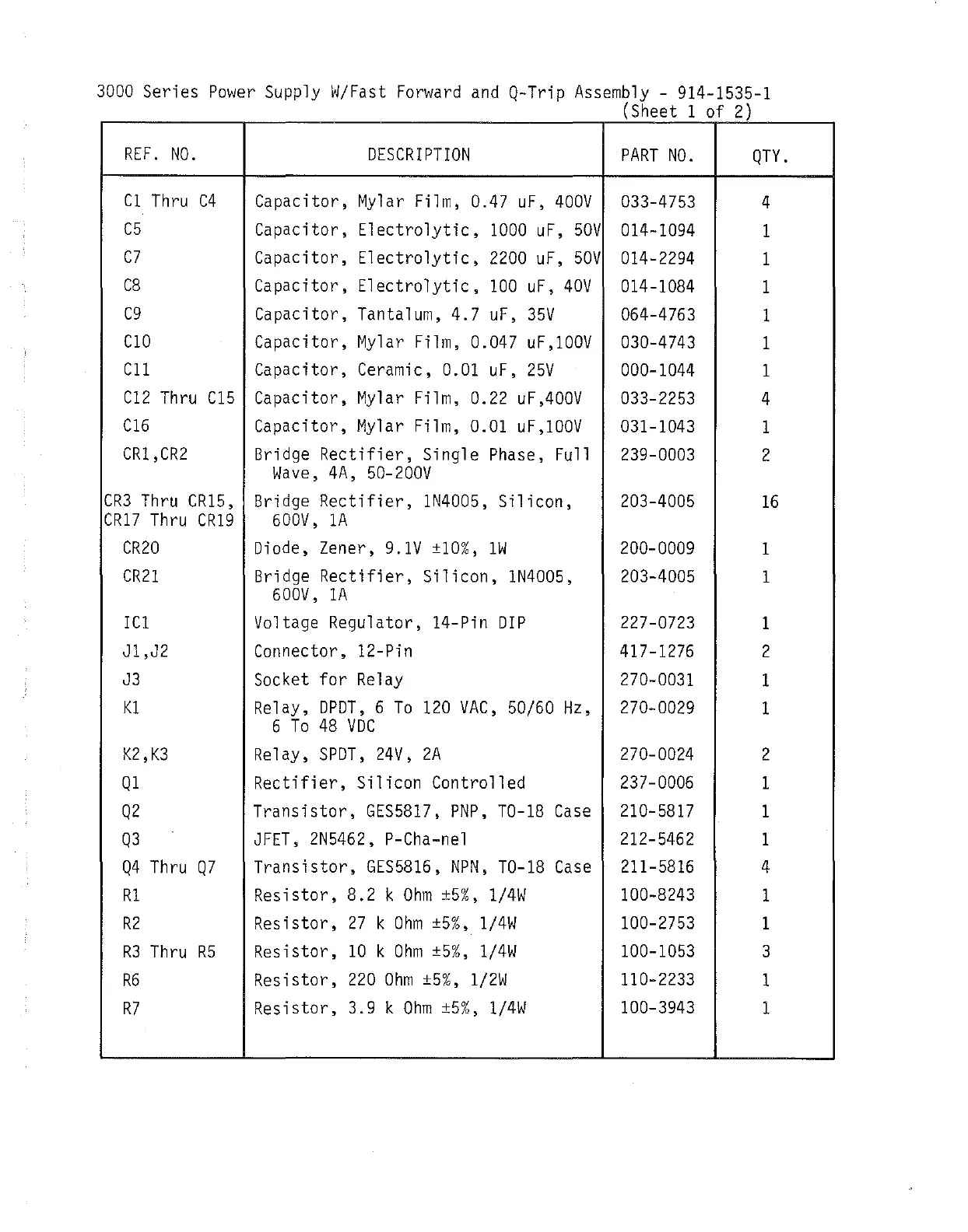

3000 Series Power Supply W/Fast Forward and Q-Trip Assembly- 914-1535-1
(Sheet 1 of 2)
REF. NO.
C1 Thru C4
C5
C7
C8
C9
C10
C11
C12 Thru C15
C16
CR1,CR2
CR3 Thru CR15,
CR17 Thru CR19
CR20
CR21
IC1
J 1 ,J2
J3
K1
K2, K3
Q1
Q2
Q3
Q4
Thru Q7
R1
R2
R3
Thru R5
R6
R7
DESCRIPTION
PART NO.
Capacitor, Mylar Film, 0.47 uF, 400V 033-4753
Capacitor,
Electrolytic, 1000 uF, 50V 014-1094
Capacitor,
Electrolytic, 2200 uF, 50V
Capacitor, Electrolytic, 100 uF, 40V
Capacitor, Tantalum, 4.7 uF, 35V
Capacitor, Mylar Film, 0.047 uF,100V
Capacitor, Ceramic, 0.01 uF, 25V
Capacitor, Mylar Film, 0.22 uF,400V
Capacitor, Mylar Film, 0.01 uF,100V
Bridge Rectifier, Single Phase, Full
Wave, 4A, 50-200V
Bridge Rectifier, 1N4005, Silicon,
600V, 1A
Diode, Zener, 9.1V ±10%, 1W
Bridge Rectifier, Silicon, 1N4005,
600V, 1A
Voltage Regulator, 14-Pin DIP
Connector, 12-Pin
Socket
for Relay
Relay,
DPDT, 6 To 120 VAC, 50/60Hz,
6 To 48 VDC
Relay, SPOT, 24V, 2A
Rectifier, Silicon Controlled
Transistor, GES5817, PNP, T0-18 Case
JFET, 2N5462, P-Cha-nel
Transistor, GES5816, NPN, T0-18 Case
Resistor, 8.2 k Ohm ±5%, 1/4W
Resistor, 27 k Ohm ±5%, 1/4W
Resistor, 10 k Ohm ±5%, 1/4W
Resistor, 220 Ohm ±5%, 1/2W
Resistor, 3.9 k Ohm ±5%, 1/4W
014-2294
014-1084
064-4763
030-4743
000-1044
033-2253
031-1043
239-0003
203-4005
200-0009
203-4005
227-0723
417-1276
270-0031
270-0029
270-0024
237-0006
210-5817
212-5462
211-5816
100-8243
100-2753
100-1053
110-2233
100-3943
QTY.
4
1
1
1
1
1
1
4
1
2
16
1
1
1
2
1
1
2
1
1
1
4
1
1
3
1
1
