Broadcast Electronics 3000 Series - Page 83

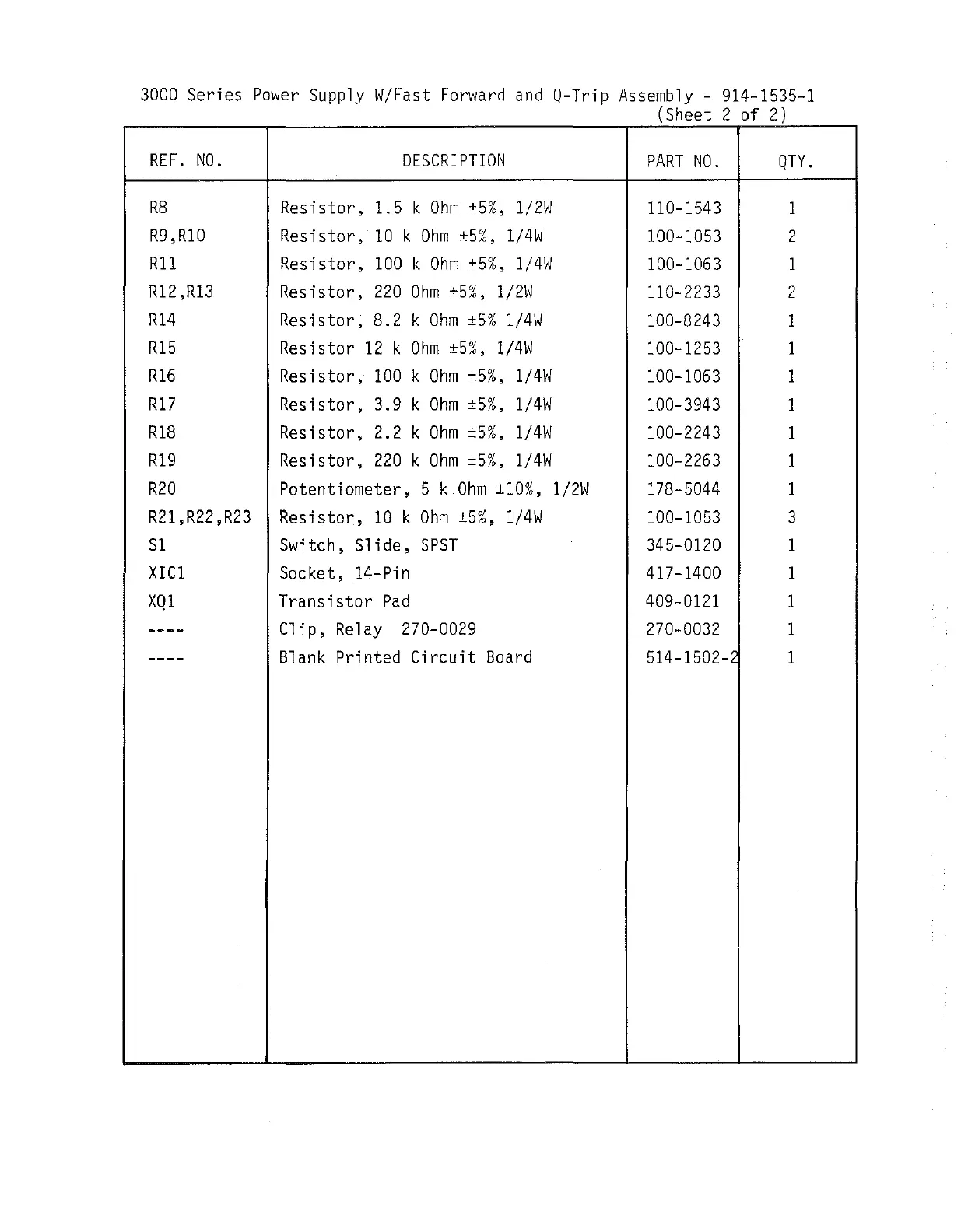

3000 Series Power Supply W/Fast Forward and Q-Trip Assembly - 914-1535-1
(Sheet 2 of 2)
REF. NO. DESCRIPTION
PART NO. QTY.
RB
Resistor,
1. 5 k Ohm ±5%,
1/2W
110-1543 1
R9,R10
Resistor, 10 k Ohm ±5%, 1/4W
100-1053 2
Rll
Resistor, 100 k Ohm ±5%, 1/4W
100-1063 1
R12,R13
Resistor, 220 Ohm ±5%, 1/2W
110-2233 2
R14
Resistor, 8.2 k Ohm ±5% 1/4W 100-8243
1
R15 Resistor 12 k Ohm ±5%, 1/4W
100-1253 1
R16 Resistor, 100 k Ohm ±5%, 1/4W
100-1063 1
R17 Resistor, 3.9
k
Ohm ±5%,
1/4W
100-3943 1
R18 Resistor, 2.2 k Ohm ±5%, 1/4W
100-2243 1
R19 Resistor, 220
k Ohm ±5%,
1/4W 100-2263
1
R20 Potentiometer, 5 k Ohm ±10%, 1/2W 178-5044 1
R21,R22,R23
Resistor, 10 k Ohm ±5%, 1/4W
100-1053 3
S1 Switch, Slide, SPST 345-0120 1
XIC1 Socket, 14-Pin 417-1400 1
XQ1
Transistor Pad 409-0121
1
----
Clip, Relay 270-0029 270-0032
1
----
Blank Printed Circuit Board
514-1502-; 1
