REF. NO.
C1,C3
C4
C6
C7,C8
Cll
C13
C15
C17
C18
C20
C21
C22,C23
C24,C25
C26
C27,C28
C30
C32
C34
C35,C37
C39
C40
C41
CR1
CR2,CR3
CR5,CR6
IC1,IC2
Ll,L3
Q1
Q2
Q4

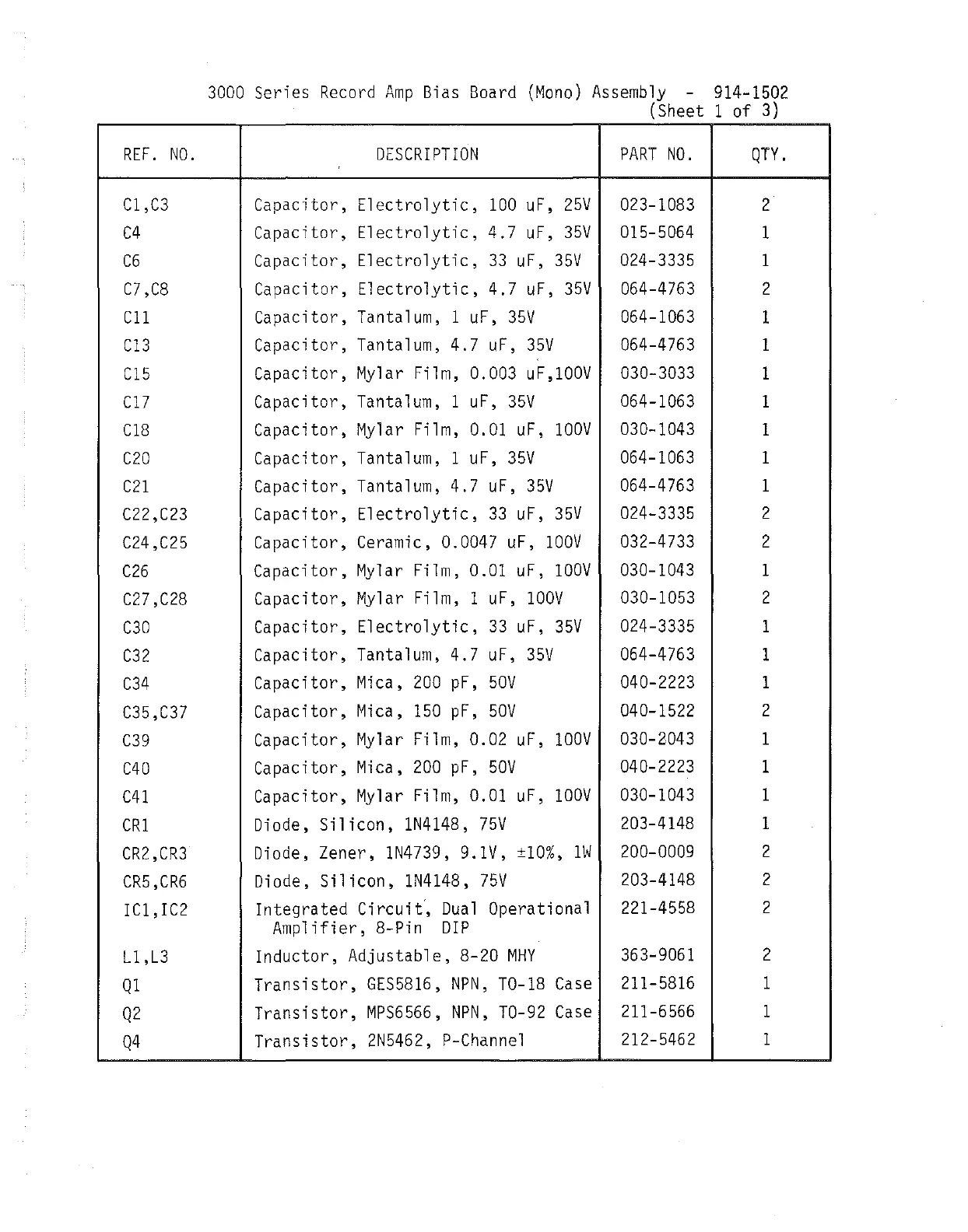

3000 Series Record Amp Bias Board (Mono) Assembly - 914-1502
(Sheet 1
of 3)
DESCRIPTION
'
Capacitor, Electrolytic, 100 uF, 25V
Capacitor, Electrolytic, 4.7 uF, 35V
Capacitor, Electrolytic, 33 uF, 35V
Capacitor, Electrolytic, 4.7 uF, 35V
Capacitor, Tantalum, 1 uF, 35V
Capacitor, Tantalum, 4.7 uF, 35V
Capacitor, Mylar Film, 0.003 uF,100V
Capacitor, Tantalum, 1 uF, 35V
Capacitor, Mylar Film, 0.01 uF, lOOV
Capacitor, Tantalum, 1 uF, 35V
Capacitor, Tantalum, 4.7 uF, 35V
Capacitor, Electrolytic, 33 uF, 35V
Capacitor, Ceramic, 0.0047 uF, 100V
Capacitor, Mylar Film, 0.01 uF, 100V
Capacitor, Mylar Film, 1 uF, lOOV
Capacitor, Electrolytic, 33 uF, 35V
Capacitor, Tantalum, 4.7 uF, 35V
Capacitor, Mica, 200 pF, 50V
Capacitor, Mica, 150 pF, 50V
Capacitor, Mylar Film, 0.02 uF, 100V
Capacitor, Mica, 200 pF, 50V
Capacitor, Mylar Film, 0.01 uF, 100V
Diode, Silicon, 1N4148, 75V
Diode, Zener, 1N4739, 9.1V, ±10%, 1W
Diode, Silicon, 1N4148, 75V
Integrated Circuit, Dual Operational
Amplifier, S-Pin DIP
Inductor, Adjustable, 8-20 MHY
Transistor, GES5816, NPN, T0-18 Case
Transistor, MPS6566, NPN, T0-92 Case
Transistor, 2N5462, P-Channel
PART NO.
023-1083
015-5064
024-3335
064-4763
064-1063
064-4763
030-3033
064-1063
030-1043
064-1063
064-4763
024-3335
032-4733
030-1043
030-1053
024-3335
064-4763
040-2223
040-1522
030-2043
040-2223
030-1043
203-4148
200-0009
203-4148
221-4558
363-9061
211-5816
211-6566
212-5462
QTY.
2
1
1
2
1
1
1
1
1
1
1
2
2
1
2
1
1
1
2
1
1
1
1
2
2
2
2
1
1
1
