Broadcast Electronics 3000 Series - Page 85

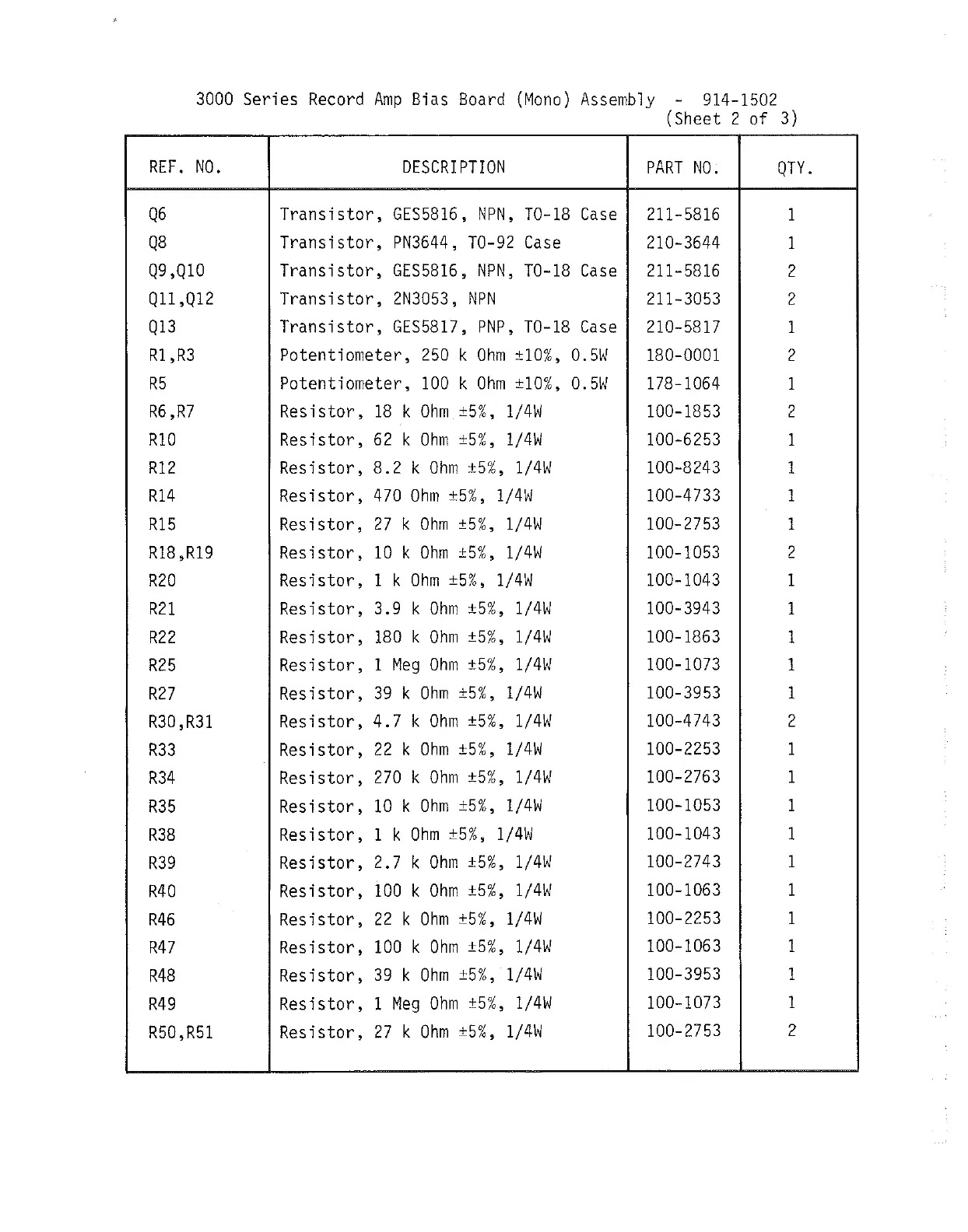

3000 Series Record Amp Bias Board (Mono) Assembly - 914-1502
(Sheet 2 of
3)
REF. NO. DESCRIPTION
PART NO.
QTY.
Q6 Transistor,
GES5816, NPN,
T0-18
Case 211-5816
1
Q8
Transistor,
PN3644, T0-92 Case 210-3644
1
Q9,Q10
Transistor, GES5816, NPN, T0-18
Case 211-5816
2
Qll
,Q12
Transistor, 2N3053, NPN
211-3053
2
Q13
Transistor,
GES5817, PNP, T0-18 Case 210-5817
1
R1,R3 Potentiometer, 250 k Ohm ±10%,
0.5W 180-0001 2
R5
Potentiometer, 100 k Ohm ±10%,
0.5W 178-1064
1
R6 ,R7
Resistor, 18 k Ohm ±5%, 1/4W
100-1853 2
R10
Resistor, 62 k Ohm ±5%, 1/4W 100-6253
1
R12
Resistor, 8.2 k Ohm ±5%, 1/4W 100-8243
1
R14
Resistor, 470 Ohm ±5%, 1/4W 100-4733 1
R15
Resistor, 27 k Ohm ±5%, 1/4W 100-2753 1
R18,R19
Resistor, 10 k Ohm ±5%, 1/4W 100-1053 2
R20
Resistor,
1 k Ohm ±5%, 1/4W
100-1043 1
R21
Resistor, 3.9 k Ohm ±5%, 1/4W 100-3943
1
R22
Resistor, 180 k Ohm ±5%, 1/4W 100-1863
1
R25
Resistor,
1 Meg Ohm ±5%, 1/4W 100-1073
1
R27
Resistor,
39 k Ohm ±5%, 1/4W 100-3953
1
R30,R31 Resistor,
4.7 k Ohm ±5%, 1/4W 100-4743 2
R33
Resistor,
22 k Ohm ±5%, 1/4W 100-2253 1
R34
Resistor,
270 k Ohm ±5%, 1/4W 100-2763 1
R35
Resistor,
10 k Ohm ±5%, 1/4W
100-1053
1
R38
Resistor, 1 k Ohm ±5%, 1/4W
100-1043
1
R39
Resistor, 2.7 k Ohm ±5%, 1/4W
100-2743 1
R40
Resistor,
100 k Ohm ±5%, 1/4W
100-1063
1
R46
Resistor,
22 k Ohm ±5%, 1/4W
100-2253 1
R47 Resistor,
100 k Ohm ±5%, 1/4W
100-1063
1
R48 Resistor,
39 k Ohm ±5%, 1/4W 100-3953 1
R49
Resistor,
1 Meg Ohm ±5%, 1/4W 100-1073
1
R50,R51 Resistor,
27 k Ohm ±5%, 1/4W
100-2753
2
