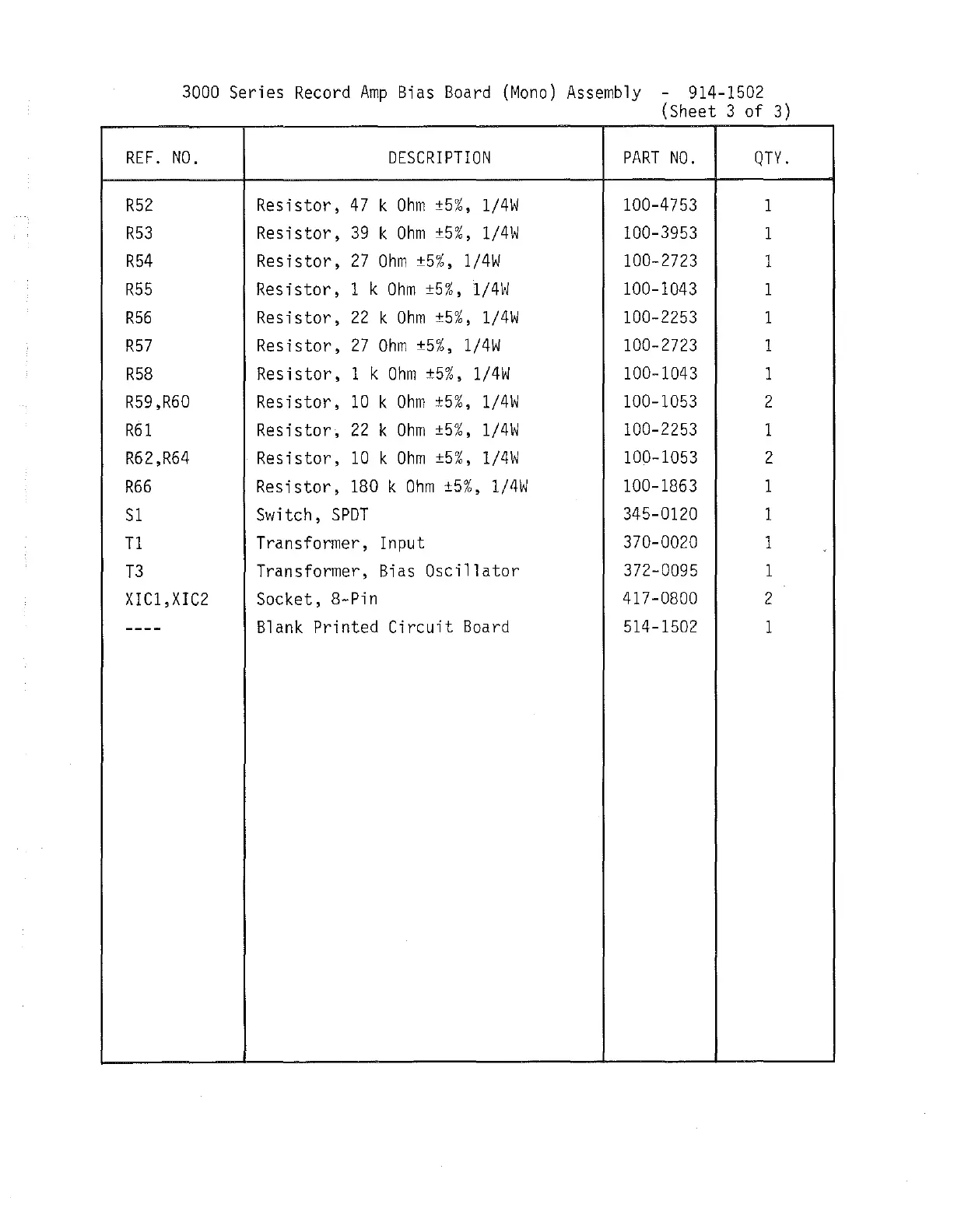

3000 Series Record Amp Bias Board (Mono) Assembly - 914-1502
(Sheet 3 of 3)
REF. NO. DESCRIPTION PART NO. QTY.
R52
Resistor,
47
k Ohm ±5%, 1/4W 100-4753
1
R53 Resistor, 39 k Ohm ±5%, 1/4W 100-3953
1
R54
Resistor, 27 Ohm ±5%, 1/4W 100-2723
1
R55 Resistor,
1 k Ohm ±5%, 1/4W 100-1043
1
R56
Resistor, 22 k Ohm ±5%, 1/4W 100-2253
1
R57
Resistor, 27 Ohm ±5%, 1/4W 100-2723 1
R58
Resistor, 1 k Ohm ±5%, 1/4W 100-1043
1
R59,R60
Resistor,
10 k Ohm ±5%,
1/4W
100-1053 2
R61 Resistor,
22 k Ohm ±5%, 1/4W 100-2253
1
R62 ,R64 Resistor,
10 k Ohm ±5%, 1/4W
100-1053
2
R66 Resistor,
180 k Ohm ±5%, 1/4W 100-1863 1
S1
Switch, SPOT
345-0120
1
Tl
Transformer, Input
370-0020
1
T3
Transformer, Bias Oscillator
372-0095
1
XIC1,XIC2
Socket, 8-Pin 417-0800 2
----
Blank Printed Circuit Board 514-1502
1
